Description:

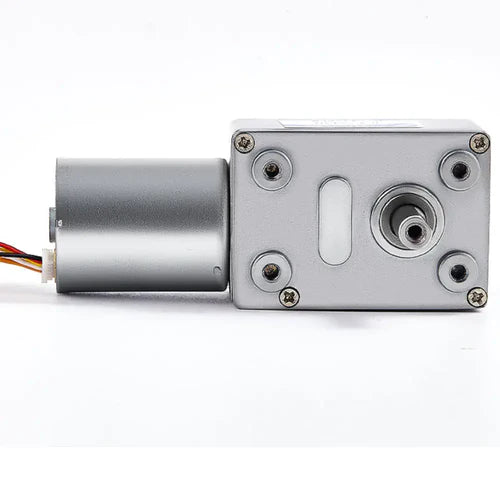

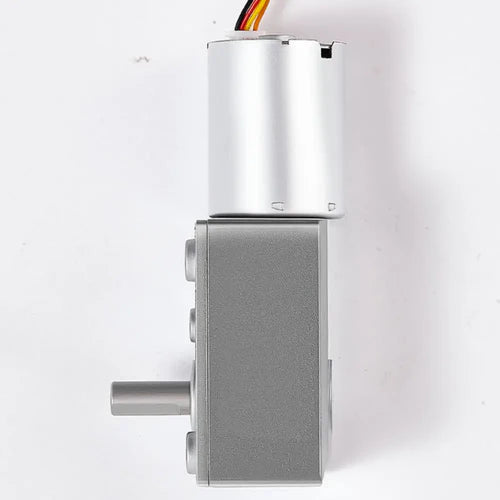

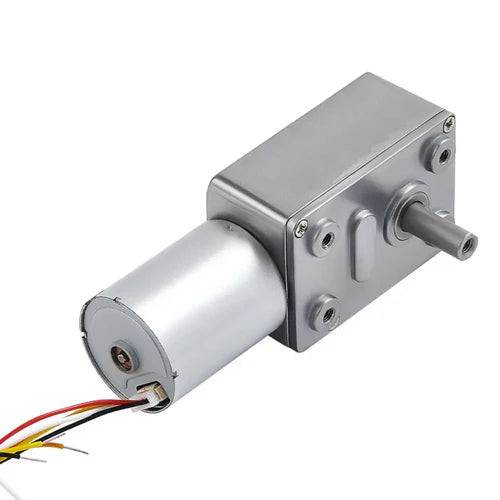

The DC Brushless Worm Gear Motor 2430BL is a high-performance motor designed for robotic applications, offering precision, durability, and efficiency in a compact package. Powered by a 12V DC supply, this motor delivers 6 RPM no-load speed and 25 Kg.cm rated torque, making it ideal for low-speed, high-torque robotic operations.
Key Features:
-
All-Metal Gears: Engineered for high temperature and abrasion resistance, ensuring extended durability and consistent performance.
-
Pure Copper Wire Core Rotor: Precision winding technology enhances motor power by 30%, improving efficiency and torque output.
-
Micro Turbine Worm Gear Design: Reduces noise while providing high torque; the wiring configuration allows easy rotation direction changes.
-
Anti-Stall Performance: High-accuracy ball gears prevent teeth from sticking, ensuring smooth operation even under heavy load.
-
Robust Construction: Wear-resistant, rust-resistant materials extend the motor’s service life, ideal for demanding robotic environments.
Specifications:
-
Model: 4632WG 2430BL 1000 12V
-
Voltage: 12V DC
-
Gear Ratio: 1:1000
-
No-Load Speed: 6 RPM
-
No-Load Current: 0.12 A
-
Rated Speed: 4 RPM
-
Rated Current: 0.6 A
-
Rated Torque: 25 Kg.cm
-
Rated Power: 7.2 W
-
Stall Torque: 136 Kg.cm
-
Stall Current: 2 A
Dimensions:
-
Motor: 24.3 mm (Diameter) x 30.8 mm (Length)
-
Gearbox: 46 mm (Diameter) x 32 mm (Length) x 22 mm (Height)
-
Shaft: 6 mm (Diameter) x 14 mm (Length), D-shaped, with M3 screw hole
Compact, reliable, and high-performing, the 2430BL DC Brushless Worm Gear Motor is perfect for robots requiring precision, long service life, and superior torque at low speeds.
