Product Description

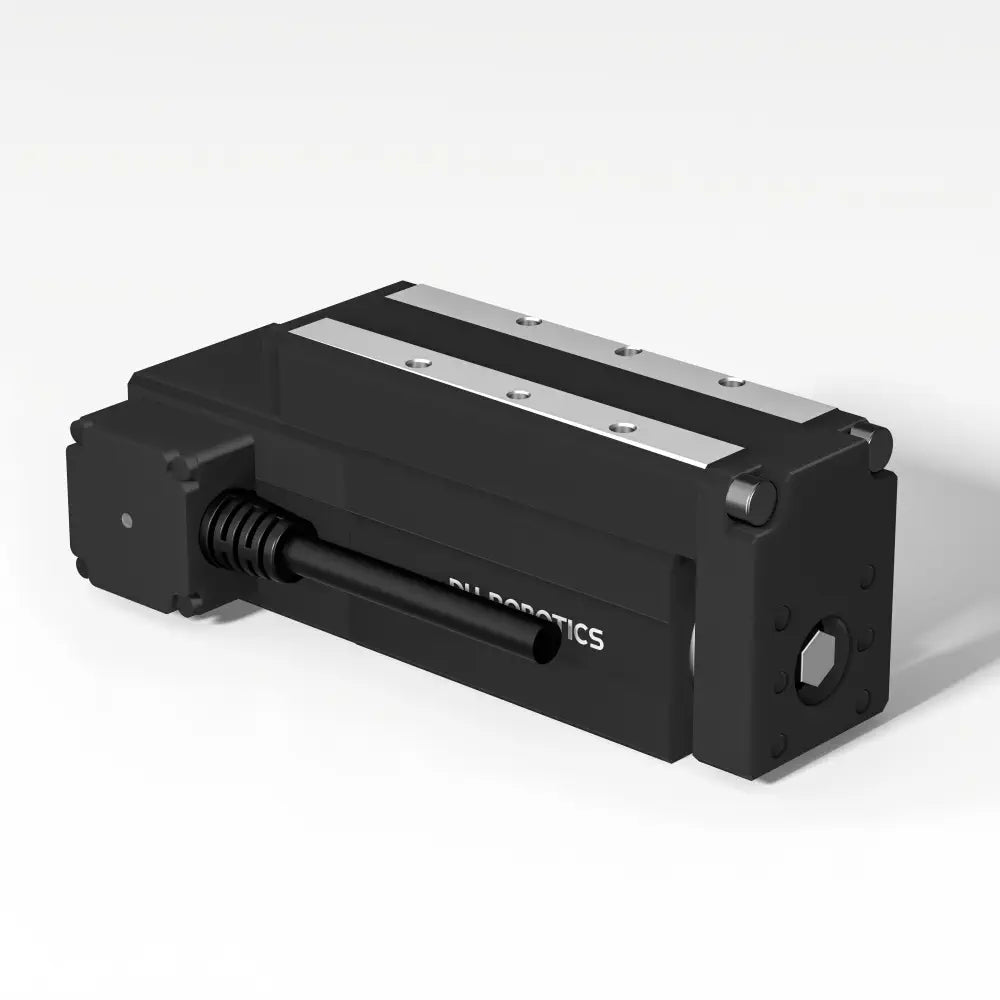

The DH-Robotics MCEA-3G Miniature Table-Type Electric Cylinder is a compact, high-precision electric linear actuator designed for robotic automation, precision positioning, and intelligent manufacturing systems. Featuring a high-performance servo motor, precision ground screw, and programmable control parameters, it delivers fast, stable, and repeatable linear motion in a compact footprint.
With an ultra-slim structure and high energy density, the MCEA-3G supports precise positioning, pushing, pulling, pressing, and high-speed motion control. Its intelligent feedback system and multiple motion modes make it ideal for applications requiring accuracy, reliability, and flexible control in limited installation space.
Key Features
More Features

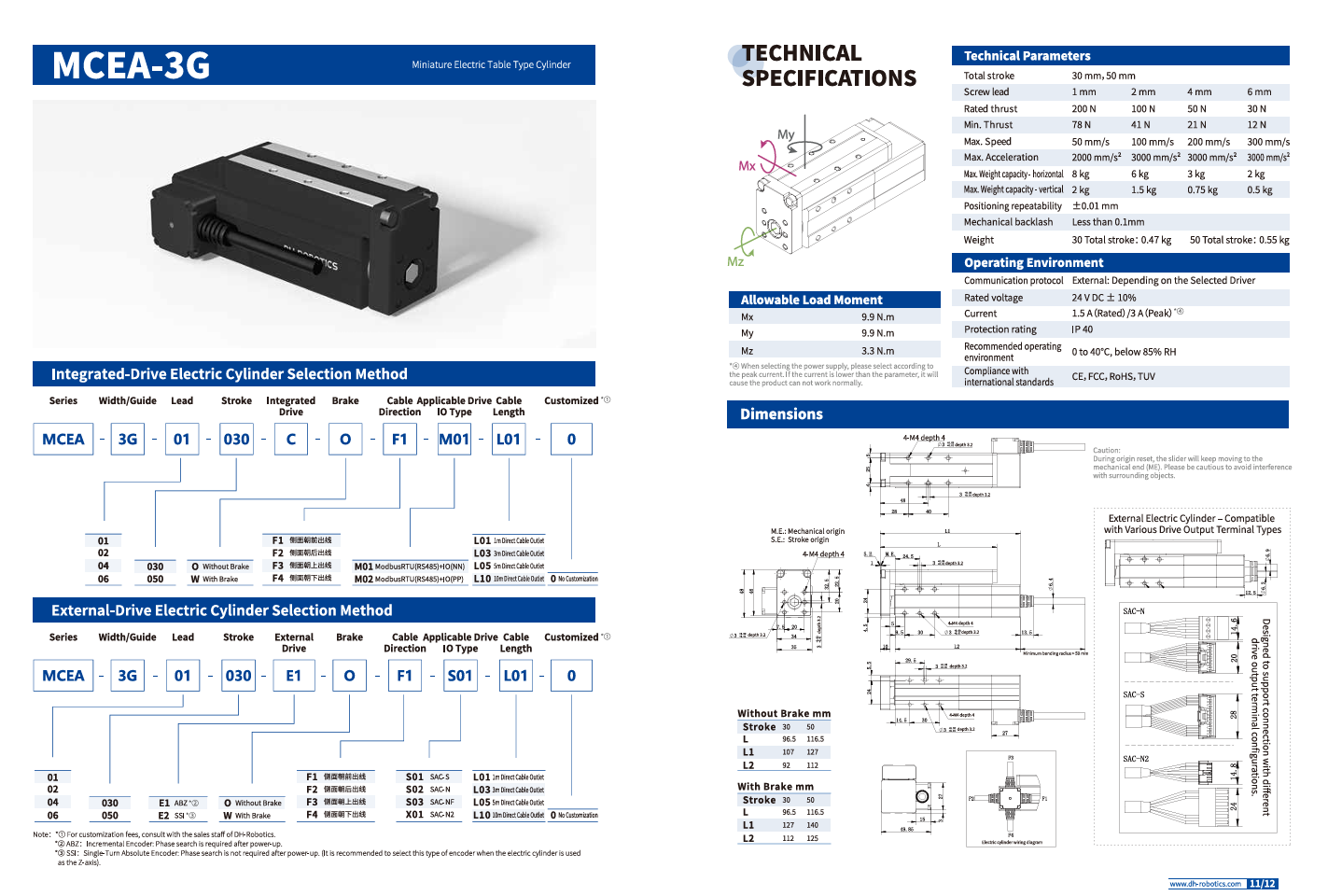

Specifications
| Parameter | Value |
|---|---|
| Product Series | MCEA |
| Model | MCEA-3G-C-O-F1-M01-L01-0 |
| Type | Miniature Table-Type Electric Cylinder |
| Drive System | Servo Motor + Precision Screw |
| Max Speed | Up to 330 mm/s |
| Repeat Positioning Accuracy | ±0.01 mm |
| Control Mode | Position / Push / Press |
| Programmability | Position, Speed, Thrust |
| Protection Rating | IP40 |
| Certifications | CE, FCC, RoHS, TÜV |
Applications
The MCEA-3G electric cylinder is widely used in:
-
Robotics and intelligent automation
-
Precision positioning systems
-
Semiconductor and electronics assembly
-
Laboratory automation and testing equipment
-
Press-fit, insertion, and micro-assembly tasks
Package Includes
