Technical Specifications
| Parameter | Value |
|---|---|
| Model |

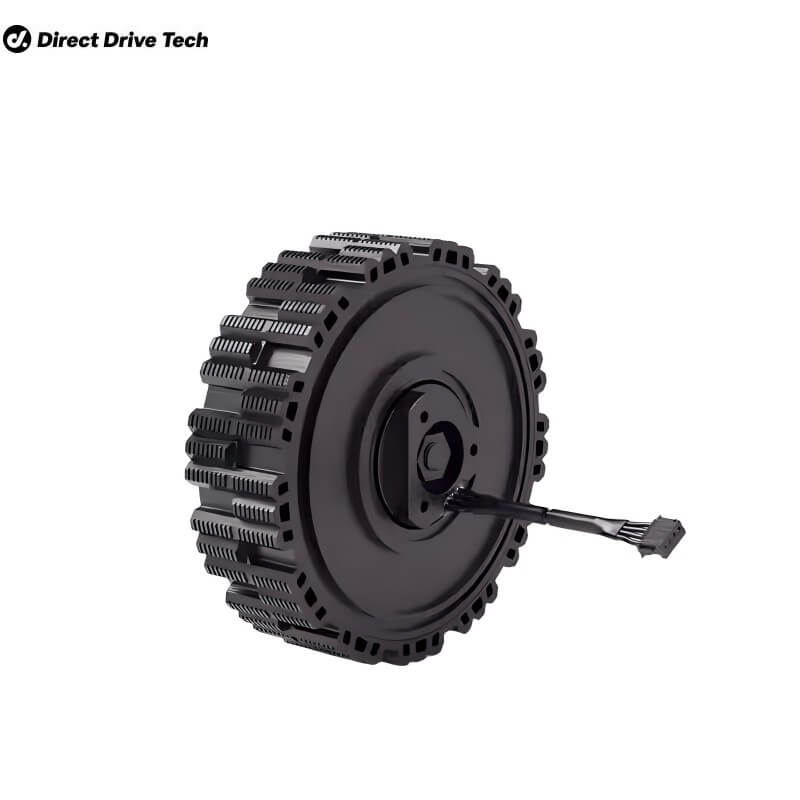

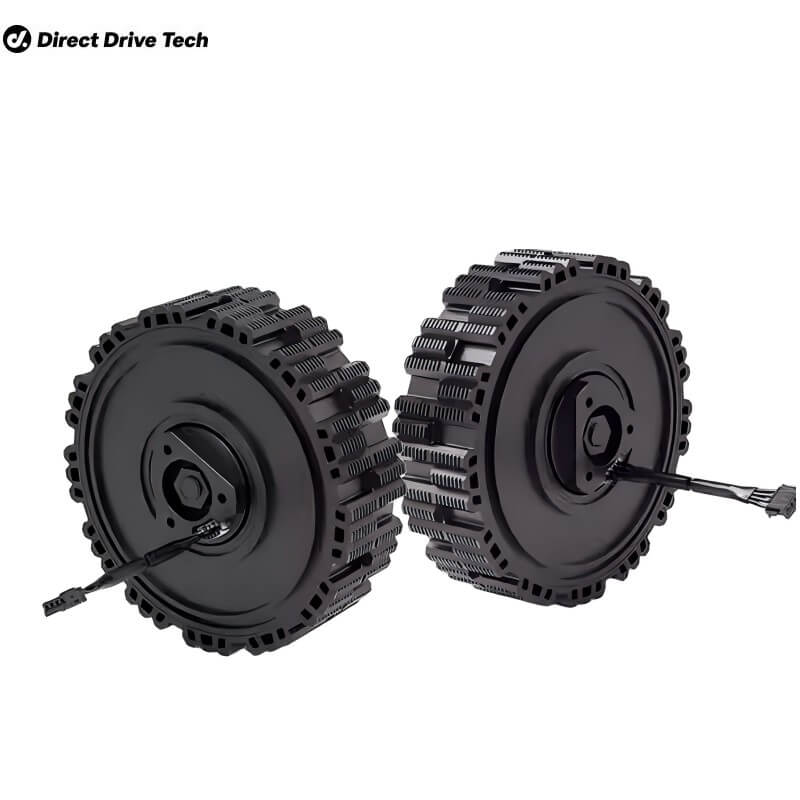

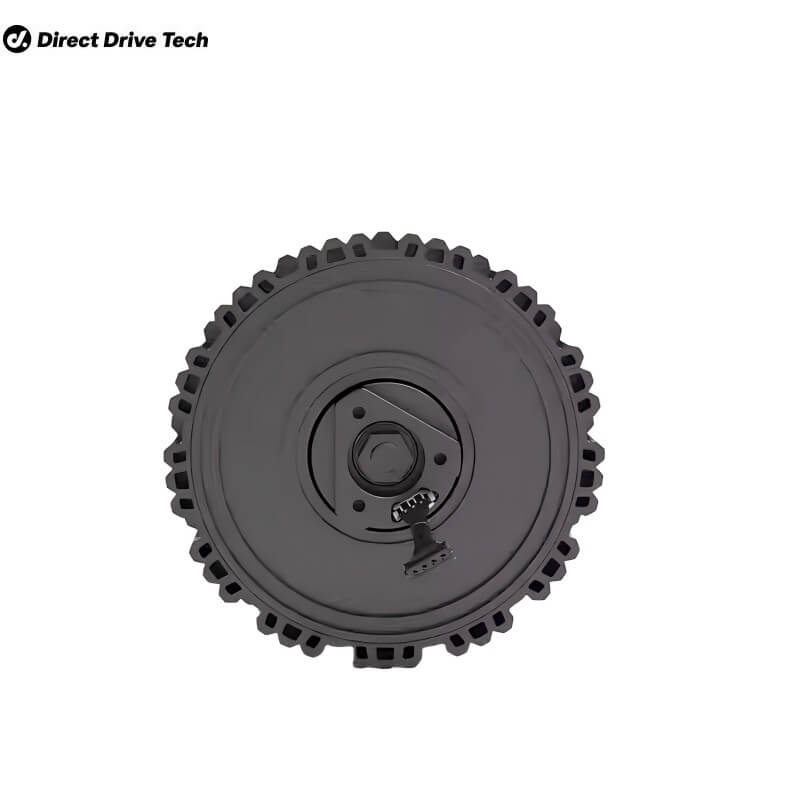

M0603B_224
|
| No-load Speed | 210±15rpm |
| No-load Current | ≤0.15A |
| Rated Speed | 98rpm |
| Rated Torque | 0.25Nm |
| Rated Current | 0.5A |
| Rated Voltage | 14.4VDC |
| Stall Torque | 0.85Nm |
| Stall Current | ≤3A |
| Encoder Resolution | 12-bit |
| Operating Voltage Range | 10.0~28.0VDC |
| Motor Weight | 260g |
| Protection Level |
IPX4 (Reference standard GB/T4942.1-2006, default sealed state of base mounting surface) |
| Noise Level |
≤48db (Reference standard GB/T 10069.1) |
