Description

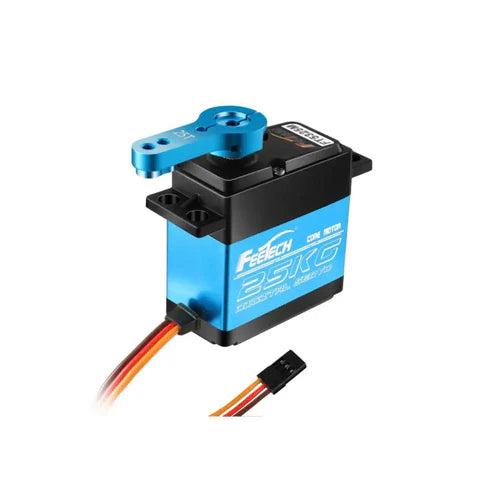

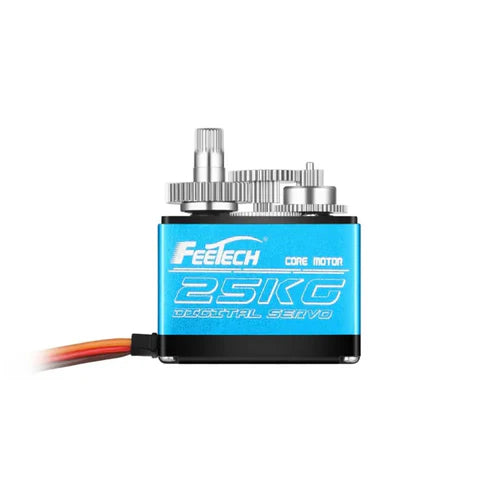

The FeeTech FT5325M 180 Degrees Digital Servo is a high-performance servo motor designed for robotics, RC vehicles, and precision mechanical applications. Engineered with a PA + Aluminium case, steel gears, and ball bearings, this servo offers exceptional strength, durability, and stability under demanding conditions.
With an operating voltage range of 6V – 7.4V, it delivers a peak stall torque of 25kg.cm @ 7.4V, making it ideal for heavy-duty applications. The digital amplifier ensures precise positioning, while the 180° continuous rotation capability provides versatile motion control.

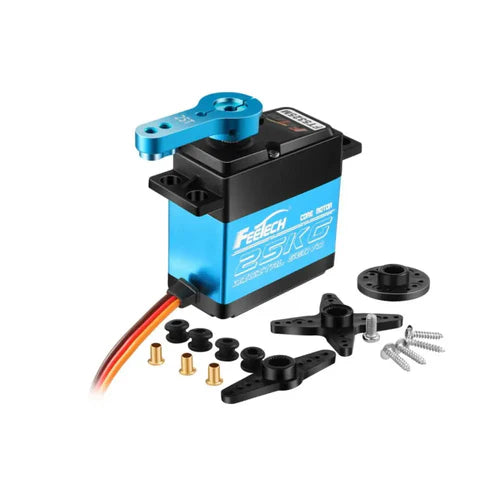

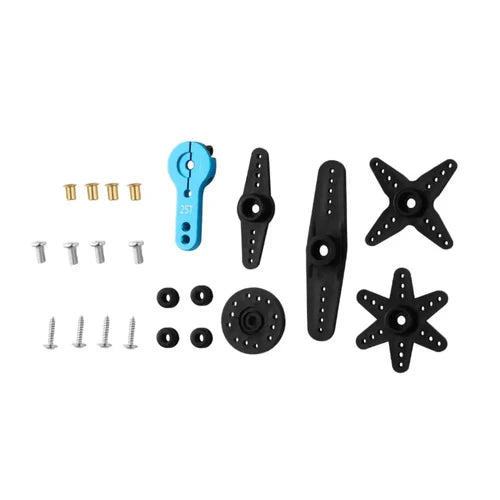

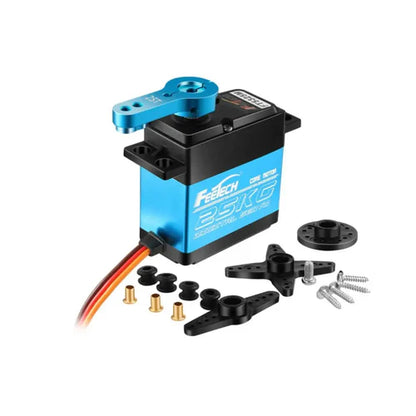

The FT5325M is equipped with a 25T / 5.9 mm horn gear spline and plastic POM horns, offering secure and reliable connectivity. It operates with high efficiency and low idle current, ensuring stable performance across a wide range of temperatures.
Key Features
• High Torque: Up to 25kg.cm @ 7.4V stall torque
• Precision Control: Digital comparator amplifier with pulse width modification

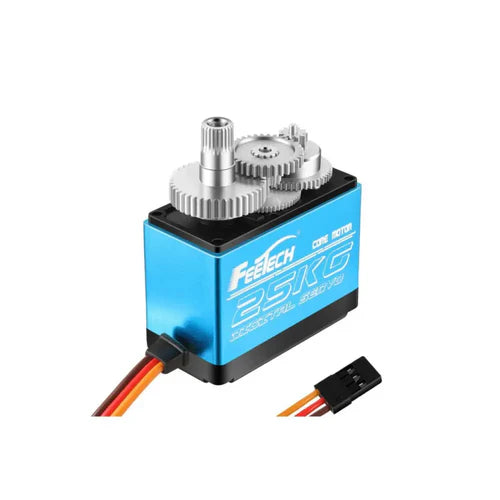

• Durable Construction: Steel gear train and PA + Aluminium casing
• Smooth Operation: Dual ball bearings for reduced friction and extended life
• Wide Compatibility: 25T / 5.9 mm spline with plastic POM servo horns
• 180° Continuous Rotation: Versatile for robotics and automation projects
• Stable Performance: Low idle current and efficient core motor design
Specifications
• Operating Voltage Range: 6V – 7.4V
• Peak Stall Torque: 25 kg.cm @ 7.4V
• Rated Torque: 8.3 kg.cm @ 7.4V
• No-load Speed: 0.151 sec / 60° @ 7.4V
• Idle Current (stopped): 6 mA @ 7.4V
• Running Current (no load): 120 mA @ 7.4V
• Stall Current: 3.5 A @ 7.4V
• Motor Type: Core motor
• Gear Type: Steel gears
• Bearings: Ball bearings
• Horn Gear Spline: 25T / 5.9 mm
• Horn Type: Plastic, POM
• Amplifier Type: Digital comparator
• Pulse Width Range: 900 – 2100 μsec
• Stop Position: 1500 μsec
• Running Degree: 180° Continuous Rotation
• Dead Band Width: ±25 μsec
• Rotation Direction: Counterclockwise (1500–2000 μsec)
• Case Material: PA + Aluminium
• Storage Temperature Range: –30 ~ 80 °C
• Operating Temperature Range: –20 ~ 60 °C
• Dimensions: 55 x 20 x 43 mm (L x W x H)
• Connector Wire Length: 30 cm
• Weight: 67 ± 1 g
What’s Included
• 1 x FeeTech 180 Degrees Digital Servo 7.4V 25kg/cm FT5325M
