Product Description:

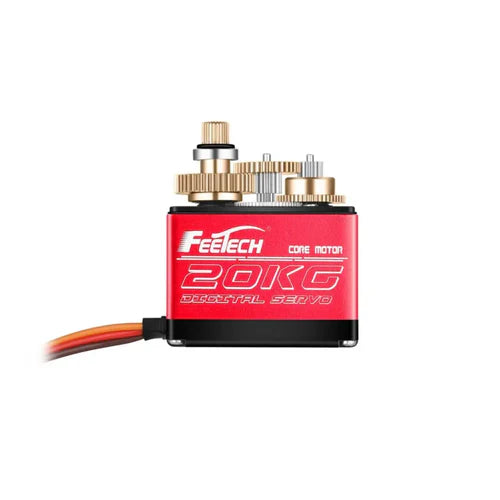

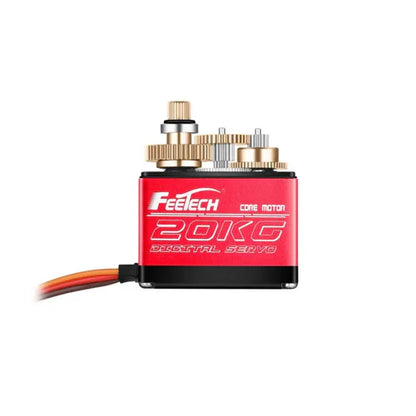

The FeeTech FT5320M is a high-performance 180° digital servo designed for robotics, RC models, and precision automation. Its PA+Aluminum case and copper gears provide durability and high torque performance. Ball bearings ensure smooth operation and long-lasting reliability. The servo operates at 6–7.4 V with a pulse width range of 500–2500 μs, providing precise positioning and 180° rotation. This digital servo is ideal for robotic arms, RC cars, boats, airplanes, and other applications that require precise, high-torque control.
Key Specifications:

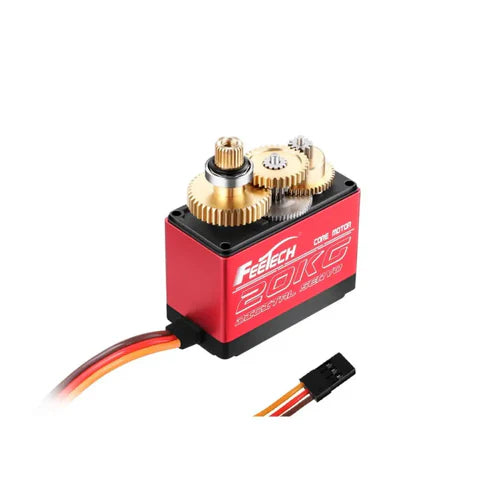

• Gear type: Copper Gear
• Limit angle: No limit
• Bearing: Ball bearings
• Horn gear spline: 25T/5.9 mm

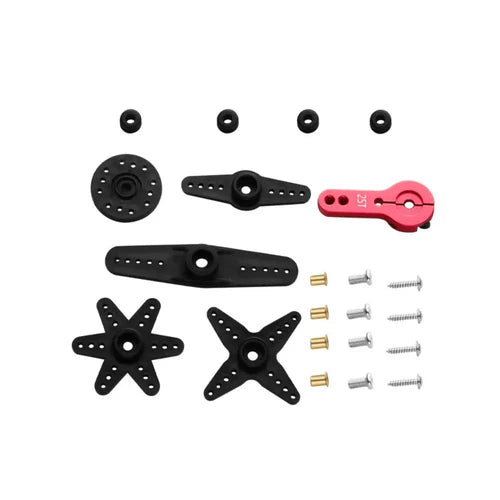

• Horn Type: Plastic
• Case: PA+Aluminum
• Motor: Core Motor
• Operating Voltage Range: 6–7.4 V
• Idle current (stopped): 6 mA @ 7.4 V
• No-load speed: 0.151 sec / 60° @ 7.4 V
• Running current (no load): 120 mA @ 7.4 V
• Peak stall torque: 20 kg.cm @ 7.4 V
• Rated torque: 6.5 kg.cm @ 7.4 V
• Stall current: 3 A @ 7.4 V
• Command signal: Pulse width modification
• Amplifier type: Digital comparator
• Operating temperature range: -20~60 °C
• Weight: 67±1 g
• Connector wire: 30 cm
• Dimensions: 55 × 20 × 43 mm (L × W × H)

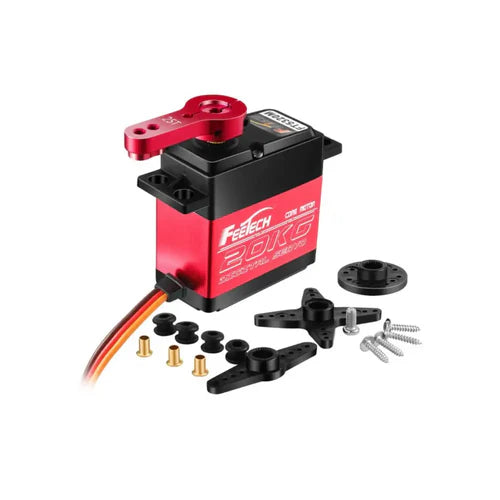

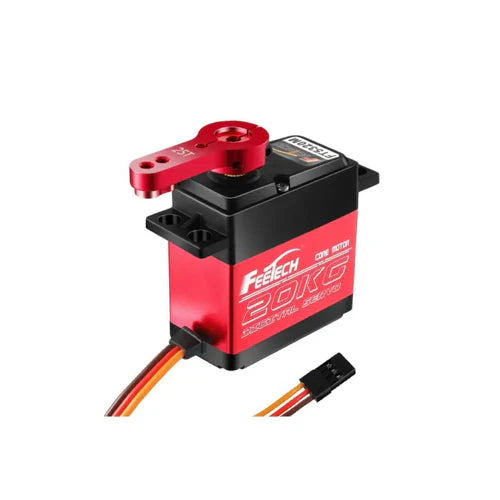

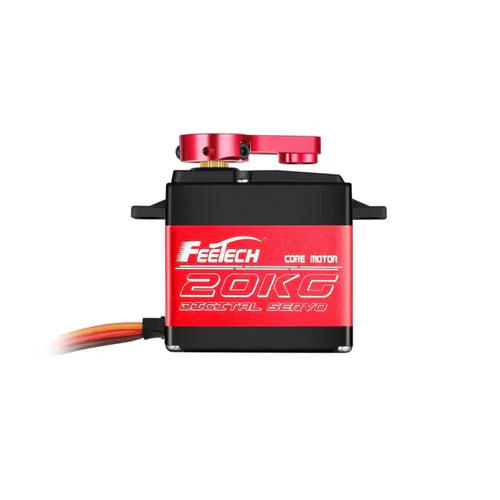

• Included: 1 × FeeTech 180° Digital Servo 7.4V 20kg/cm FT5320M
