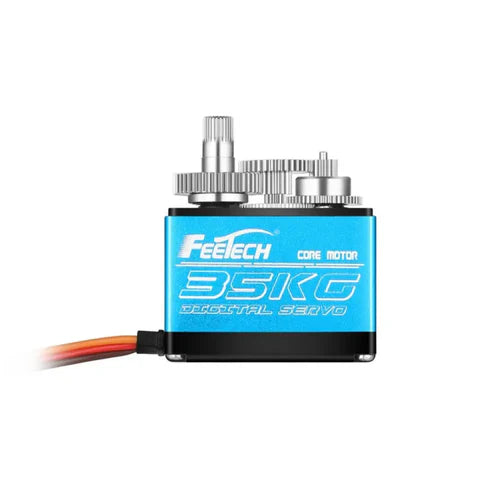

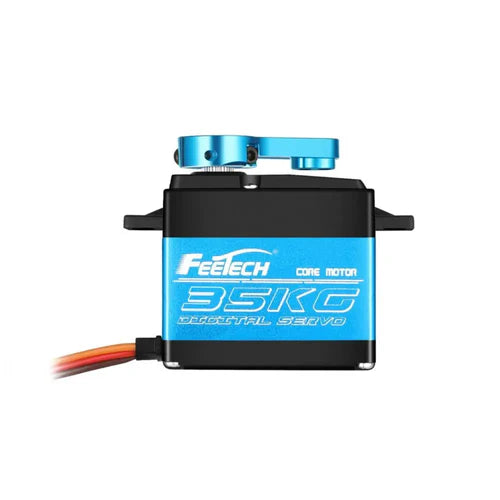

FeeTech FT5330M 180° High Torque Digital Servo 7.4V 35kg/cm with Steel Gears & PA+Aluminum Case

FeeTech FT5330M 180° High Torque Digital Servo 7.4V 35kg/cm with Steel Gears & PA+Aluminum Case

Regular price $29.99 USD
Regular price Sale price $29.99 USD
Sale Sold out

Product Description:
The FeeTech FT5330M 180° Digital Servo delivers exceptional performance with high torque and precision, ideal for robotics, RC vehicles, and automation projects. Featuring a robust PA+Aluminum case and steel gears, this servo combines strength and durability with smooth operation.

Designed for demanding applications, the FT5330M operates on a voltage range of 6–7.4V, with a pulse width range of 500–2500 μsec, providing precise control and reliable response. Its ball bearing system ensures low friction and long-lasting stability, while the plastic POM horn with a 25T / 5.9 mm spline enables secure attachments and compatibility with standard servo linkages.

Key Features:

  • High Torque: 35.5 kg·cm peak torque @ 7.4V, 11.8 kg·cm rated torque

  • Speed: 0.192 sec/60° @ 7.4V

  • Rotation: 180° operational, with 220° continuous rotation capability

  • Digital Precision: Equipped with a digital comparator amplifier and ≤4 μsec deadband for accurate positioning

  • Durable Design: Steel gears, PA+Aluminum case, and ball bearings for long service life

  • Temperature Range: Operating -20–60°C, storage -30–80°C

  • Lightweight: 67 ±1 g, compact size of 55 x 20 x 43 mm

Technical Details:

  • Motor Type: Core motor

  • Idle Current (stopped): 6 mA @ 7.4V

  • Running Current (no load): 180 mA @ 7.4V

  • Stall Current: 3.9 A @ 7.4V

  • Command Signal: Pulse width modification

  • Stop Position: 1500 μsec

  • Rotation Direction: Counterclockwise (1500–2000 μsec)

  • Connector Wire: 30 cm

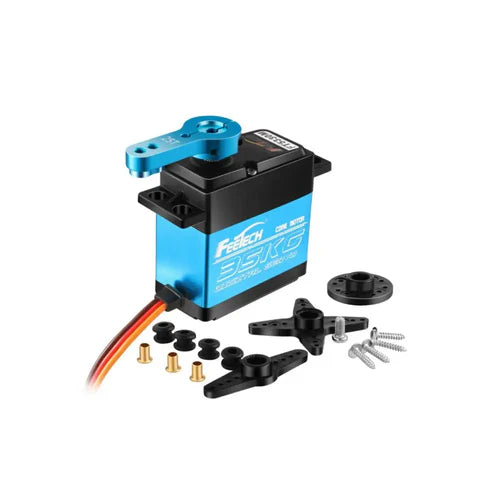

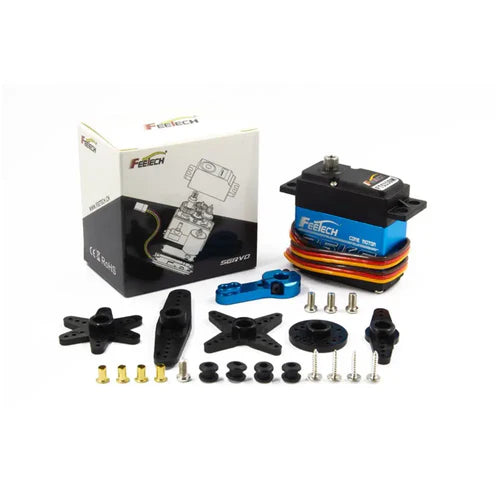

Package Includes:
1 × FeeTech FT5330M 180° Digital Servo 7.4V 35kg/cm

With its high torque, steel gears, and precise digital control, the FeeTech FT5330M is perfect for high-demand projects requiring reliability, accuracy, and long-lasting performance.
