Product Description:
The FeeTech FT6325M 360 Degrees Digital Servo is a high-performance, full-rotation servo designed for robotics, RC vehicles, and precision automation applications. With a robust PA+Aluminum case, steel gears, and ball bearings, this servo ensures durability, smooth operation, and long-lasting performance.
Key Features:
-
Full 360° Rotation: Operates continuously without angle limits, making it ideal for continuous motion applications.
-
High Torque: Peak stall torque of 25 kg·cm at 7.4V, delivering powerful and reliable performance.
-
Digital Precision: Features a digital comparator amplifier with pulse width control (500–2500 μs), dead band width ≤4 μs, and smooth directional rotation.
-

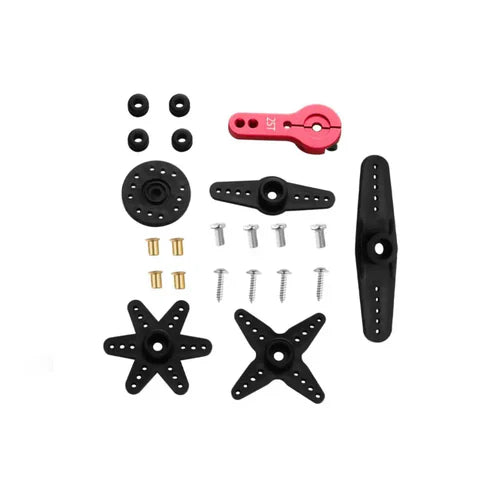

Durable Construction: Steel gears with ball bearings reduce wear and enhance lifespan. Plastic POM horn with 25T/5.9mm spline ensures secure and precise attachment.
-
Core Motor Performance: No-load speed of 0.151 sec/60° at 7.4V; stall current 3.5A at 7.4V; rated torque 8.3 kg·cm.
-
Voltage Flexibility: Operates efficiently within 6–8.4V. Idle current is only 6 mA @ 7.4V.
-
Compact Dimensions: Motor 24.3 × 30.8 mm; gearbox 46 × 32 × 22 mm; overall size 55 × 20 × 43 mm (L×W×H); shaft 6 × 14 mm D-shaped with M3 screw hole.
-
Operating & Storage Temperature: Safe operation from -20 to 60 °C and storage from -30 to 80 °C.
-
Lightweight: Weighs just 67 g ±1 g for easy integration into various projects.
Included in the Package:
-
1 × FeeTech FT6325M 360° Digital Servo 7.4V 25kg/cm
Applications:
Perfect for robotics, RC cars, planes, boats, and other projects requiring precise 360° continuous rotation control.
