Description:

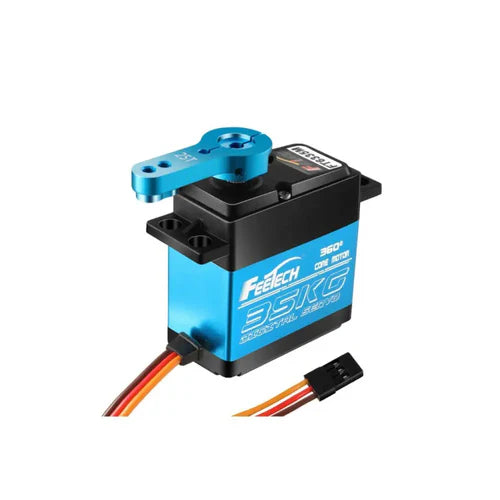

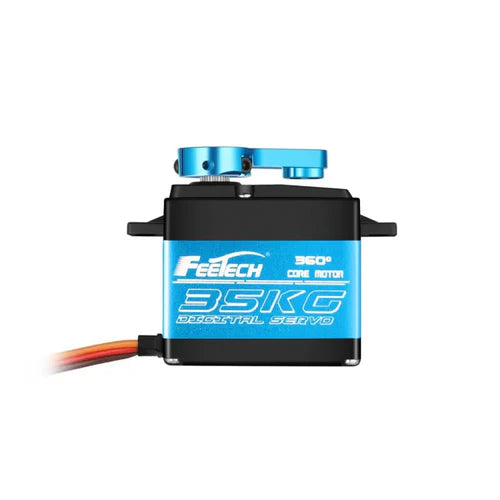

The FeeTech 360 Degrees Digital Servo FT6335M is a high-performance, full-rotation servo designed for robotics, automation, and RC applications requiring precision and durability. With a peak torque of 35 kg/cm at 7.4V, this servo delivers reliable power for heavy-duty tasks. Its 360° continuous rotation capability allows for versatile movement without angle limitations, making it ideal for advanced robotic arms, tracked vehicles, and rotating platforms.

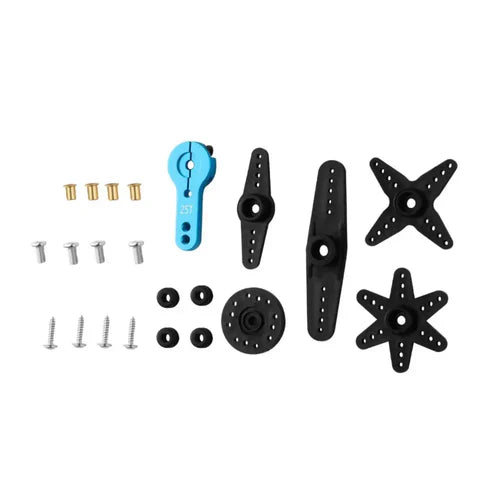

Built with steel tooth gears, ball bearings, and a durable PA+Aluminum case, the FT6335M ensures long-lasting performance and excellent mechanical stability. The servo horn is made of POM plastic with a 25T/5.9mm spline, providing secure attachment options. Controlled via pulse width modulation (500–2500 μs), it operates smoothly with a digital comparator amplifier for precise movement.
Key Features:
-
Continuous 360° rotation with no angle limits
-
High torque: 35.5 kg.cm peak, 11.8 kg.cm rated at 7.4V
-

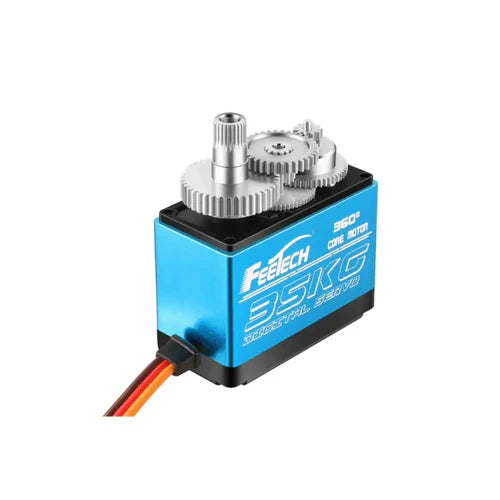

Steel gear train with long-lasting ball bearings
-
Durable PA+Aluminum case with POM plastic horn
-
Operating voltage: 6–7.4 V
-
Digital control with pulse width modulation (500–2500 μs)
-
Compact size: 55 × 20 × 43 mm (L × W × H)
-
Connector wire length: 30 cm
-
Operating temperature: -20°C to 60°C
Performance:
-
No-load speed: 0.192 sec/60° at 7.4V
-
Idle current: 6 mA at 7.4V
-
Running current (no load): 180 mA at 7.4V
-
Stall current: 3.9 A at 7.4V
-
Dead band width: ≤4 μs
-
Rotating direction: Counterclockwise (1500–2000 μs)

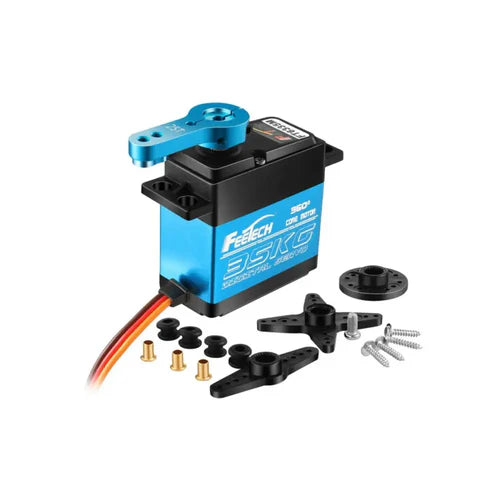

Package Includes:
1 × FeeTech 360 Degrees Digital Servo FT6335M (7.4V, 35kg/cm)
This high-torque, full-rotation digital servo is perfect for precise robotic motion, RC vehicles, and any project requiring durable, reliable continuous rotation servos.
