Description

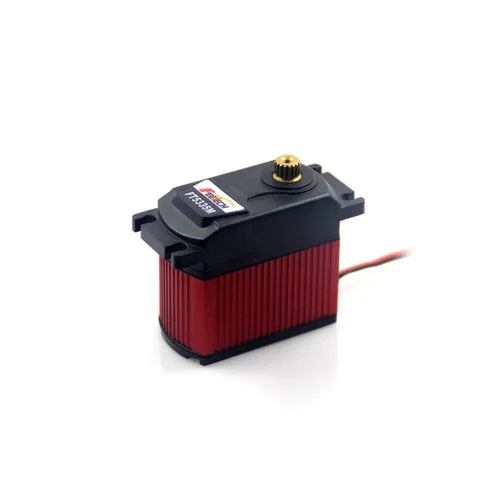

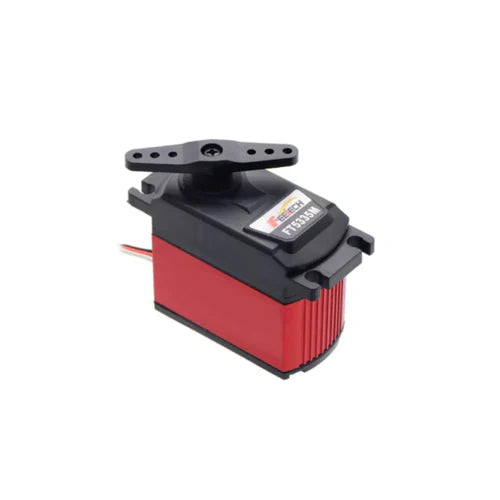

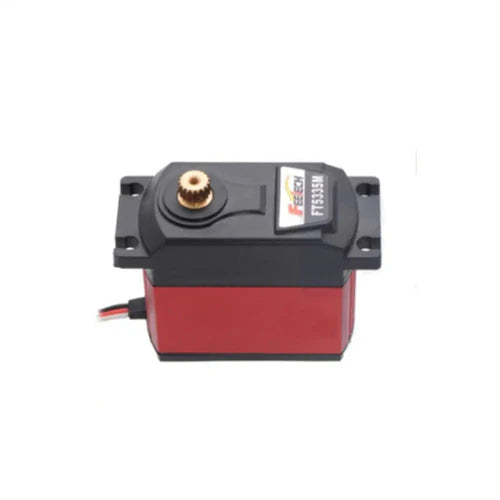

The FeeTech FT5335M High Voltage Digital Servo delivers outstanding torque and precise motion control for demanding robotics and RC applications. With an impressive 40.5 kg·cm stall torque and a durable metal gear train, it provides exceptional reliability and long-term stability.
Constructed from engineering plastics and aluminum, the FT5335M features a core motor, dual ball bearings, and 25T (5.8 mm) horn spline for smooth and accurate response. Its pulse width modulation (PWM) control and wide operating voltage (6–8.4 V) make it ideal for robotic arms, humanoid robots, RC vehicles, and automation projects that require high torque and precision.
Key Features
-
High-voltage operation up to 8.4 V with 40 kg·cm torque
-
Full metal gear train ensures strength and durability
-
Dual ball bearings for stable and smooth motion
-
Precise control with PWM and analog amplifier
-
Wide temperature range for various environments
-
Compatible with 25T servo horns
-
180° rotation limit (120° control range)
-
Ideal for high-torque robotic joints and RC models

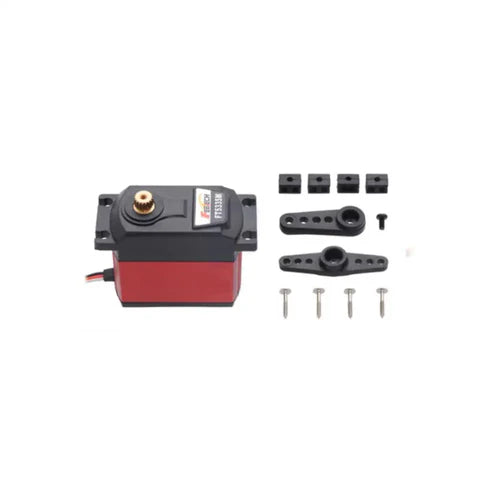

What’s Included
-
1 × FeeTech High Voltage Digital Servo FT5335M
-

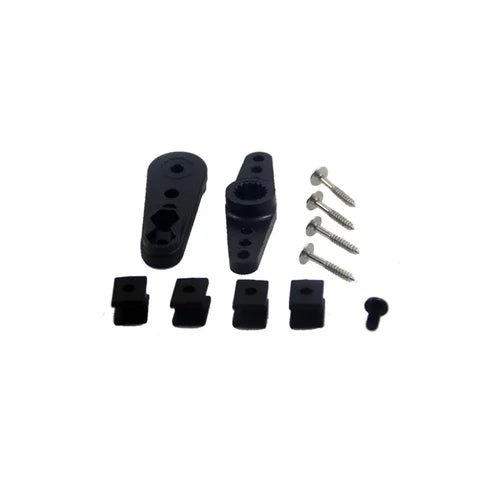

1 × Plastic POM Servo Horn
-
1 × Connector Wire (300 mm ± 5 mm)
Specifications
| Item | Specification |
|---|---|
| Model | FT5335M |
| Operating Voltage Range | 6 – 8.4 V |
| No-Load Speed | 0.18 sec / 60° @ 6 V |
| Running Current (No Load) | 280 mA @ 6 V |
| Stall Torque | 40.5 kg·cm @ 6 V |
| Rated Torque | 13.5 kg·cm @ 6 V |
| Stall Current | 2400 mA @ 6 V |
| Gear Type | Metal Gears |
| Motor Type | Core Motor |
| Bearing Type | 2 × Ball Bearings |
| Limit Angle | 180° |
| Effective Control Range | 120° (900–2100 µsec) |
| Command Signal | Pulse Width Modulation (PWM) |
| Amplifier Type | Analog Comparator |
| Pulse Width Range | 900 – 2100 µsec |
| Neutral Position | 1500 µsec |
| Dead Band Width | 2 µsec |
| Rotation Direction | CW (1500 → 900 µsec), CCW (1500 → 2100 µsec) |
| Horn Gear Spline | 25T (5.8 mm) |
| Horn Type | Plastic (POM) |
| Case Material | Engineering Plastics + Aluminum |
| Splash Water Resistance | No |
| Operating Temperature Range | −15 °C to 70 °C |
| Storage Temperature Range | −30 °C to 80 °C |
| Dimensions (L × W × H) | 62.8 × 32.5 × 55.9 mm |
| Connector Wire Length | 300 mm ± 5 mm |
| Weight | 178 g ± 0.2 g |
