Description

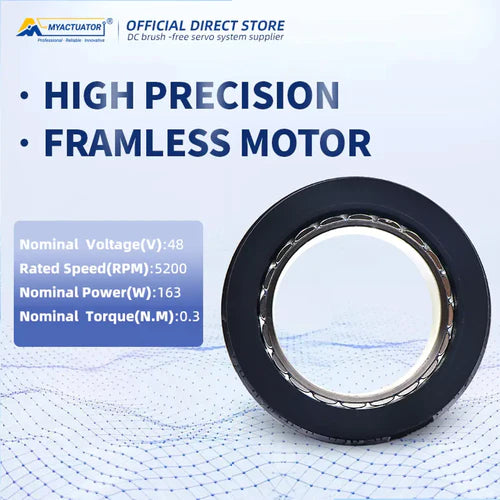

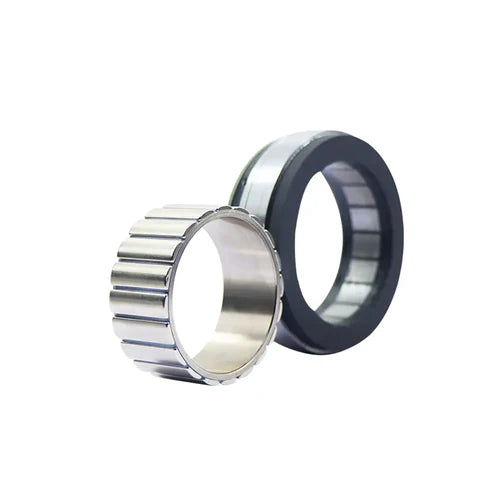

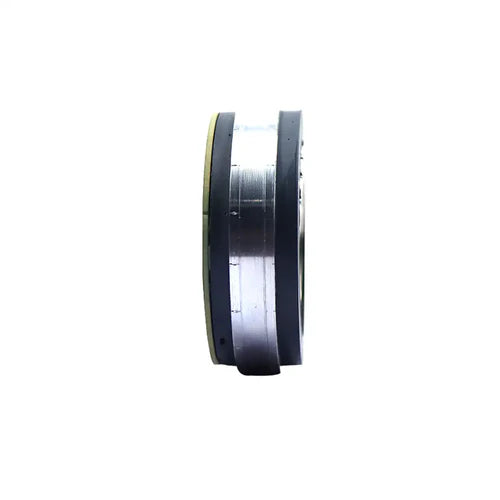

The Frameless Torque Motor FL-50-08 Equipped with Hall Sensor is a high-performance inner rotor torque motor designed for robotic arms, automation systems, and precision motion control. It features a large center hole, high torque density, smooth rotation, and excellent thermal stability, making it ideal for compact robotic joints and servo mechanisms.
This frameless motor adopts arc-shaped surface-mounted magnets with an eccentric air gap design, reducing cogging torque and ensuring smooth, stable motion. Its sinusoidal back EMF simplifies servo control while delivering excellent dynamic response and precision. The vacuum potting process enhances insulation and vibration resistance, extending motor lifespan even under harsh conditions.
With high-temperature-resistant neodymium magnets, professional Hall element integration, and adjustable lamination thickness, the FL-50-08 motor provides exceptional flexibility for custom robotic applications requiring compact, lightweight, and high-efficiency actuation.
Key Features
• Large hollow shaft for easy cable routing and compact integration
• Adjustable lamination thickness for design flexibility

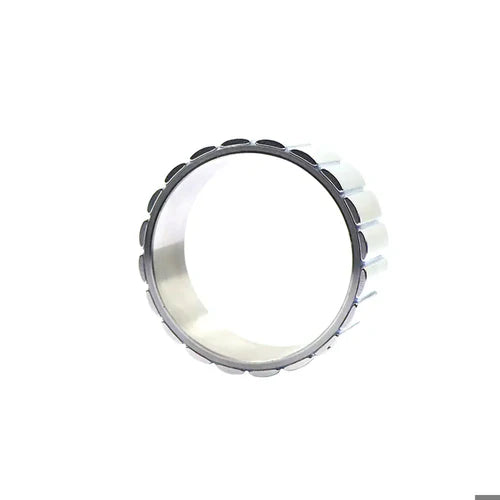

• Arc-shaped surface-mounted magnets for smoother torque output
• Eccentric air gap for reduced cogging and stable rotation
• Sinusoidal back EMF for simplified servo control
• Ultra-high slot fill rate and concentrated winding for higher torque density
• High-temperature resistant rare-earth magnets (no demagnetization under high load)
• Optional Hall element and temperature sensor for enhanced feedback
• Vacuum potting process for superior insulation and vibration resistance
• High rotor protection with anti-scratch structure
Specifications
| Item | Specification |
|---|---|
| Model | FL-50-08 |
| Input Voltage | 48 V |
| No Load Current | 0.35 A |
| No Load Speed | 5200 rpm |
| Rated Torque | 0.3 N·m |
| Rated Power | 163 W |
| Rated Current | 3.9 A |
| Peak Torque | 0.96 N·m |
| Peak Current | 12.48 A |
| Efficiency | >83% |
| Back-EMF Constant | 5.37 Vdc/Krpm |
| Motor Phase Resistance | 0.71 Ω |
| Pole Pairs | 10 |
| Weight | 0.11 kg |
| Feedback | Hall Sensor (optional temperature sensor) |
| Rotor Type | Inner Rotor |
| Cooling Method | Natural Cooling / Vacuum Potting |
| Magnet Type | High-Temperature Rare Earth Neodymium |
| Application | Robotic Arm / Automation / Servo Joint |

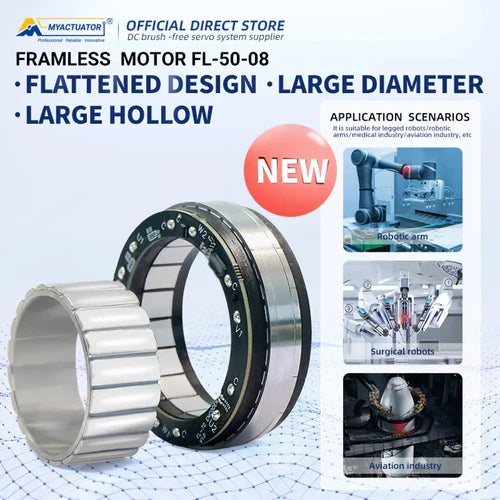

Applications
• Robotic arm joints
• Collaborative robots (cobots)
• Automation machinery
• Precision servo actuators
• Gimbal and camera control systems
• Laboratory automation systems
