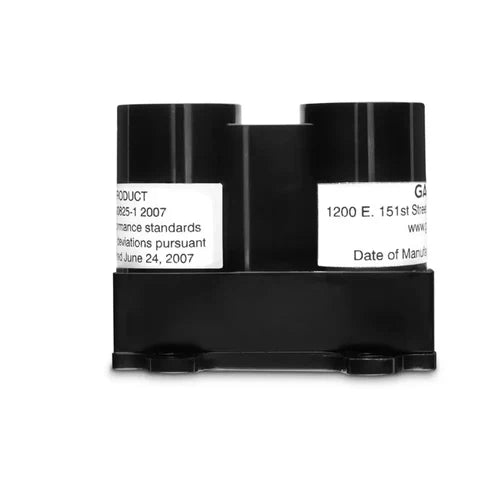

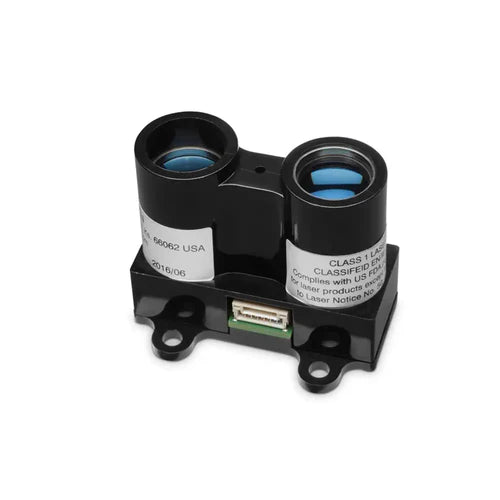

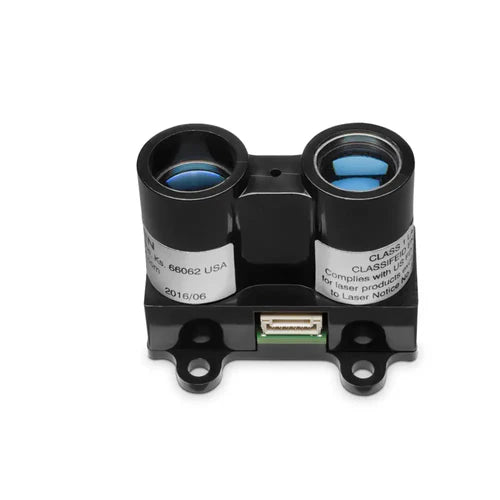

The Garmin LIDAR-Lite 3 is a compact, lightweight, and high-performance single-beam laser rangefinder designed for drones, robotics, automotive safety, industrial measurement, and countless other demanding applications. Measuring 48mm x 40mm x 20mm and weighing just 16g (with housing), it delivers 0–40m range with ±2.5cm accuracy and 1cm resolution, while consuming minimal power — ideal for battery-operated systems.
This upgraded version of the legacy LIDAR-Lite offers 5× faster measurement speeds, improved I2C communication, and user-assignable addressing, making it easier than ever to integrate into multi-sensor systems.
-
Key Features & Upgrades
-
Measurement Speed: Up to 500Hz for rapid scanning and tracking.
-
Accuracy: ±2.5cm for precise distance measurement.
-
Dual Interface Options: I2C (100/400kbit/s) or PWM output for flexible integration.
-
Improved I2C Protocol: Real-time data reads without waiting for sensor readiness, plus broadcast control for multi-unit setups.
-
User-Assignable I2C Addresses: Default 0x62 address plus custom address options.
-
Low Power Consumption: 105mA idle, 130mA continuous operation at 4.75–5VDC (6V max).
-
Wide Operating Temperature: -20°C to 60°C for indoor and outdoor use.
-
Compact & Lightweight: Multiple sensors can be installed without significant weight or power penalty.
-
Performance Specifications
| Parameter | Value |
|---|---|
| Accuracy | ±2.5cm |
| Range | 0–40m |
| Resolution | 1cm |
| Power Supply | 4.75–5VDC (6V max) |
| Current Consumption | 105mA idle; 130mA continuous |
| Measurement Rate | 1–500Hz |
| Interface | I2C or PWM |
| Operating Temperature | -20°C to 60°C |
| Laser Wavelength / Power | 905nm / 1.3W peak |
| Beam Divergence | 8 mrad |
| Optical Aperture | 12.5mm |
| Beam Width | 0.5° |
Configuration Details
-
Optics: 14mm optics (Class 1 laser product)
-
Laser Sensor PCB
-
Detector (PIN diode): NEP 12nW rms, 1.5pF capacitance, 1mm virtual detector size
-
Min Detectable Signal: 1nW at 256 integrated bursts (max integration time)
-
Laser Transmit Power: 1.5W peak at 3A drive, 75µm single-stripe junction
-
LED Transmit Power: 200mW within ±3° beam at 1A
-

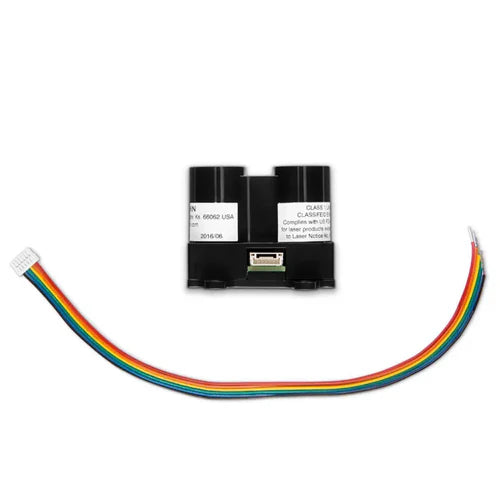

What’s Included
-
1× Garmin LIDAR-Lite 3 Laser Rangefinder
-
1× Cable (connector on one end, bare wires on the other)
Applications
-
Drones/UAVs: Precision landing, obstacle avoidance, terrain following
-
Robotics: Navigation, SLAM mapping, collision avoidance
-
Industrial Sensing: Liquid/grain/solid level measurement
-
Automotive: Blind-spot detection, parking assistance
-
Smart Cities: Traffic monitoring, security systems
-
Creative & Scientific: 3D scanning, aerospace, medical imaging, musical instruments
