Product Highlights
-

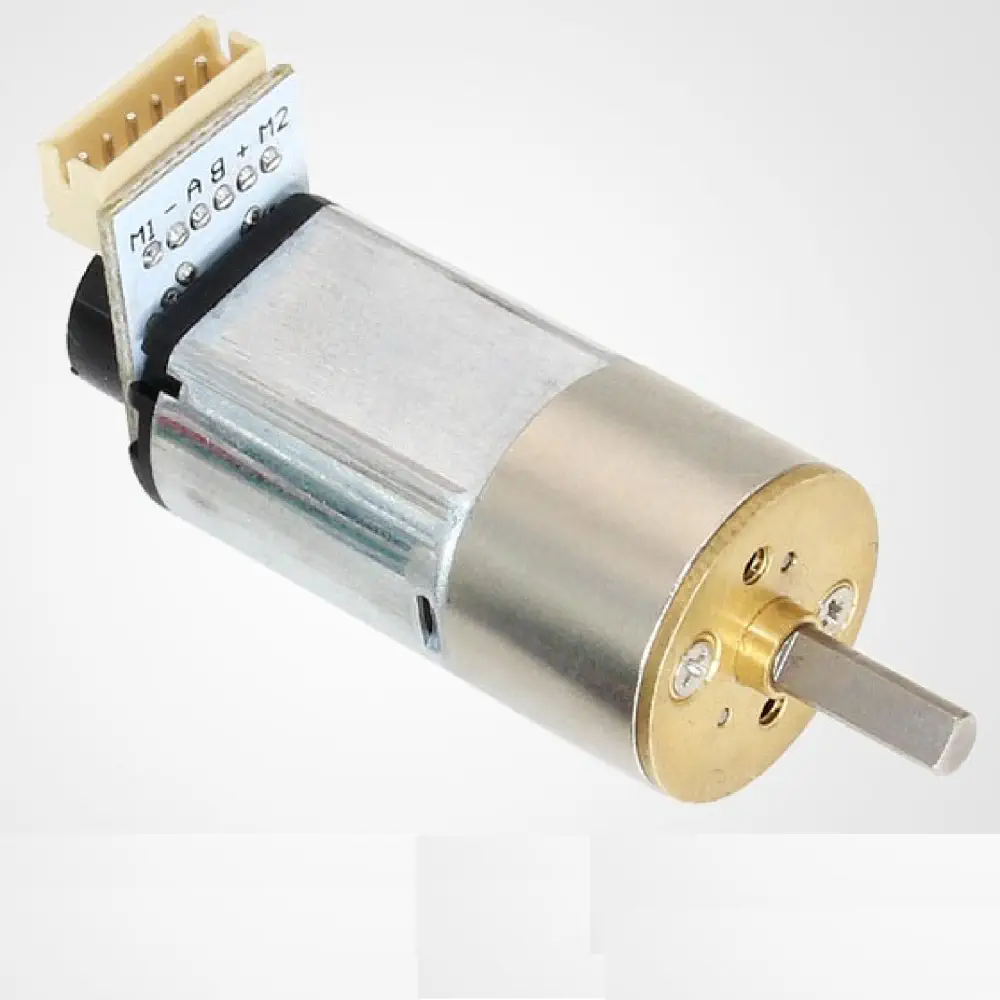

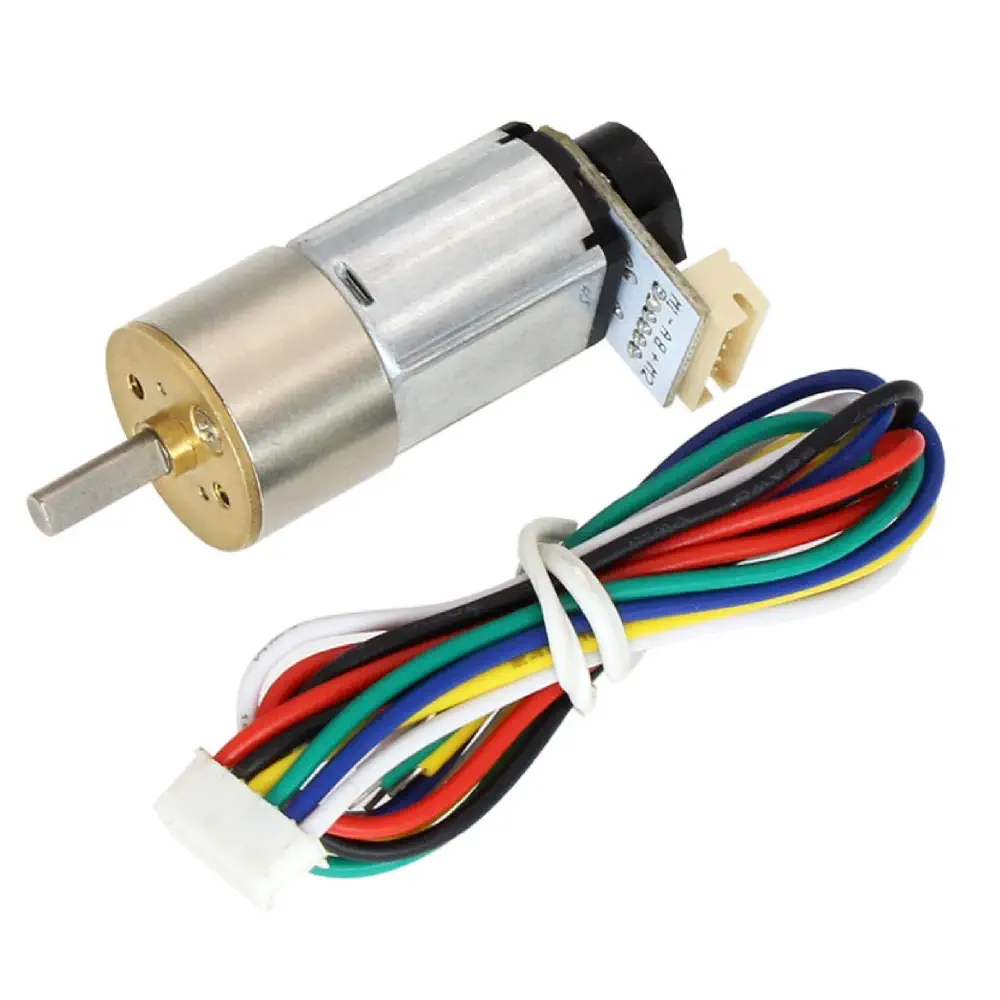

Compact metal DC geared motor with integrated encoder
-
Designed for 6V DC operation
-
60RPM no-load speed for low-speed, high-torque applications
-
Durable metal gearbox for long service life
-
Magnetic encoder with dual-channel output
-
Supports forward and reverse rotation
-
Ideal for closed-loop motion control systems
Product Description
The GM16 metal DC geared motor with encoder is designed for applications that require precise low-speed motion and feedback control. Operating at 6V DC, the motor provides a stable 60RPM no-load speed, making it suitable for robotics, automation systems, and compact drive mechanisms.
The integrated magnetic encoder enables speed and basic position feedback, supporting closed-loop control when used with microcontrollers or motor drivers. Its robust metal gearbox improves durability and torque transmission while maintaining a compact 16 mm form factor, ideal for space-constrained designs.
Specifications
-
Rated Voltage: 6V DC
-
Gear Reduction Ratio: 1:150
-
No-Load Speed: 60RPM
-
Rated Speed: 50RPM
-
No-Load Current: < 50mA
-
Rated Current: < 0.1A
-
Rated Torque: 750g·cm
-
Stall Torque: 3kg·cm
-
Stall Current: < 0.38A
-
Encoder Type: Magnetic encoder
-
Encoder Output: Dual-channel
-
Encoder Resolution: 7 pulses per motor revolution
-
Rotation Direction: Reversible
Physical Dimensions
-
Gearbox Diameter: ~15.5mm
-
Gearbox Length: ~11mm
-
Motor Body Diameter: ~15.5mm
-
Motor Body Length: ~18.6mm
-
Output Shaft Diameter: 4mm (D-shaped)
-
Output Shaft Length: ~10.5mm
Applications
-
Robotics drive and actuator systems
-
Closed-loop motion control projects
-
Educational robotics platforms
-
Mobile robot wheel drives
-
Embedded mechanical systems
-
Automation and DIY engineering projects
Package Includes
-

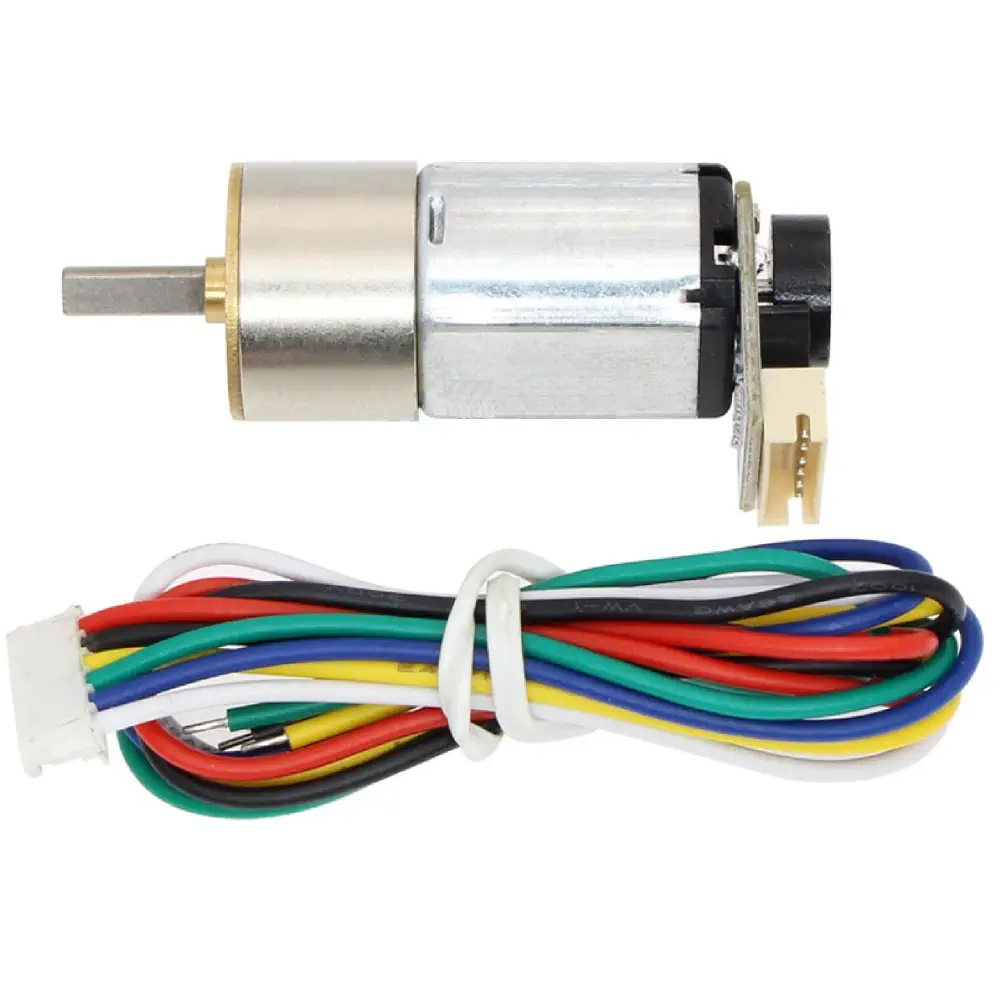

1 × GM16 Metal DC Geared Motor with Encoder (6V, 60RPM)
