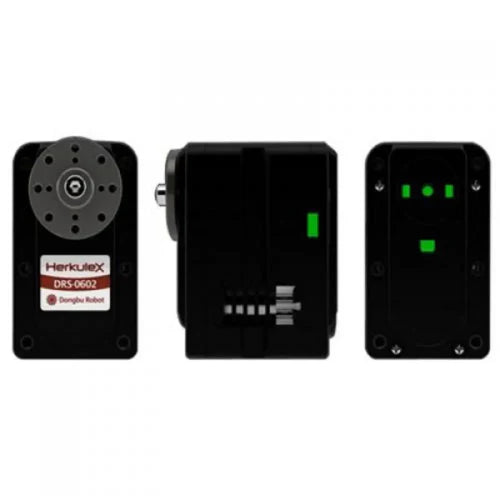

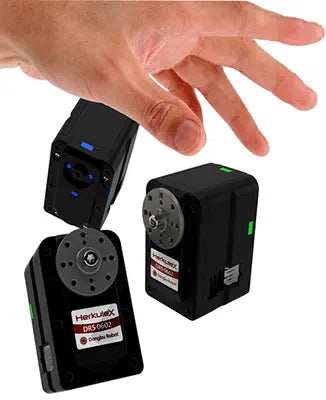

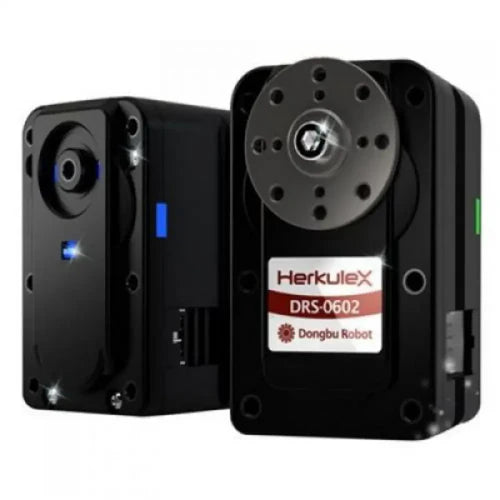

The HerkuleX DRS-0602 Smart Robot Servo is a high-performance modular servo system designed for robotics applications requiring precision, durability, and intelligent control. This advanced servo integrates a Faulhaber premium coreless DC motor, super reinforced metal gear reducer, control circuitry, and full duplex communication capability into a compact and lightweight package.
Unlike conventional servos, the DRS-0602 features a magnetic encoder that ensures exceptional accuracy, durability, and resolution of 12,960 steps. This encoder enhances linearity and precision positioning compared to potentiometer-based systems. With support for a wide 900° operating angle or continuous rotation, the servo maintains stable speed thanks to its built-in speed controller.
Engineered for demanding robotic systems, the DRS-0602 delivers stall torque up to 77.0 kgf·cm at 14.8V and a maximum speed of 0.164s/60° at 14.8V, making it ideal for robotic arms, humanoids, automation platforms, and precision mechatronics projects.
Key Features
-
Faulhaber premium coreless motor for high efficiency and reliability
-
High-precision magnetic encoder (12,960 steps resolution)
-
Super reinforced metal gears for durability under heavy loads
-
PID control with Feedforward for superior motion performance
-
Trapezoidal velocity profile and velocity override
-
Torque saturator & offset adjustment
-
Overload prevention and absolute position adjustment
-
Deadband control for stability
-
More than 50 configurable parameters (via optional HerkuleX Manager Kit)
-
Real-time feedback including position, speed, temperature, overload, and voltage
Specifications
-
Input Voltage: 9.5 – 14.8V DC
-
Stall Torque: 77.0 kgf·cm @ 14.8V / 62.5 kgf·cm @ 12.0V
-
Maximum Speed: 0.164s/60° @ 14.8V
-
Operating Angle: 900° or continuous rotation (with built-in speed controller)
-
Resolution: 12,960 steps
-
Motor Type: Premium Faulhaber coreless DC motor
-
Position Sensor: Magnetic encoder
-
Gear System: Super reinforced metal gears
-
Communication: Full duplex asynchronous serial (TTL), multi-drop, 0–254 ID, up to 1 Mbps
-
Dimensions: 56mm (W) × 35mm (D) × 46mm (H)
-
Weight: 145g
Applications
-
Robotic arms and manipulators
-
Humanoid robots
-
Industrial automation systems
-
Precision mechatronics
-
Research and educational robotics
