Product Description:

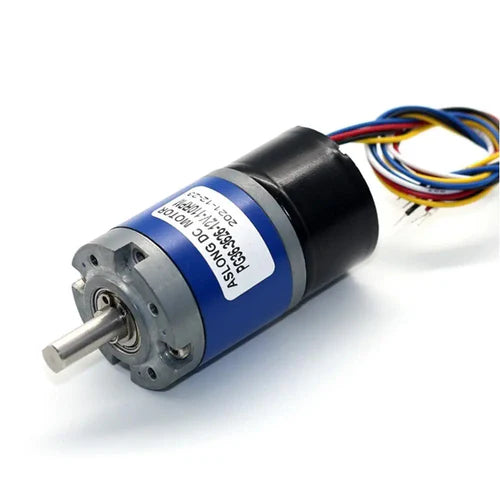

The 36mm High Torque 3625 Brushless DC Planetary Gearbox Motor is a precision-engineered motor designed for high-efficiency operation with minimal noise and loss. Its compact size and versatile torque ratios make it ideal for robotics, medical devices, electric curtains, actuators, and other precision applications requiring reliable performance.
Features:
• Gearbox Diameter: 36mm
• Rated Voltage: 12V/24V
• High operating efficiency with low loss and low noise
• Operating Temperature: -10°C to +50°C, Humidity: 30%–80%
• Standard Operating Conditions: CW rotation when viewed from output shaft, rated voltage 24V
• Storage Temperature: -20°C to +60°C
What's Included:
• 1 pcs PG36-3625 planetary DC geared motor

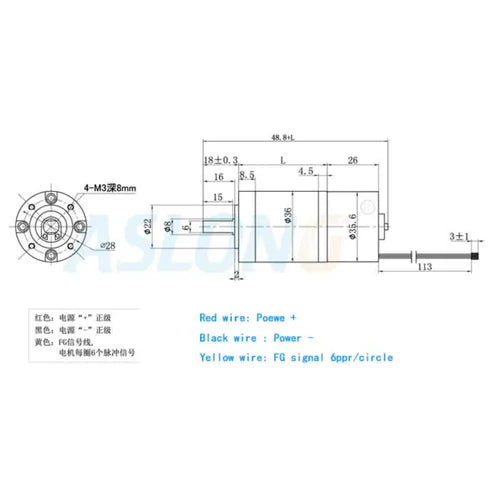

Dimensions:
• Motor Size: 37mm x 33mm x 53mm
• Shaft Length: 15mm

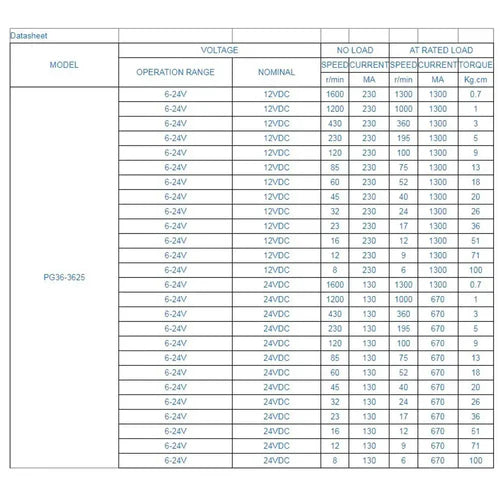

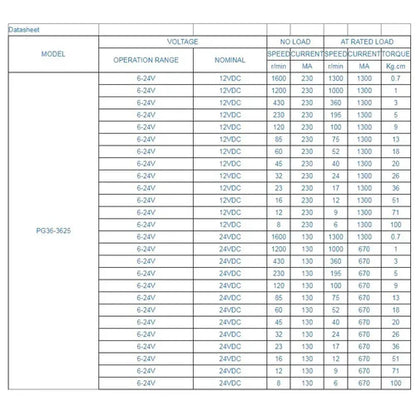

Specifications:
• Measuring Conditions: Motor placed horizontally, powered by regulated DC supply
• No-load Speed: 2–160RPM
• Suitable Applications: Robotics, small appliances, fans, electric curtains, medical pumps, surgical tools, medical stirrers, centrifugal machines, electric valves, actuators, medical devices
• Motor Characteristics: Low noise, low current, no spark
• Gear Ratios Available: 1:3.7 / 1:5.18 / 1:14 / 1:27 / 1:50 / 1:71 / 1:100 / 1:139 / 1:189 / 1:263 / 1:369 / 1:516 / 1:721
