Description:

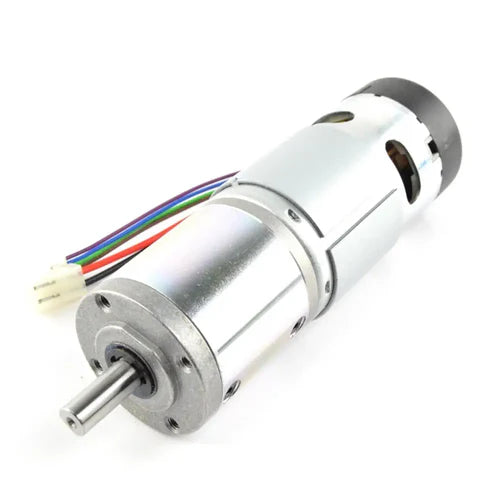

• The 4:1 Planetary DC Geared Motor 42mm offers reduced backlash and higher efficiency, making it ideal for applications requiring precise motion control and higher torque.
• Designed with a 42mm diameter, this motor provides stronger performance than standard 32mm models and includes an encoder for real-time position feedback.
• Its compact design and powerful output make it suitable for robotics, automation, and high-torque DIY projects.
Specifications:
• Gear ratio: 4:1
• Voltage: 12V DC
• Rated Torque: ~2.24 kg-cm (0.22 N·m)
• Rated Speed: 1400 RPM
• Rated Current: 5.5 Amp
• Rated Power Output: 41.3 W

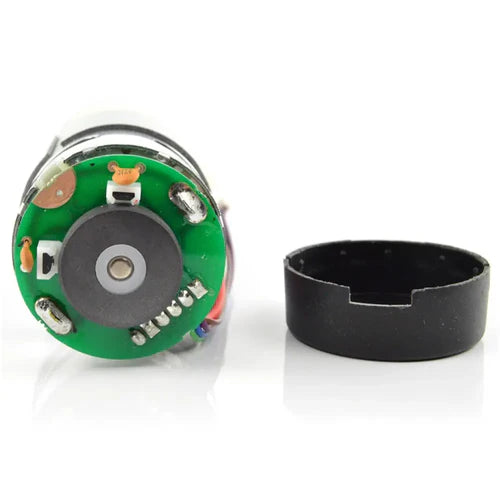

• Encoder Output: 20 pulses per rotation, single channel output

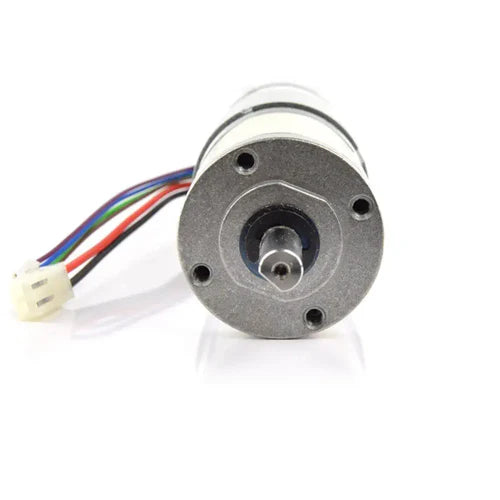

• Shaft: 8.0 mm diameter x 20.0 mm length
• Motor Dimension (W x L x H): 45.0 mm x 45.0 mm x 118.5 mm
• Weight: 360 g
• Motor Type: Brushed
• Compatible Motor Drivers: Arduino Shield MD10, MD10C, MDD10A, MDS40B
Key Features:
• High-efficiency planetary gearbox ensures minimal backlash
• Compact 42mm diameter suitable for high-torque applications
• Integrated encoder provides precise rotational feedback
• Durable brushed DC motor design for reliable operation
• Easy integration with popular Arduino-compatible motor drivers
