Product Description:

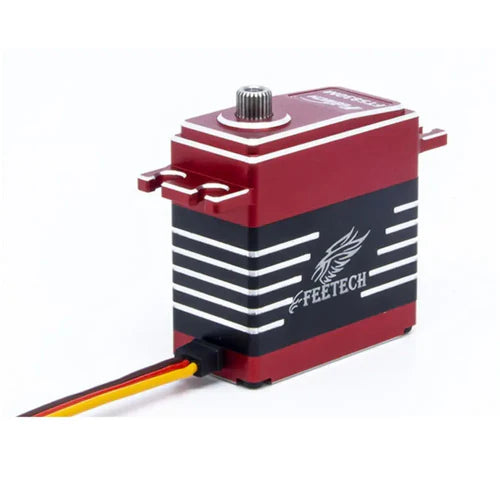

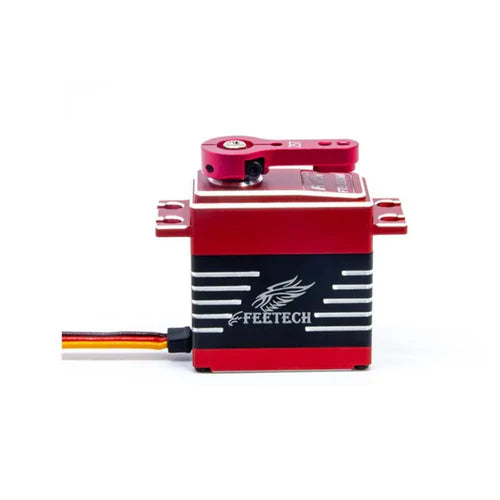

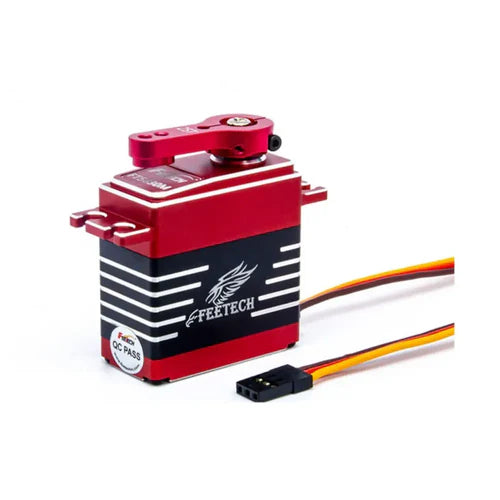

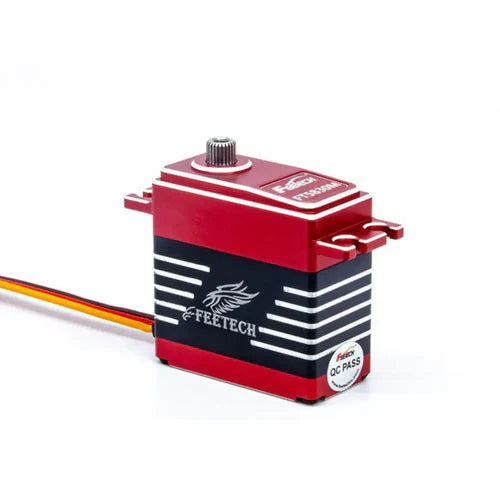

The Digital Steel Gear Iron Core Servo 7.4V 30kg.cm 180° delivers high precision, robust performance, and reliable durability for robotics, RC cars, airplanes, and industrial applications. Featuring steel gears, a PA + aluminum case, and a high-torque core motor, this digital servo ensures smooth operation with minimal wear. Its ball bearings enhance stability and reduce friction, supporting continuous rotation and consistent performance under heavy loads. Compatible with standard pulse width control, it provides precise 180° motion and exceptional torque at 7.4 V.
Key Features:

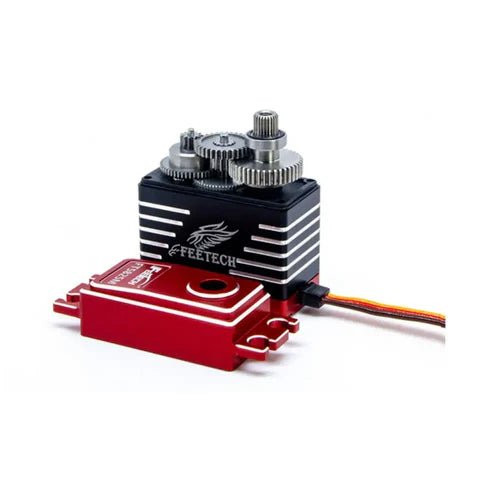

• Gear type: Steel
• Limit angle: No limit
• Bearing: Ball bearings
• Horn gear spline: 25T/5.9 mm
• Case: PA + Aluminum
• Motor: Core Motor
• Operating voltage: 6–7.4 V
• Pulse width range: 500–2500 μsec
• Stop position: 1500 μsec
• Running degree: 180°
• Dead band width: ≤4 μsec
• Rotating direction: Counterclockwise (1500→2000 μsec)
• Idle current: 6 mA @ 7.4 V
• No-load speed: 0.2 sec/60° @ 7.4 V
• Running current: 250 mA @ 7.4 V
• Peak stall torque: 30.5 kg.cm @ 7.4 V
• Rated torque: 10.16 kg.cm @ 7.4 V
• Stall current: 3.5 A @ 7.4 V
• Connector wire: 30 cm
• Size: 40 x 20 x 43 mm (L x W x H)
• Operating temperature: -20 ~ 60 °C
• Storage temperature: -30 ~ 80 °C
• Weight: 74 ± 1 g

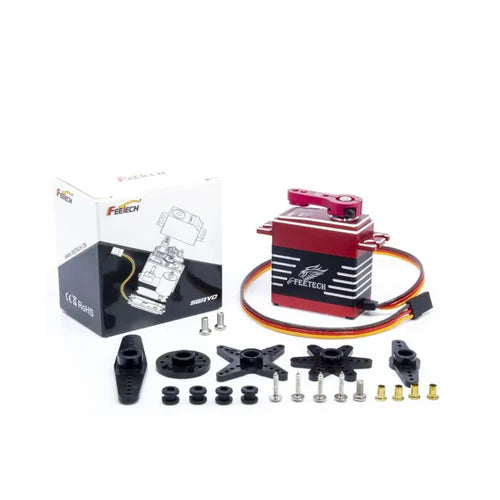

What’s Included:
• 1 x Digital Steel Gear Iron Core Servo 7.4V 30kg.cm 180°
