Description

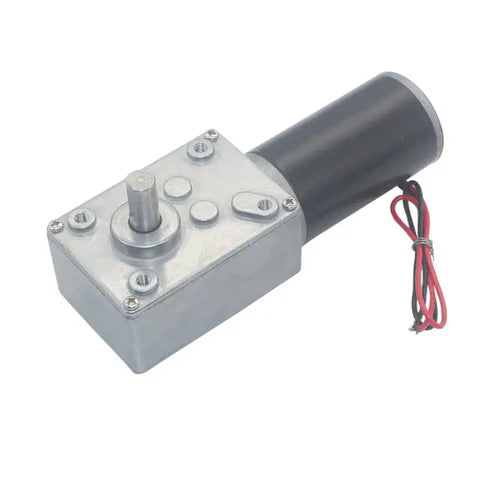

The 5840-31zy Worm Gear Motor is a high-torque DC gear motor designed with a micro-turbine worm structure. By changing the wiring connection, you can easily switch the motor’s rotation direction. Its self-locking design ensures that when the power is turned off, the output shaft remains fixed, preventing unwanted movement. The gearbox output shaft is arranged vertically with the motor shaft, making it suitable for applications that require special installation sizes.
Key Features
• Self-locking function: Output shaft cannot rotate without power, ensuring stability and safety
• Direction control: Easily change shaft rotation by reversing wiring polarity
• High durability: Precision metal gears provide long life, low loss, and improved performance
• Compact design: Gearbox output shaft arranged perpendicular to the motor shaft for versatile installations
• Strong build: Sturdy all-metal construction for heavy-duty and long-term use
Specifications
• Rated Voltage: DC 24V
• Speed (No Load): 470rpm, 295rpm, 260rpm, 161rpm, 160rpm, 102rpm, 80rpm, 50rpm, 40rpm, 27rpm, 25rpm, 17rpm, 16rpm, 12rpm, 10rpm
• Maximum Torque: 70kg.cm
• Output Shaft Diameter: 8mm
• Motor Body Dimensions: 31 × 57mm (D × L)
• Gearbox Dimensions: 58 × 40 × 35mm (L × W × H)
• Wire Length: 20cm
• Shaft Length: 14mm
• Weight: 362g
• Main Material: Metal
Applications
• Bank Equipment
• Safe Boxes and Locks
• Paper Feeders and Shredders
• Intelligent Gas Meters
• Remote Control Curtains
• Copying Machines and Office Equipment
• Advertising Equipment
• Electronic Game Machines
• Analysis Instruments
• Automation Machines
Package Contents
• 1 × 5840-31zy Worm Gear DC Motor
Note
It is normal for black grease to appear around the shaft seal after running for some time. This grease prevents rusting and ensures smooth operation.
