Product Description:

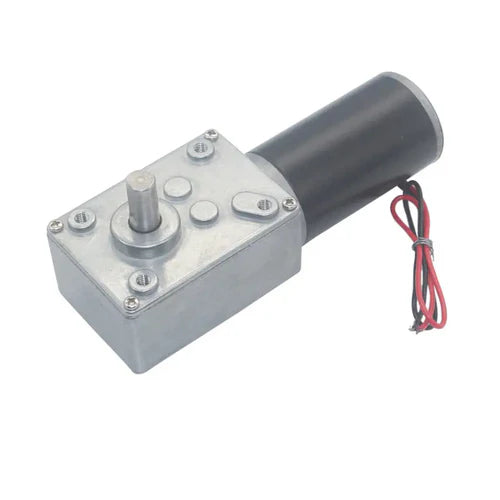

This 5840-31ZY Worm Gear Motor is a high-torque, miniature DC motor designed for precise, reliable motion control. Featuring a turbo worm gear with self-locking capability, the output shaft remains fixed when the motor is powered off, providing safety and stability in critical applications. Its metal gears ensure high precision, durability, and low energy loss, delivering superior performance for extended operation. The motor’s gearbox output shaft is arranged at a right angle to the motor shaft, making it ideal for compact or custom installations.
Key Features:
• High torque output with self-locking worm gear, preventing shaft rotation when powered off
• Miniature DC motor design, easily reverses rotation by changing wiring polarity
• Metal gears for durability, high precision, and low loss
• Vertical output shaft configuration for versatile mounting
• Output shaft diameter: 8mm
• Motor body dimensions: 31 x 57mm (1.22" x 2.24")
• Gearbox dimensions: 58 x 40 x 35mm (2.28" x 1.57" x 1.37")
• Rated voltage: 24V DC
• No-load speed options: 470rpm, 260rpm, 160rpm, 80rpm, 40rpm, 27rpm, 16rpm, 12rpm
• Maximum torque: 70 kg·cm
• Wire length: 20cm
• Motor weight: 362g
• Shaft length: 14mm
Applications:
• Bank equipment, safes, and locks
• Paper feeders and shredders
• Intelligent gas meters and analysis instruments
• Electronic game machines
• Remote control curtains and automated machinery
• Copying machines and other specialized equipment
Package Includes:
• 1 x 5840-31ZY Worm DC Geared Motor
Note:
It is normal for black grease to appear around the shaft seal after running. This grease protects the output shaft from rust and ensures smooth, long-term operation.
