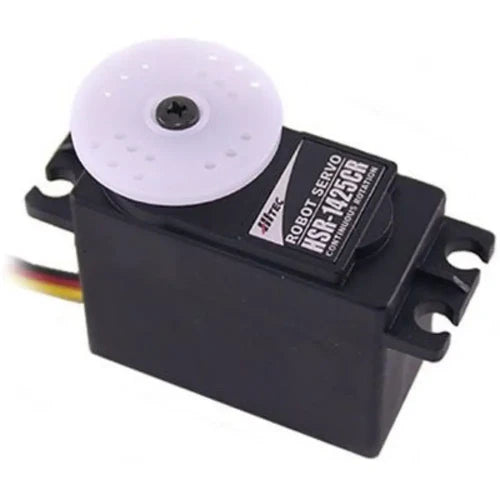

The Hitec HSR-1425CR Continuous Rotation Servo is a precision-engineered standard servo modified for continuous 360° rotation, making it ideal for robotics applications that require smooth, controlled movement. Unlike standard servos, it has no internal positional feedback, allowing it to operate like a geared DC motor with the convenience of standard servo control signals.
Built with nylon gears and dual ball bearings on the output shaft, the HSR-1425CR offers durability for extended operation. Its compact size, light weight, and robust construction make it a top choice for small wheeled robots, automation projects, and educational robotics kits.
By using a PWM control system with a 1500µs neutral point, speed and direction can be easily adjusted. This servo delivers excellent torque output and steady performance over a wide voltage range (4.8–6.0V).
Key Features
-
Continuous rotation modification for full 360° motion
-
Ideal replacement for small DC gear motors in robots
-
Durable nylon gear train with dual ball bearings
-
Compact, lightweight design for easy integration
-
Smooth speed and direction control via standard PWM signals
Specifications
| Parameter | Value |
|---|---|
| Control System | PWM, 1500µs neutral |
| Required Pulse | 4.8–6.0 V peak-to-peak square wave |
| Operating Voltage Range | 4.8–6.0 V |
| Speed (sec/60°) | 0.14 |
| No-Load RPM (4.8V / 6V) | 44 / 52 |
| Max Torque (4.8V / 6V) | 2.8 kg·cm (38.8 oz·in) / 3.1 kg·cm (42 oz·in) |
| Dimensions (L × W × H) | 40.6 × 19.8 × 36.6 mm (1.59" × 0.77" × 1.44") |
| Weight | 41.7 g (1.47 oz) |
| Connector Wire Length | 178 mm (7") |
