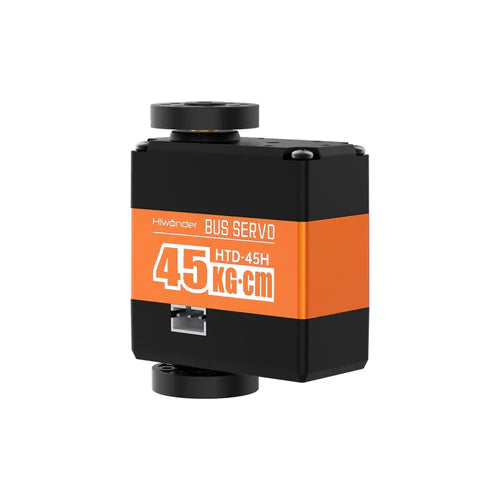

Hiwonder HTD-45H High Voltage Serial Bus Servo – 45KG Torque, Three Connectors & Real-Time Data Feedback

Hiwonder HTD-45H High Voltage Serial Bus Servo – 45KG Torque, Three Connectors & Real-Time Data Feedback

Regular price $38.99 USD
Regular price Sale price $38.99 USD
Sale Sold out

The Hiwonder HTD-45H High Voltage Serial Bus Servo is a high-performance, durable servo designed for advanced robotics applications. Featuring 45KG.cm of torque and all-metal gears, it delivers precision, reliability, and strength for bionic robots, robotic arms, and complex servo-driven mechanisms. Its robust design supports serial communication, allowing multiple servos to operate simultaneously with accurate real-time feedback on temperature, voltage, and position.

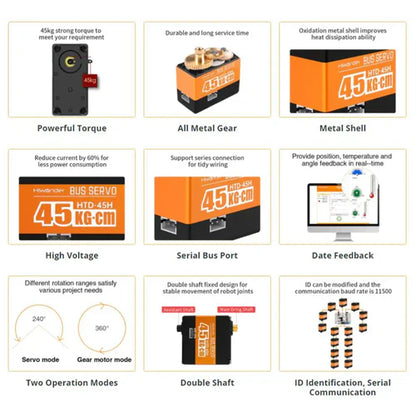

Key Features:

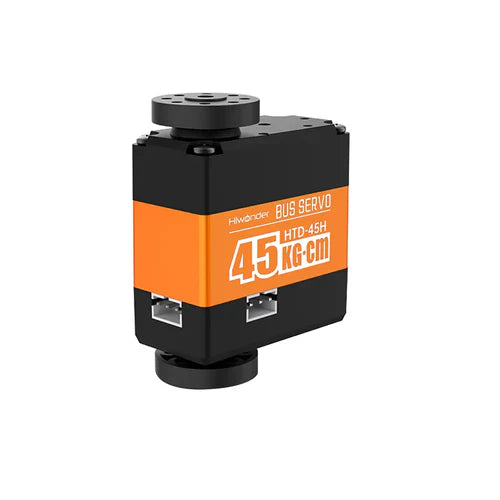

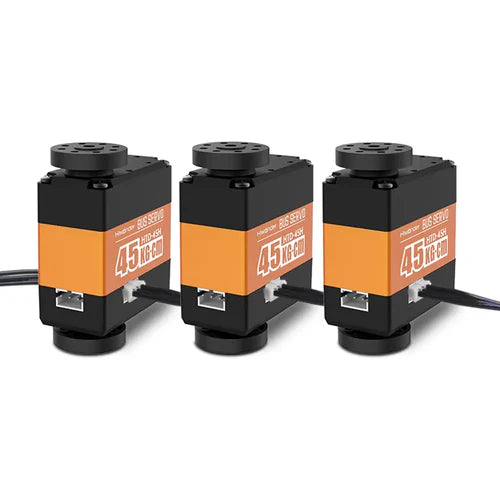

  • Three connectors for neat and organized wiring

  • High precision with strong torque (45KG.cm)

  • Real-time feedback: temperature, voltage, and position

  • Compatible with source code for 51, Arduino, STM32, and Raspberry Pi

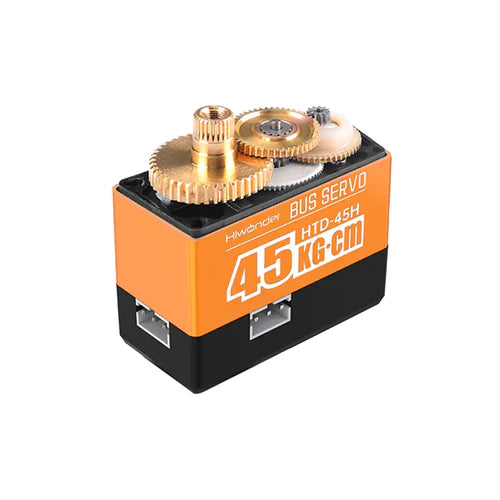

  • Durable all-metal gear construction

  • Controllable angle range: 0–1000 (corresponding to 0–240°)

  • Protection against stalling and overheating

Specifications:

  • Model: HTD 45H Serial Bus High Voltage Servo

  • Brand: Hiwonder

  • Weight: 64g

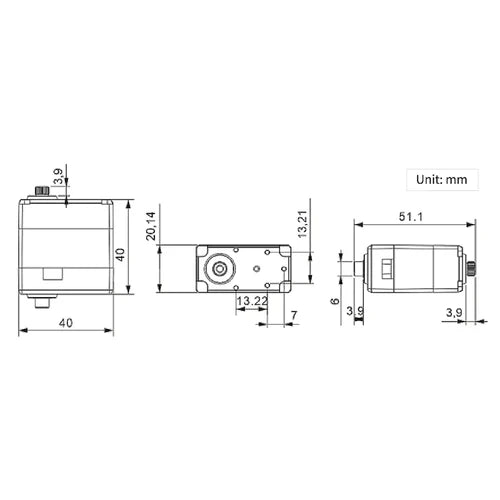

  • Dimensions: 51.1 x 20.14 x 40 mm

  • Working Voltage: 9–12.6V

  • Rotation Speed: 0.18 sec/60° at 11.1V

  • Locked Torque: 45KG.cm at 11.1V

  • Static Maximum Torque: 45KG.cm at 11.1V

  • Rotation Range: 0–240°

  • No Load Current: 3A

  • Stall Current: 3A

  • Servo Accuracy: 0.2°

  • Control Method: UART Serial Command, 115200 baud rate

  • Servo ID: Adjustable from 0–253, default 1

  • Gear Type: Metal Gear

  • Servo Wire Length: 20cm

  • Connector: PH2.0 3P

  • Working Modes: Servo Mode & Gear Motor Mode

  • Storage: Data saved when power off

  • Angle Read Back Function: Supported

  • Applicable To: Joints of bionic robots

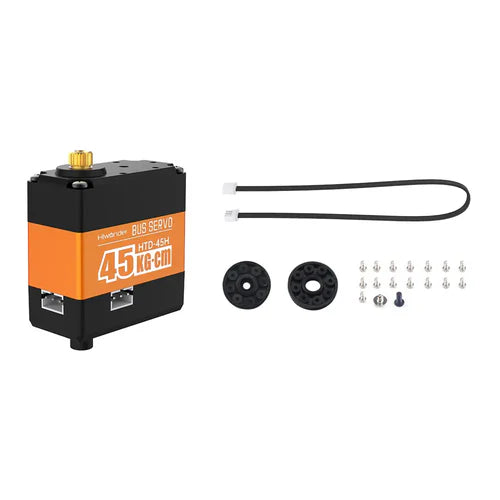

Package Includes:

  • 1x HTD 45H Servo

  • 1x Plastic Main Servo Horn

  • 1x Plastic Assistant Servo Horn

  • 1x Servo Wire (20cm)

  • Screws

  • 1x Big U Bracket (optional)

  • 1x Small U Bracket (optional)

  • 1x Side Bracket (optional)

Why Choose Hiwonder HTD-45H:
This servo is perfect for robotics enthusiasts, engineers, and developers looking to build precise, high-torque systems. Its real-time data feedback ensures optimal performance and safety, while the three connectors simplify complex wiring setups. Ideal for bionic robots, robotic arms, and custom automation projects.
