Description
The Hiwonder HTS-20L Serial Bus Servo is a high-performance digital servo designed for robotics applications that demand precise control, strong torque, and intelligent feedback.
Featuring an all-metal gear structure, 20 kg·cm torque, and multi-feedback capability (position, temperature, and voltage), this servo delivers reliable motion control for robotic arms, bionic robots, and multi-joint mechanisms.
With three connector ports for easy daisy-chain wiring, you can link multiple servos neatly in serial bus mode—ideal for large robot assemblies. The servo supports UART communication with an open bus protocol, compatible with 51-series MCUs, Arduino, and STM32 controllers. Through the provided PC debugging software, users can configure parameters such as ID, rotation speed, LED status, and protection alarms.
Key Features
• 20 kg high torque (7.4 V) with all-metal gears for durability
• Position / temperature / voltage feedback prevents overheating and over-voltage damage
• UART serial command control with 115200 baud rate
• Dual working modes: servo mode & deceleration-motor mode
• Compatible with 51 MCU, Arduino, and STM32 platforms
• Supports PC configuration via TTL / USB debugging board
• Three-port serial connection for clean wiring and easy chaining
• High-precision potentiometer ensures smooth, stable response
What’s Included
• 1 × HTS-20L Serial Bus Servo
• 1 × 20 cm Servo Wire
• 4 × Plastic Servo Horns
• 1 × Screw Bag
Specifications
| Parameter | Value |
|---|---|
| Model | Hiwonder HTS-20L Serial Bus Servo |
| Weight | 62 g (2.18 oz) |

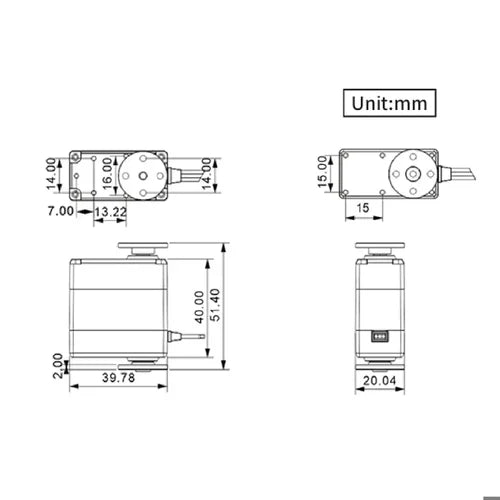

| Dimensions | 54.38 × 20.04 × 45.5 mm |
| Working Voltage | 6 – 8.4 V |
| Speed | 0.2 s / 60° @ 7.4 V |
| Torque | 20 kg·cm @ 7.4 V |
| Rotation Range | 0° – 240° |
| No-Load Current | 100 mA |
| Stall Current | 2.4 – 3 A |
| Servo Accuracy | 0.3° |
| Control Method | UART Serial Command |
| Communication Baud Rate | 115200 bps |
| Servo ID Range | 0 – 253 |
| Feedback Data | Temperature, Voltage, Position |
| Protection Features | Stall & Overheat Protection |
| Working Modes | Servo Mode / Deceleration Motor Mode |
| Connector Type | PH2.0-3P (Three Ports for Clean Wiring) |
