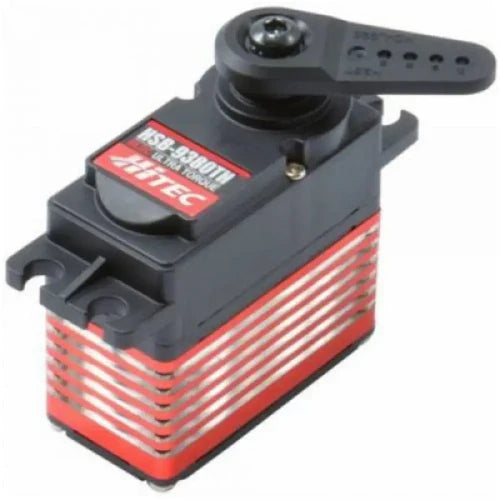

The HSB-9380TH Ultra Torque Brushless Servo is a premium, high-efficiency servo designed for giant scale aircraft, 1/8th scale racing vehicles, and 1/5th scale road vehicles. Featuring an industry-leading titanium gear train and ultra-efficient Neu Castle brushless motor, this servo delivers constant power output with low current consumption, making it ideal for pilots and racers who demand top-tier performance.
Built for reliability and precision, the HSB-9380TH includes a programmable 12-bit digital control circuit, dual ball bearings, and a 25-tooth standard output spline with a 3mm hex head screw. Its rotation direction can be reversed, and travel angles can be extended up to 180° using the Hitec servo programmer, offering full control flexibility for advanced applications.
Key Features:
-
Titanium gear train for ultra-torque and durability
-
25-tooth industry-standard spline with 3mm hex screw
-
Constant power output for reliable performance
-
Programmable 12-bit resolution digital circuit
-
Low current consumption for energy efficiency
-
Dual ball bearings for smooth, precise motion
-
Direction of rotation can be reversed
-
Travel angle adjustable up to 180°
Specifications:
-
Size: 1.57 x 0.79 x 1.50 in (40.0 x 20.0 x 38.0 mm)
-
Weight: 2.40 oz (68 g)
-
Gear Type: Titanium
-
Motor: Brushless
-
Control Circuit: EBL digital
-
Bearing: Dual BB
-
Direction: Clockwise (CW)
-
Pulse Data: Requires 3–5V peak-to-peak square wave pulse; pulse duration 0.9–2.1ms (1.5ms center), refresh rate 50Hz (20ms)
Performance:
-
6.0V: Speed 0.17 sec/60°, Torque 472 oz-in (34.0 kg-cm)
-
7.4V: Speed 0.14 sec/60°, Torque 472 oz-in (34.0 kg-cm)
The HSB-9380TH is the ultimate solution for giant scale model enthusiasts and competitive 1/8th scale racers, offering high torque, speed, and energy efficiency in one ultra-durable digital servo.
