Product Description

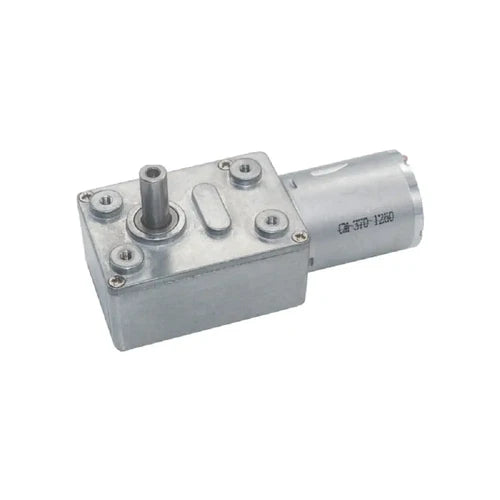

The JGY370 12V 6RPM High Torque Worm Gear Motor is a durable and reliable DC motor designed with an all-metal gearbox for excellent strength, wear resistance, and long service life. Equipped with a D-shaped output shaft and self-locking function, it ensures stable performance, high torque, and low noise operation—making it ideal for a wide range of industrial and household automation applications.
Key Features
• All-metal gears: High-temperature resistance, abrasion resistance, strong load capacity, sturdy and durable to protect the motor body
• D-shaped output shaft: Made of high-hardness steel with good toughness and impact resistance for improved bearing quality and extended motor life
• Micro-turbine worm gear design: Enables reversible motor rotation by changing wiring connections, delivering high torque with low noise
• Self-locking worm gearbox: Prevents the output shaft from moving without power, ensuring stability and safety
• Wide application: Perfect for label machines, remote control curtains, automatic voltage regulators, barbecue grills, ovens, washers, waste disposal machines, coin machines, coffee machines, towel machines, printing machines, and stage lighting
Specifications
• Model: JGY370
• Rated Voltage: DC 6V / 12V / 24V
• Speed (No load): 2 / 6 / 10 / 18 / 23 / 30 / 40 / 90 / 150 RPM
• Max Torque: 24 kg·cm
• Shaft Type: D-shaped, 6 x 14mm (0.24" x 0.55")
• Screw Shaft Diameter: 8mm
• Female Thread Diameter: 2.5mm (0.1")
• Motor Body Size: 30.8 x 24.4mm (1.21" x 0.96")
• Gearbox Size: 46 x 32 x 25mm (1.81" x 1.26" x 0.98")
• Total Motor Size: 76.8 x 32 x 25mm (3.02" x 1.26" x 0.98")
• Weight: 162g
• Motor Pins: 2
Package Includes
• 1 × JGY370 DC Worm Gear Motor
