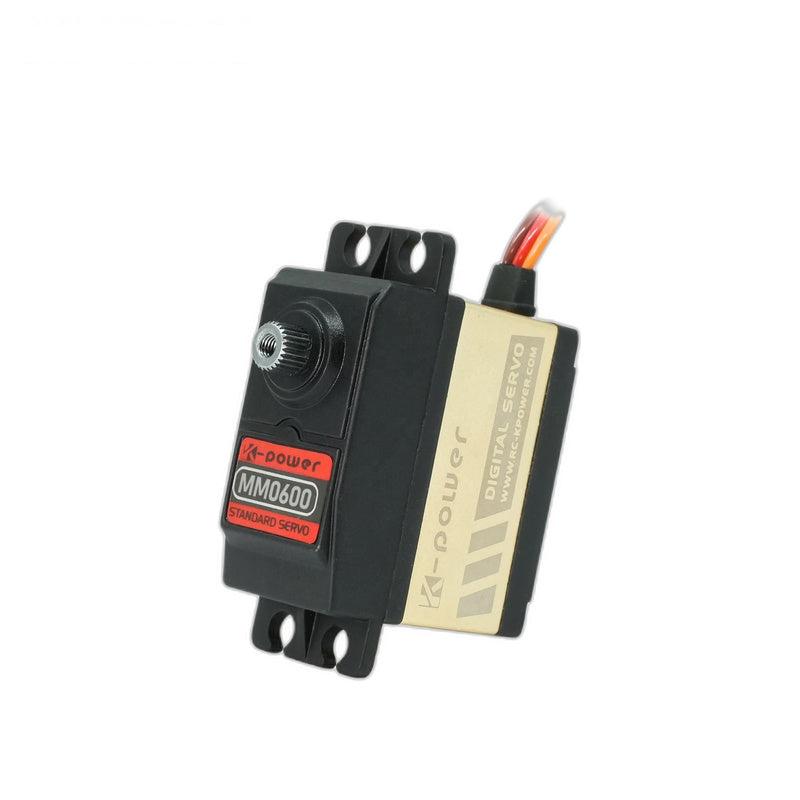

• Kpower MM0600 servo motor angled view with output spline, mounting tabs and lead wire

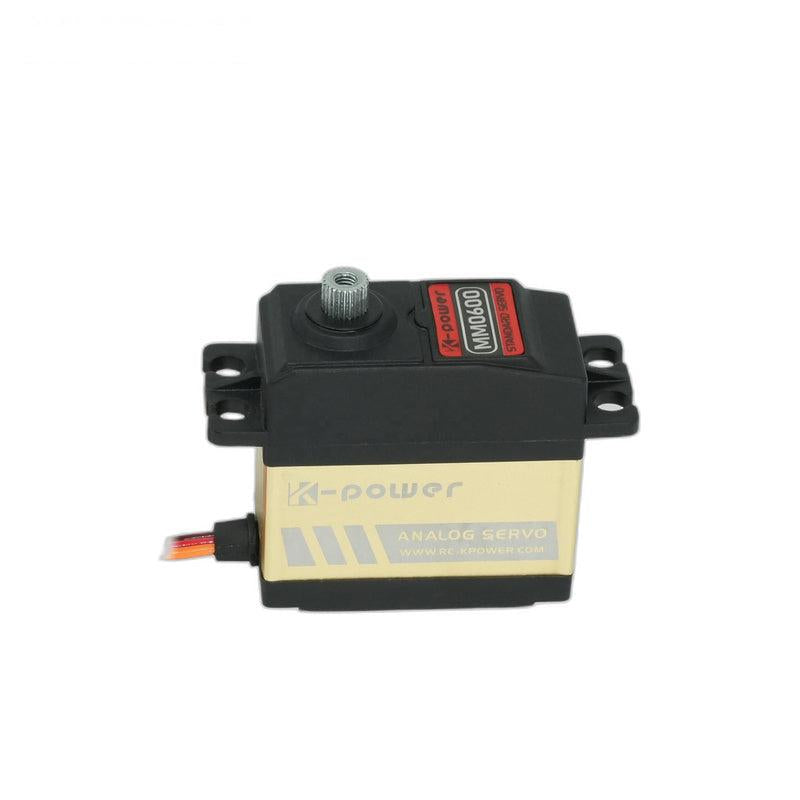

  • Side profile of MM0600 analog servo showing mounting ears, top spline and cable exit

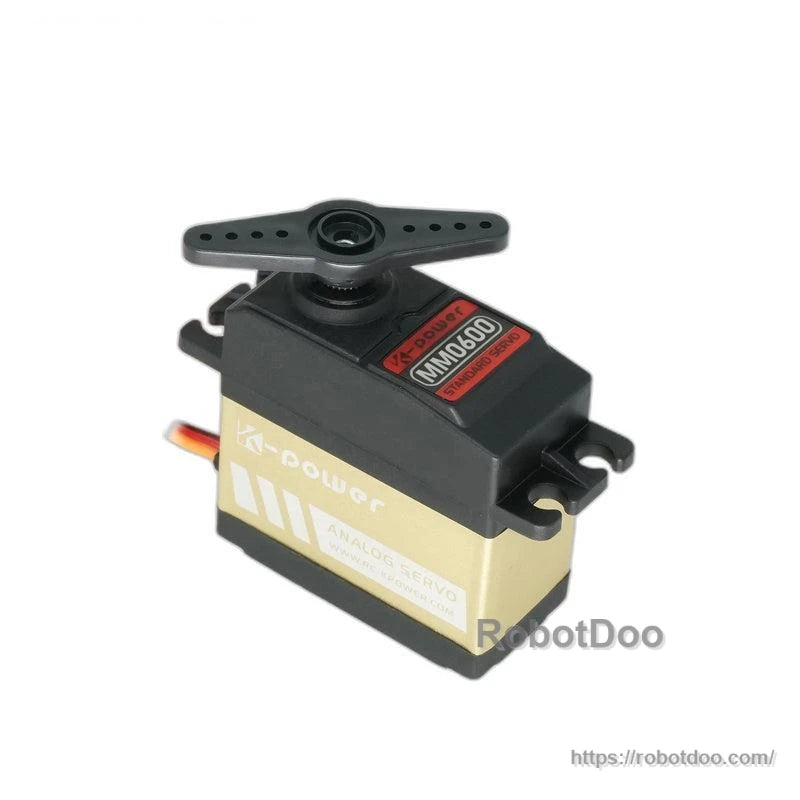

  • Kpower MM0600 servo motor with attached servo horn arm, showing output shaft and housing

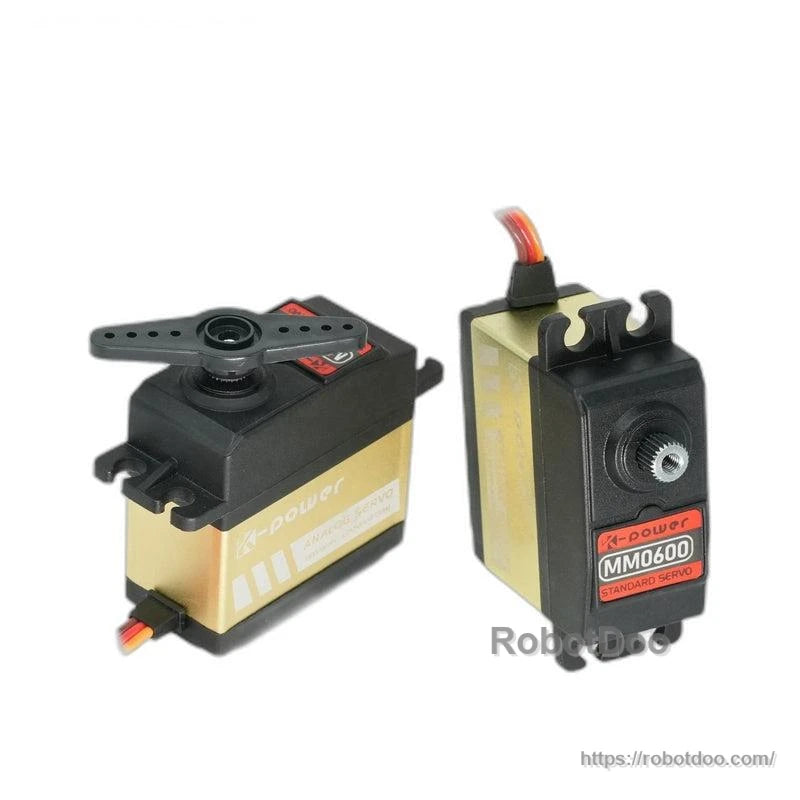

  • Two MM0600 servos shown together, one with horn installed and one front view with spline
1 4

Kpower

Kpower MM0600 Servo Motor (Standard Servo), 6.5 kg Stall Torque, 4.8–8.4 V, PWM/TTL/RS-485

Kpower MM0600 Servo Motor (Standard Servo), 6.5 kg Stall Torque, 4.8–8.4 V, PWM/TTL/RS-485

$25.00 USD
$25.00 USD
Sale Sold out
Shipping calculated at checkout.
Version
View full details

Overview

The Kpower MM0600 servo motor is a standard servo actuator for robotics and automation projects, supporting multiple control options (PWM, TTL, RS-485) in a compact form factor.

Key Features

  • M Series Servo
  • Precision machined metal gear
  • High-speed response
  • Long lifespan potentiometer (position sensor type: potentiometer)
  • 25T output spline (phi 6 mm)
  • 2 ball bearings (2BB)
  • Case material: plastics + aluminum alloy
  • IP42 rating

Control & Wiring Notes

  • Servo signal pulse width reference (20 ms per cycle): 0.5 ms (-90 degrees), 1 ms (-45 degrees), 1.5 ms (0 degree), 2 ms (45 degrees), 2.5 ms (90 degrees).
  • High-frequency signal note shown: 50–300 Hz compatibility for digital servos.
  • 3-wire pinout reference: Brown = GND, Red = Vcc, Orange = Signal.

Specifications

Parameter Value
Stall Torque 6.5 kg
Rated Torque 1.5 kg
No-load Speed 0.12 s
Weight 58 g
Dimension 40 x 20 x 37.5 mm
Travel Angle Range 120 degrees (Customizable)
Operating Voltage 4.8 ~ 8.4 V
Horn Gear Spline 25T phi 6 mm
Gear Material Metal
Motor DC Brushed
Protocol PWM | TTL | RS-485
No-load Current 3600 mA
Position Sensor Potentiometer
Case Material Plastics + Aluminum Alloy
Ball Bearing 2BB
Working Frequency 50 ~ 333 Hz
Operating Temperature -10 ~ 50 C
IP Rating IP42

Applications

  • Humanoid robots
  • Robotic arms
  • Exoskeletons
  • Quadruped robots
  • AGV vehicles
  • ARU robots
  • Robot joints
  • R/C models
  • Industrial equipment
  • Education robot kits

Manuals

For integration questions (PWM timing, TTL/RS-485 wiring, or controller compatibility), contact the store customer service team.

Details

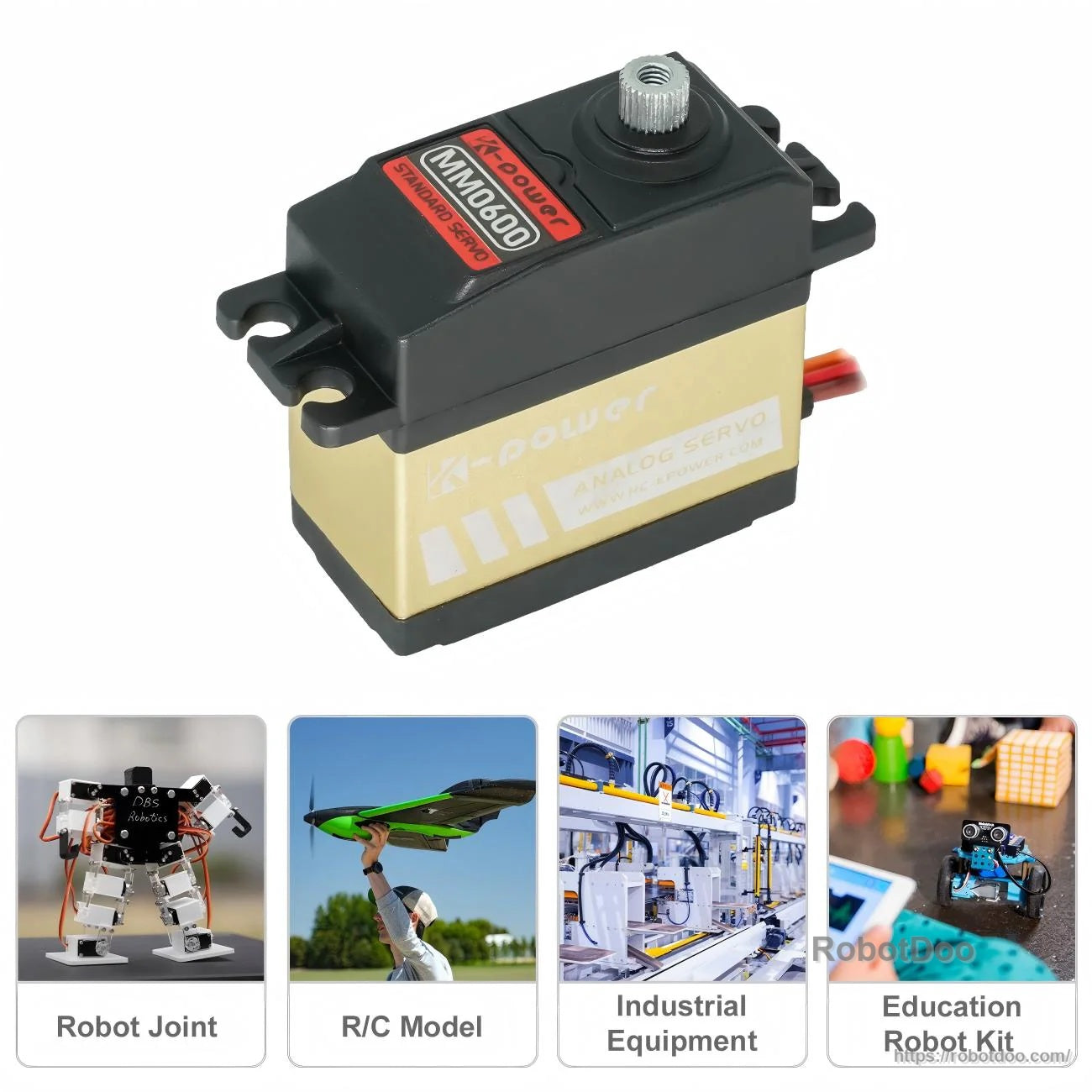

Kpower MM0600 servo motor, compact standard servo with 25T output spline for robotics and automation

The Kpower MM0600 servo motor fits compact robot joints and automation builds where reliable positioning matters.

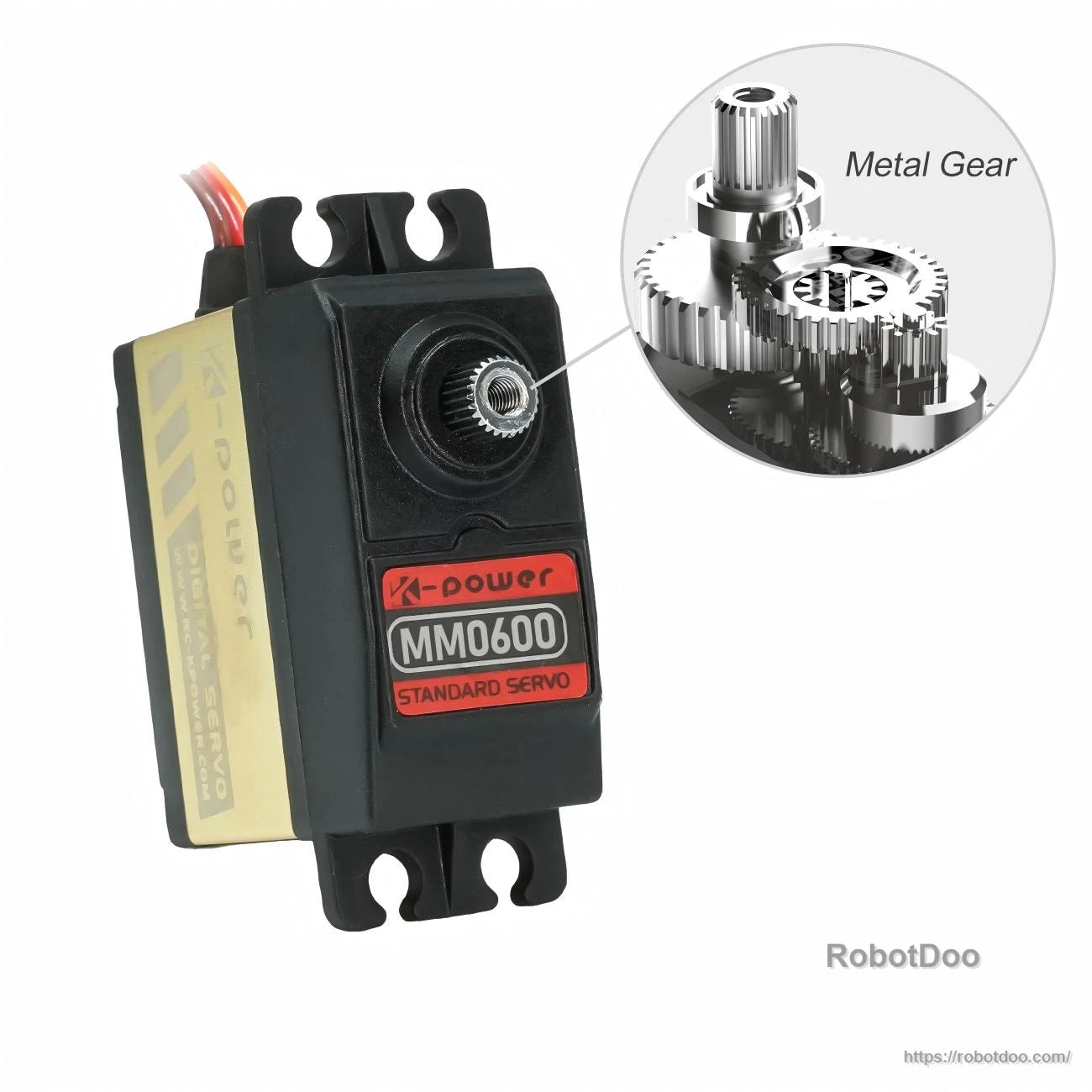

M Series servo feature graphic highlighting precision machined metal gears, fast response, and potentiometer feedbackSide view of MM0600 standard servo with output shaft and callout for metal gear train

Metal gearing and a sturdy output shaft design help support frequent motion cycles in robotics projects.

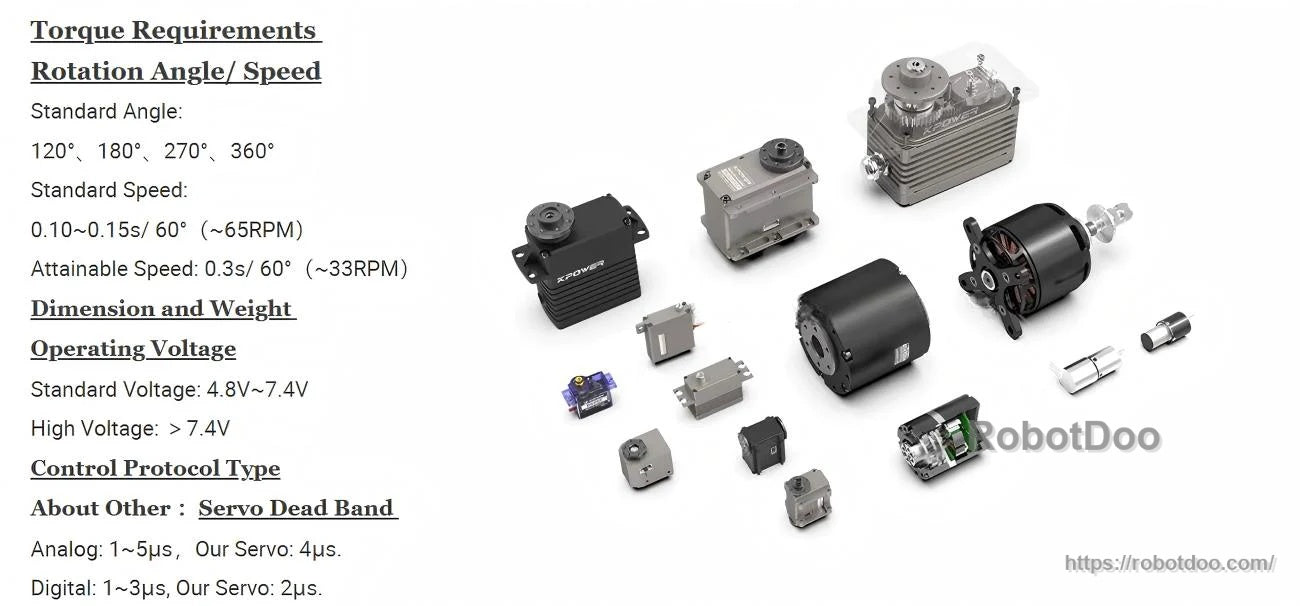

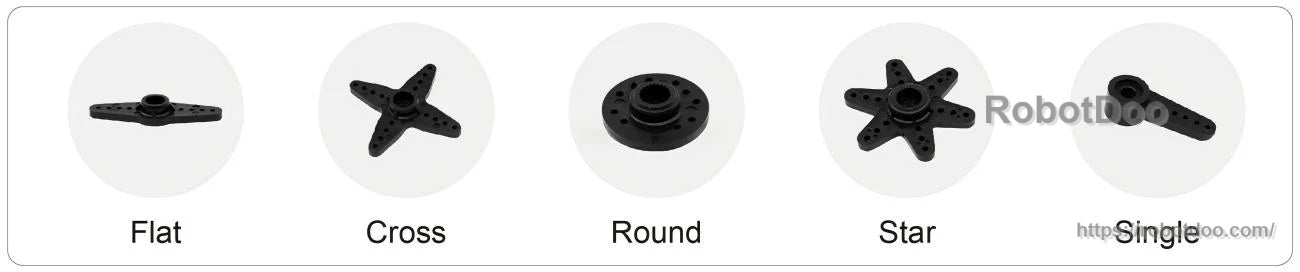

Servo selection reference chart for torque, rotation angle, speed, operating voltage, and servo dead bandCompatible servo horn styles: flat, cross, round, star, and single-arm options

Multiple horn styles make it easier to match the spline output to your linkage or bracket design.

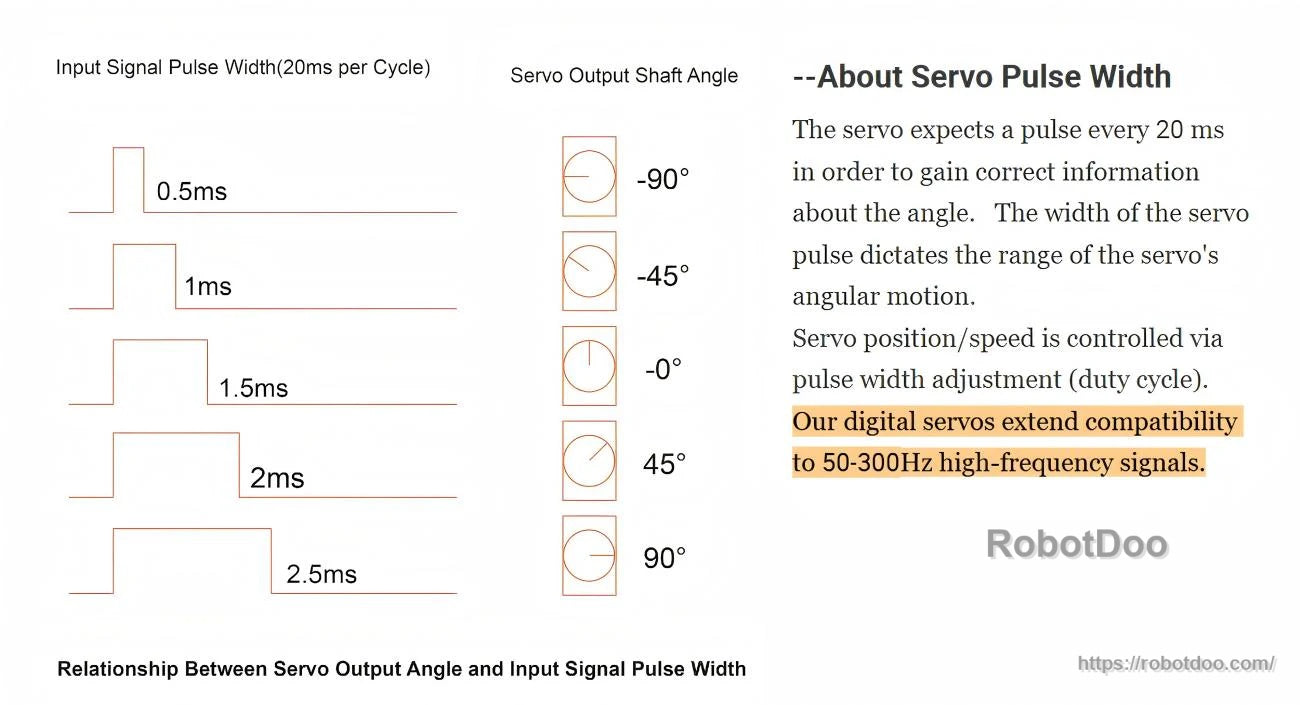

PWM pulse width chart mapping 0.5–2.5 ms signals to servo angle positions from -90° to +90°

Use standard 20 ms PWM timing to set target angles; digital control can support higher-frequency signals within the listed range.

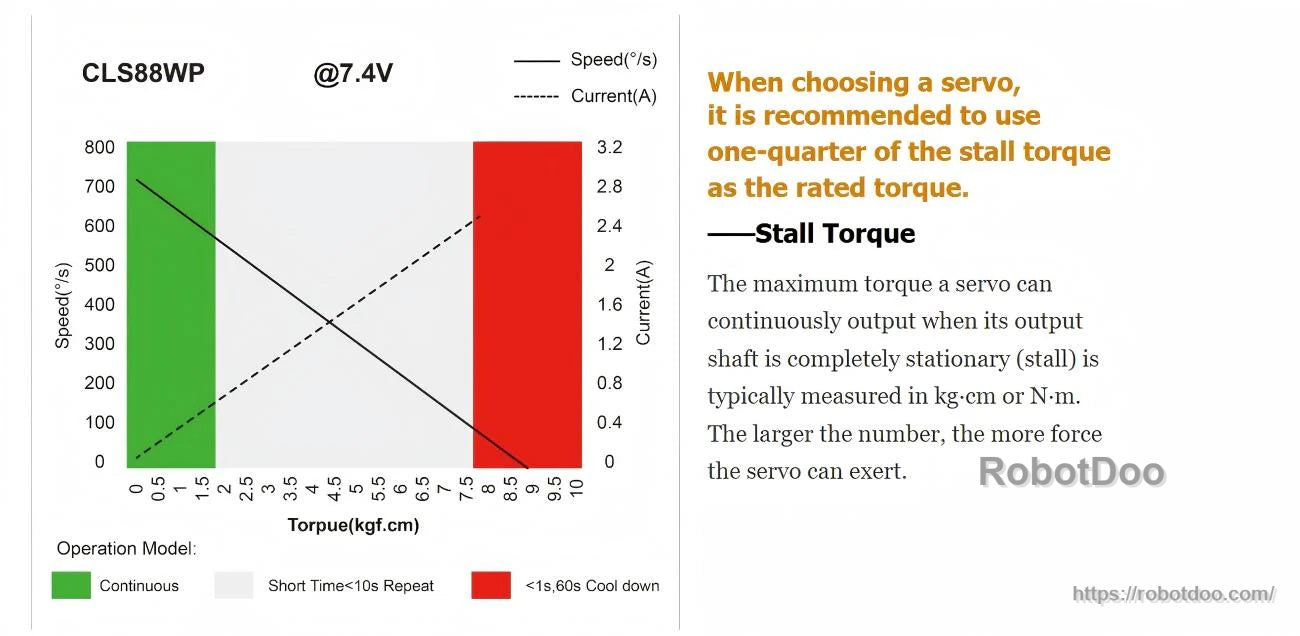

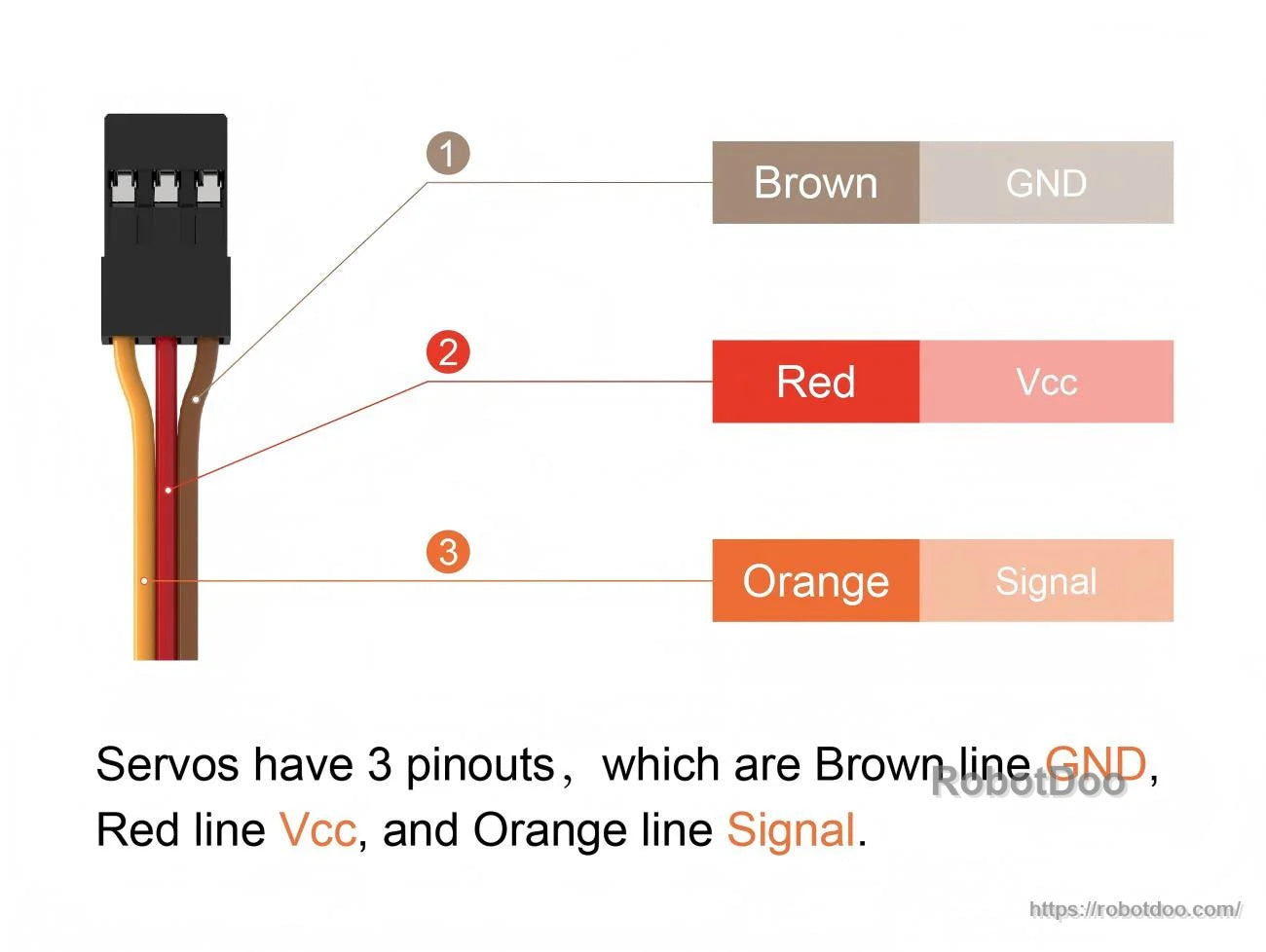

Custom servo motor capabilities graphic listing options for appearance, torque, protocol, wiring, and protection designsServo torque and speed performance concept chart explaining stall torque and recommended working torque margin3-wire servo pinout: brown ground (GND), red power (Vcc), orange signal line

Wiring is straightforward with the standard 3-wire layout: GND, Vcc, and signal.

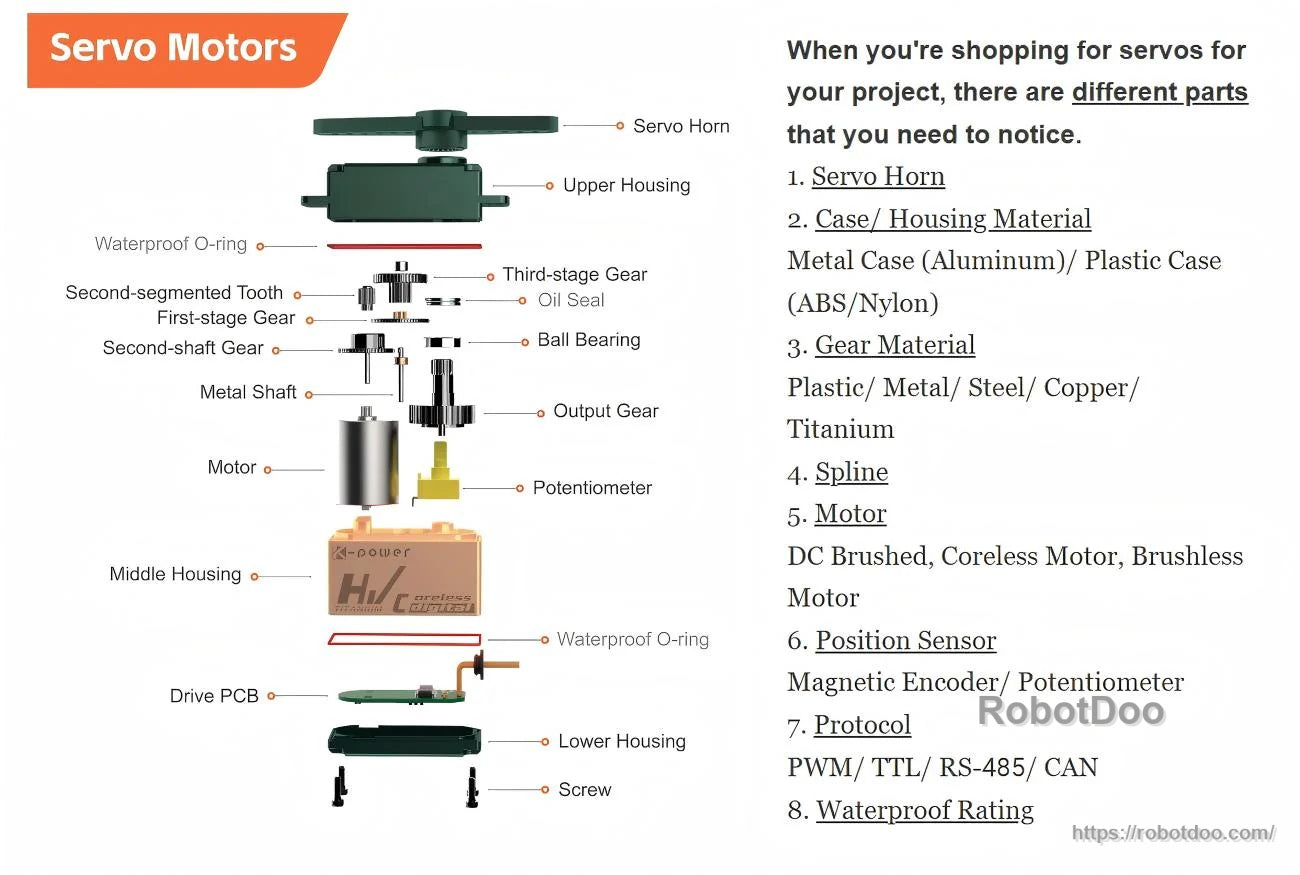

Exploded view of a servo motor showing horn, gear train, bearings, motor, potentiometer, and housing partsApplication collage for servo drive solutions across robotics, smart home devices, industrial automation, and logisticsODM service workflow graphic covering product design, prototyping, validation, and mass production steps
