Description:

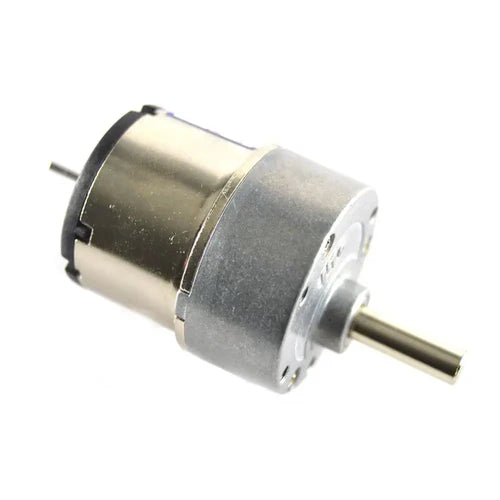

The Lynxmotion 12VDC 200RPM GHM-16 DC Gearmotor with rear shaft is a compact, high-performance motor ideal for robotics and precision automation projects. With a nominal voltage of 12V, it delivers continuous torque of 0.78 Kg-cm (10.83 oz-in) and a stall torque of 83 oz-in, providing reliable power for small robotic mechanisms and hobbyist applications.
Equipped with a D-shaped 6 mm rear shaft and 18 mm length, this motor is compatible with the Lynxmotion Quadrature Motor Encoder V2 (cable included) for precise speed and position feedback. Its durable 30:1 gearbox ensures smooth torque delivery, and the lightweight design allows easy integration into compact spaces.
Specifications:
-
Gear Ratio: 30:1
-
Nominal Voltage: 12 V
-
No-Load RPM: 200
-
Rated RPM: 163
-
No-Load Current: 0.115 A
-
Rated Torque: 10.83 oz-in (0.78 Kg-cm)
-
Stall Current: 1.6 A
-
Stall Torque: 83 oz-in
-
Shaft Type: D-Shaped
-
Shaft Diameter: 6 mm
-
Shaft Length: 18 mm
Dimensions:
-
Size (Diameter x Length): 37 x 42 mm
-
Weight: 120 g
Compatibility:
-
Works directly in robotics projects
-
Compatible with Lynxmotion Quadrature Motor Encoder V2 for feedback
This motor is perfect for hobbyists, engineers, and educators building mobile robots, robotic arms, or automated mechanisms.
