Description

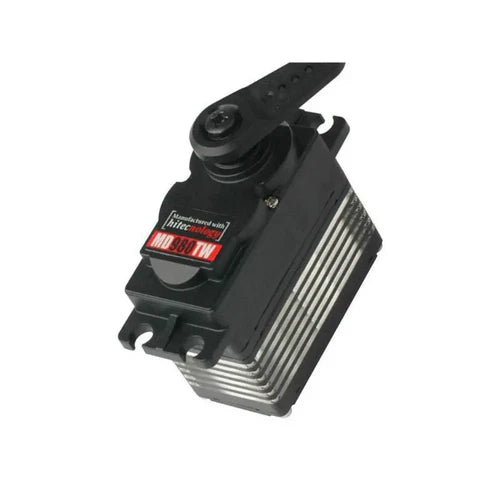

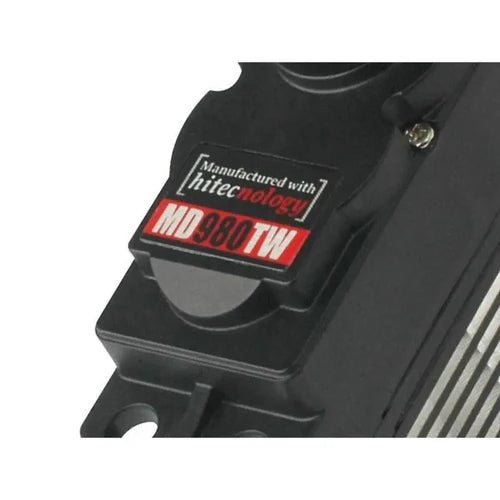

The MD980TW 22mm Coreless Titanium Gear High Torque Servo is designed for precision, durability, and high performance. Featuring a 32-bit programmable PWM digital circuit and a magnetic encoder position sensor, this servo delivers exceptional accuracy and responsiveness. With an IP65-rated housing, titanium/steel gears, and a 25-tooth output shaft, it is built to withstand demanding applications. Its heavy-duty coreless motor ensures long life and reliable operation.
Key Features
• High resolution 32-bit programmable PWM digital circuit
• Magnetic encoder position sensor for accurate control
• Coreless metal brush motor for efficiency and durability
• Titanium and steel gear combination for strength and longevity
• Dual ball bearing design for smooth performance
• 25-tooth output shaft for secure attachment
• IP65 dust and water-resistant rating
• Heavy-duty, long-life motor construction
Specifications
Performance
• Operating Voltage Range (Volts DC): 4.8 V ~ 7.4 V
• Speed (Second @ 60°): 0.21 ~ 0.17
• Maximum Torque Range (oz/in): 500 ~ 611
• Maximum Torque Range (kg/cm): 36.0 ~ 44.0
• Current Draw at Idle: 30 mA
• No Load Operating Current Draw: 500 mA
• Stall Current Draw: 10,000 mA
• Dead Band Width: 1 µs
Physical
• Motor Type: Coreless Metal Brush
• Gear Material: MK 1st Gear & 3 Titanium / Steel Gears
• Bearing Type: Dual Ball Bearing
• Output Shaft (type / Ømm): 25 / 6
• Case Material: Plastic / Aluminum
• Dust / Water Resistance: IP65
• Weight: 79 g
• Size (L x W x H): 43.8 x 22.4 x 40.0 mm / 1.72 x 0.88 x 1.57 inch
What’s Included
• 1 x MD980TW 22mm Coreless Titanium Gear High Torque Servo
