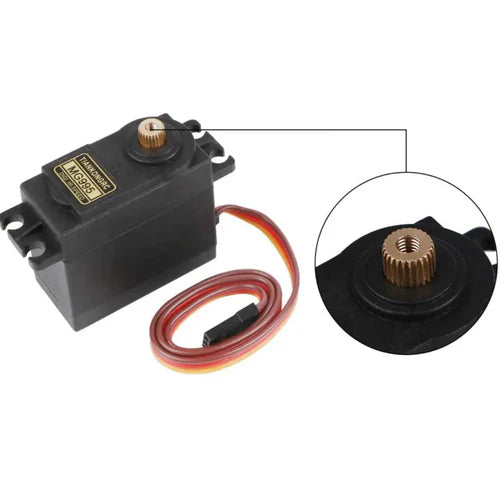

The MG995 Servo Motor RC Servo (20 kg, Metal Gear, 4-Pack) delivers high-torque performance, stable operation, and long-lasting durability. Built with a coreless motor and all-metal gear system, it ensures smooth, shockproof operation and excellent linearity for precision control in demanding applications.
With a controllable angle range from 0° to 180° and the ability to rotate freely within 360° when powered off, this servo offers flexibility for a wide range of RC and robotics projects. Its high-precision potentiometer and high-resolution digital chip provide consistent, accurate movement while reducing response delays.
The MG995 servo is compatible with most standard receiver connectors including Futaba, Hitec, Sanwa, and GWS, making it a versatile choice for RC helicopters, robotic arms, micro-robots, RC rock crawlers, RC boats, Arduino experiments, and various remote-control toys.
Key Features
-
High torque: up to 20 kg/cm with stable and shockproof performance
-
All-metal gear for strength, consistency, and long service life
-
Wide voltage range (3.0V–7.2V) for versatile applications
-
Precision control with minimal dead band (4 μs)
-
0–180° controllable rotation, 360° free rotation when unpowered
-
JR / Futaba plug compatibility
Specifications
| Parameter | Value |
|---|---|
| Stall Torque | 12 kg/cm (6 V), 13 kg/cm (7.2 V) |
| Operating Speed | 0.17 sec / 60° (4.8 V no load) / 0.13 sec / 60° (6.0 V no load) |
| Operating Voltage | 3.0 – 7.2 V |
| Gear Type | All Metal |
| Dead Band Width | 4 μs |

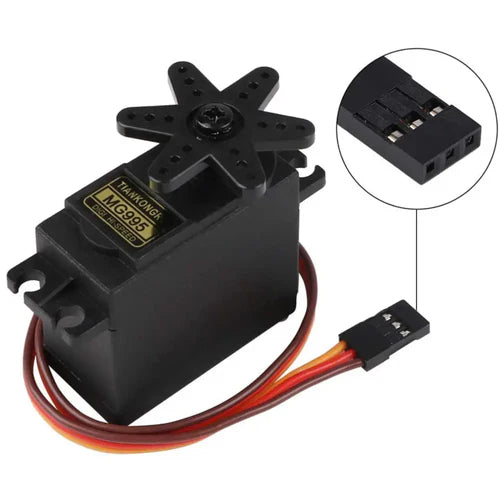

| Plug Specification | JR / FUTABA |
| Temperature Range | -30°C to +60°C |
| Power Supply | External adapter |
| Size | 40.7 × 19.7 × 42.9 mm (1.6 × 0.78 × 1.69 in) |

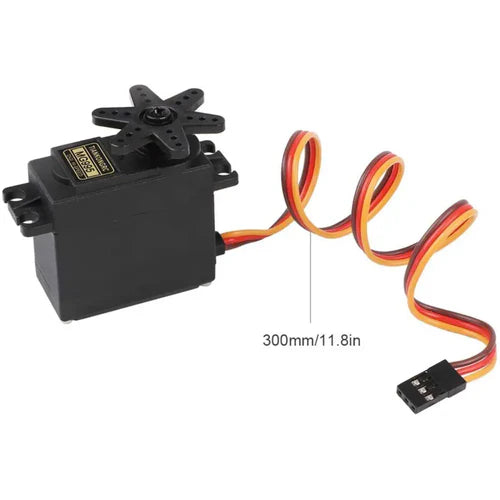

| Connector Wire Length | 300 mm (11.8 in) |
| Weight | 55 g |
Package Includes
-
4 × MG995 Servo Motor, RC Servo, 20 kg Metal Gear Servo
Optimized for robotics, RC models, and Arduino projects, this servo motor set offers unmatched reliability and power for hobbyists and professionals alike.
