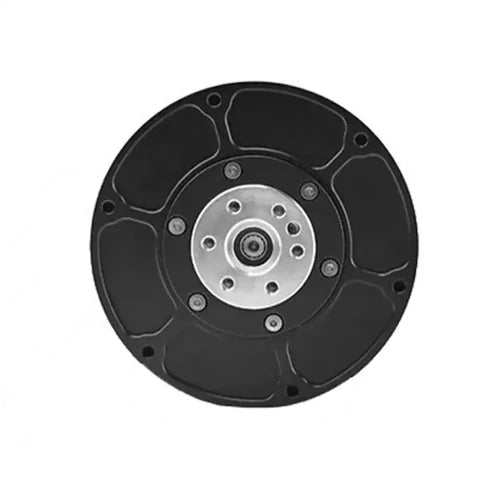

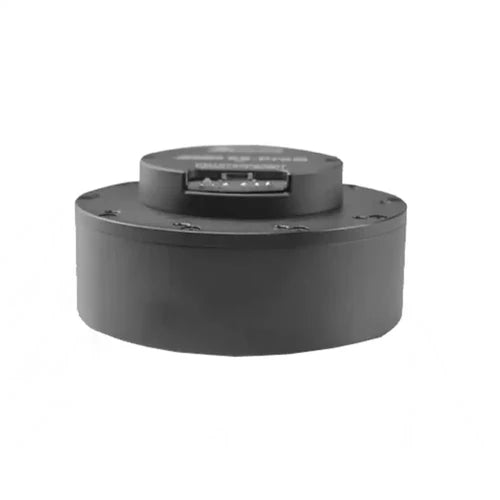

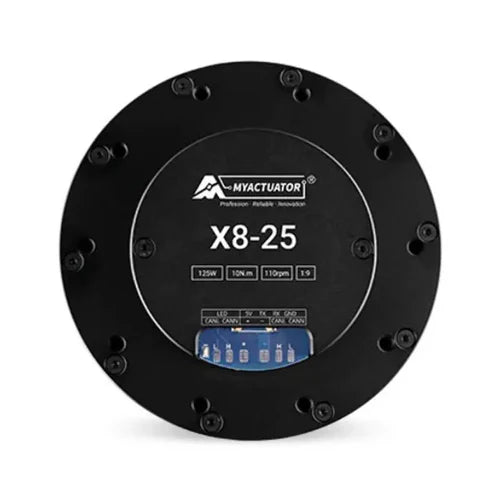

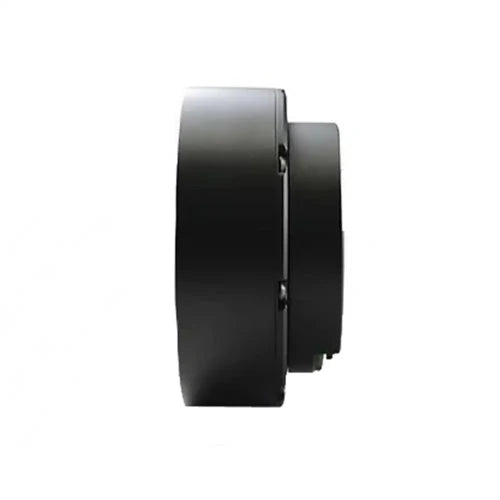

MYACTUATOR RMD X8-P9-25-C-N CAN Bus BLDC Actuator – 1:9 Planetary Reduction, 25 N·m Peak Torque, High-Efficiency Motor with MC-X-300-O Driver

MYACTUATOR RMD X8-P9-25-C-N CAN Bus BLDC Actuator – 1:9 Planetary Reduction, 25 N·m Peak Torque, High-Efficiency Motor with MC-X-300-O Driver

$649.99 USD
$649.99 USD
Sale Sold out
Shipping calculated at checkout.
View full details

Product Description:
The MYACTUATOR RMD X8-P9-25-C-N is a high-performance CAN Bus BLDC actuator designed for precision motion control applications. Featuring a 1:9 planetary reduction gearbox and coupled with the MC-X-300-O driver, this actuator delivers up to 25 N·m peak torque with exceptional reliability.

Powered by an input voltage range of 24–48 V, the actuator offers a nominal speed of 122 rpm and a no-load speed of 160 rpm at 48 V, achieving 77% motor efficiency. Its robust design includes 0.54 Ω resistance, 0.28 mH phase-to-phase inductance, and a torque constant of 2.6 N·m/A, ensuring smooth and precise torque output.

Built for heavy-duty applications, the actuator supports axial payloads of 985 N and radial payloads of 1250 N, with a rotor inertia of 3400 g·cm² and 20 pole pairs for precise rotational control. It operates efficiently in environments ranging from -20°C to 55°C and maintains minimal backlash of 10 arc minutes.

The RMD X8-P9-25-C-N’s CAN communication mode ensures seamless integration into robotic and automated systems, making it ideal for applications requiring high torque, compact design, and precise motor control. With a lightweight build of 710 g, it offers both power and flexibility for advanced engineering projects.

Specifications:

  • Motor Type: BLDC

  • Model: RMD-X8-P9-25-C-N

  • Reduction Ratio: 1:9

  • Input Voltage: 24–48 V

  • No-Load Speed: 160 rpm at 48 V

  • Nominal Speed: 122 rpm

  • Nominal Torque: 13 N·m

  • Peak Torque: 25 N·m

  • Nominal Current: 5 A

  • Nominal Power: 166 W

  • Motor Efficiency: 77%

  • Resistance: 0.54 Ω

  • Phase-to-Phase Inductance: 0.28 mH

  • Speed Constant: 30 rpm/V

  • Torque Constant: 2.6 N·m/A

  • Axial Payload: 985 N

  • Radial Payload: 1250 N

  • Rotor Inertia: 3400 g·cm²

  • Pole Pairs: 20

  • Operating Temperature: -20°C ~ 55°C

  • Backlash: 10 Arc min

  • Communication: CAN

  • Motor Weight: 710 g

  • Included: 1x RMD-X8-P9-25-C-N Actuator w/ MC-X-300-O Driver

Applications:
Ideal for robotics, automation systems, precise motion control, industrial machinery, and other high-torque compact actuator applications.
