Description:

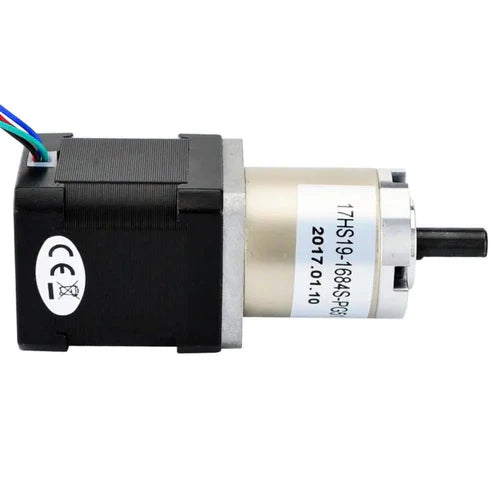

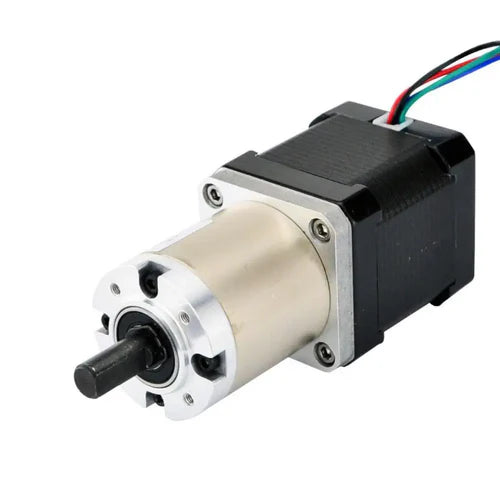

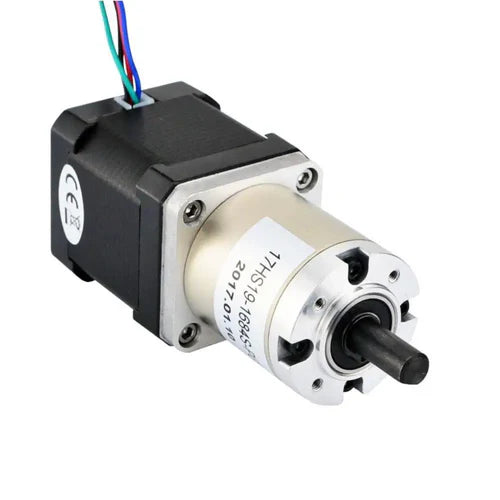

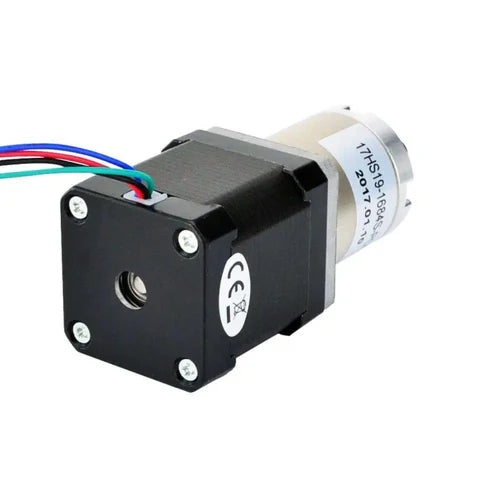

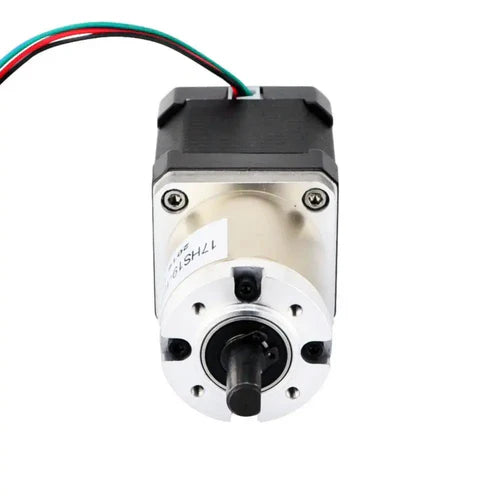

The Nema 17 Bipolar Stepper Motor with 51:1 Planetary Gearbox is a high-performance stepper motor designed for applications requiring precise motion control, compact size, and high torque output. Featuring a 48 mm body and a D-cut 8 mm shaft, this stepper motor delivers a stall torque of 566 oz-in while operating at a nominal voltage of 2.8 V and a rated current of 1.68 A.
Integrated with a 50.9:1 planetary gearbox, this motor is ideal for applications where low speed and high torque are essential but space is limited. Its robust design ensures reliable operation in 3D printers, CNC machines, robotics, and automated equipment.
Key Features:
-
Motor Type: Nema 17 Bipolar Stepper Motor
-
Gearbox: 51:1 Planetary for high torque and reduced speed
-
Stall Torque: 566 oz-in
-
Nominal Voltage: 2.8 V
-
Stall Current: 1.68 A
-
Shaft Diameter: Φ8 mm, D-cut
-
Compact Size: 42 x 42 x 48 mm, perfect for space-constrained setups
-
Applications: 3D printers, CNC machines, robotics, automation, and precise positioning systems
Package Includes:
1 x Nema 17 Bipolar Stepper Motor with 51:1 Planetary Gearbox
This high-torque, compact stepper motor is engineered to provide smooth, precise motion while reducing speed through its integrated planetary gearbox, making it an excellent choice for demanding mechanical applications.
nema-17-stepper-motor-bipolar-511-planetary-gearbox-datasheet2
nema-17-stepper-motor-bipolar-511-planetary-gearbox-datasheet1
