Description

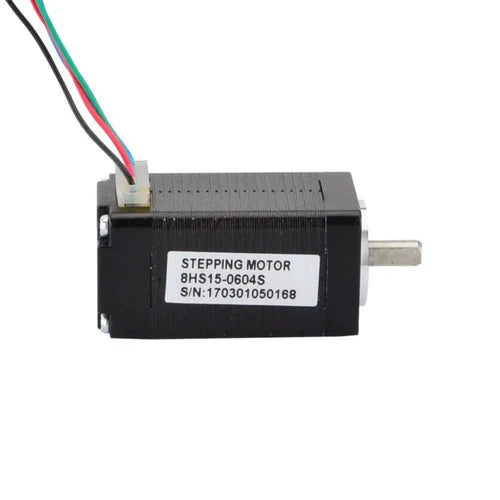

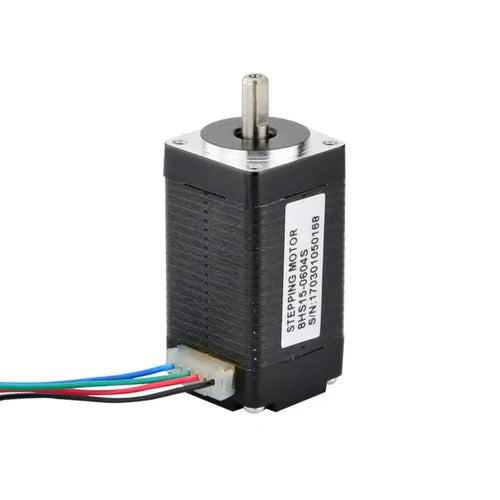

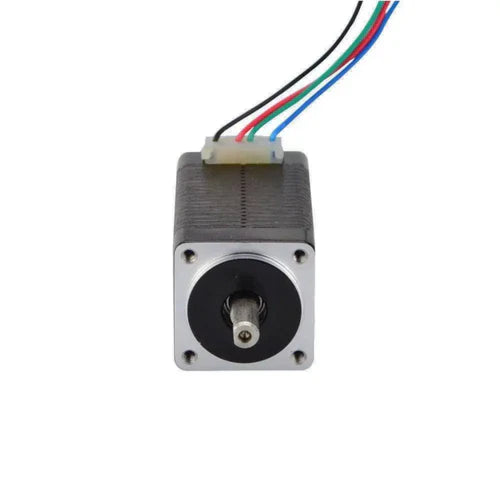

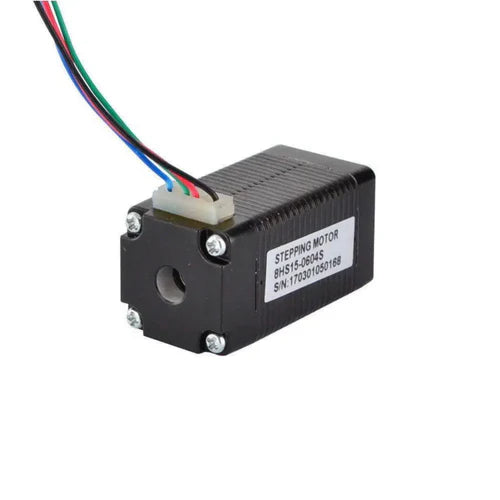

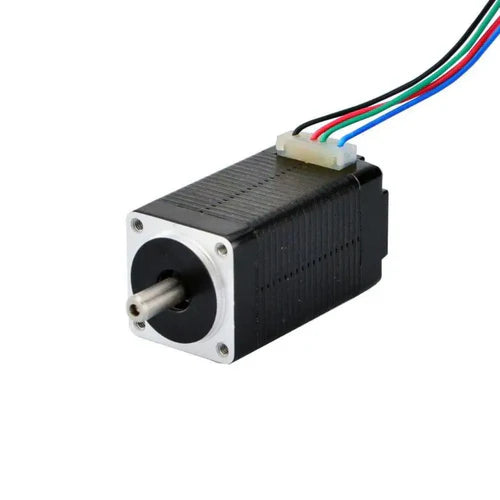

The Nema 8 Bipolar 1.8° 5.7oz·in 0.6A 6V Stepper Motor is a compact, high-precision stepper motor ideal for small-scale robotics, 3D printers, and automation projects requiring accurate control in a minimal form factor. With a step angle of 1.8° per step, it ensures smooth motion and precise positioning. Its bipolar 4-wire configuration allows easy integration with standard stepper motor drivers, while the high torque-to-size ratio makes it perfect for space-constrained designs.
The motor’s robust construction, D-cut 4mm shaft, and low operating current (0.6A) make it efficient and reliable for long-term use in precision applications.
Key Features
• Compact 20mm frame size, suitable for micro-mechanisms and embedded robotics
• 1.8° step angle provides smooth and accurate motion control
• 4-wire bipolar configuration compatible with most stepper drivers
• Holding torque of 5.7oz·in (4N·cm) ensures strong performance despite small size
• Durable metal body and D-cut shaft for secure coupling
• Ideal for 3D printers, CNC systems, and micro-automation equipment
What’s Included
• 1 × Nema 8 Bipolar 1.8° 5.7oz·in 0.6A 6V Stepper Motor
Specifications
| Parameter | Value |
|---|---|
| Model | 8HS15-0604S |
| Step Angle | 1.8° |
| Holding Torque | 5.7oz·in (4N·cm) |
| Rated Voltage | 6V |
| Rated Current/Phase | 0.6A |
| Number of Wires | 4 (Bipolar) |
| Shaft Diameter | 4mm (D-cut) |
| Motor Dimensions (L×W×H) | 20 × 20 × 38mm |
| Phase Resistance | ~10Ω |
| Body Material | Metal |
| Connector Type | JST 4-pin |
| Weight | Approx. 65g |
Applications
• Mini robotic joints and actuators
• Compact CNC and laser engraving systems
• Precision 3D printer extruders
• Automated laboratory instruments
• Camera sliders and focus mechanisms
Nema 8 Bipolar 1.8deg 5.7oz.in 0.6A 6V Stepper Motor Schematic
