Product Description

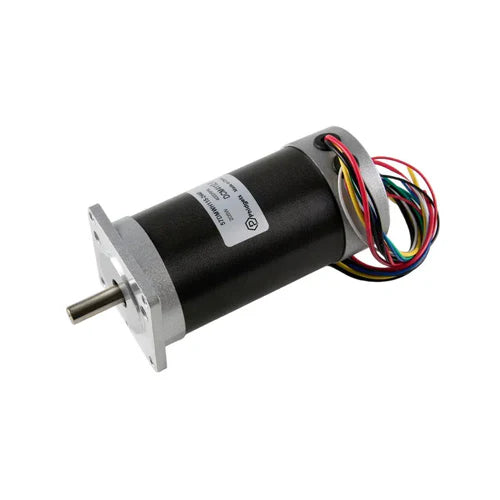

The NEMA23 Brushless DC Motor Gearless is a high-performance 4-pole BLDC motor designed for applications requiring smooth speed control, long lifespan, and quiet operation. Delivering up to 205 W output power and 5 kg·cm rated torque, this motor reaches speeds of 4000 RPM with excellent efficiency. Unlike brushed motors, it uses built-in hall-effect sensors to provide precise position and velocity feedback, making it suitable for robotics, automation, and CNC systems.

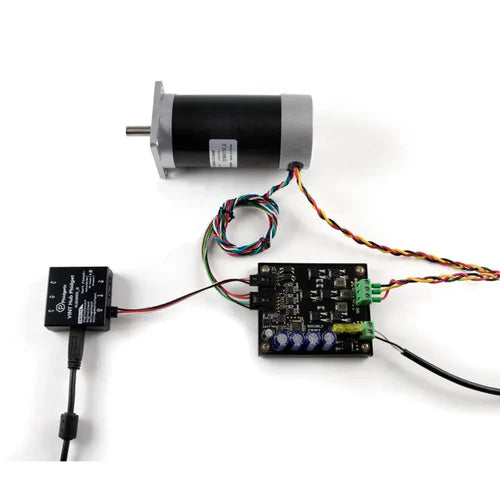

This motor must be paired with a brushless DC motor controller capable of sending control signals to the three motor wires while reading hall-effect feedback from the five signal wires. For convenience, it includes a 5-pin Molex connector pre-soldered to the hall-effect wires and ferrules crimped on the motor wires, ensuring fast and secure installation.
With a rugged NEMA23 mounting plate, compact size, and reliable performance, this motor is ideal for engineers and makers who demand both durability and precision.
Key Features
• Motor Type: Brushless DC Motor (BLDC)
• Number of Poles: 4
• Output Power: 205 W
• Rated Torque: 5 kg·cm
• Rated Speed: 4000 RPM
• Shaft Diameter: 8 mm
• Rated Voltage: 24 V DC
• Rated Current: 12 A
• Coil Resistance: 200 mΩ
• Connector: 5-Pin Molex for hall-effect sensor wires
• Pre-crimped ferrules for motor wire connections
• Quiet operation, long service life, and high efficiency
Applications
• CNC machinery and automation systems
• Robotics and mechatronics projects
• Conveyor and motion control systems
• Industrial equipment requiring precise speed and torque control
What’s Included
• 1x NEMA23 Brushless DC Motor Gearless
Mechanical & Electrical Specifications
• Mounting Plate Size: NEMA23 standard
• Shaft Diameter: 8 mm
• Operating Voltage: 24 V DC
• Rated Current: 12 A
• Coil Resistance: 200 mΩ
• Operating Temperature: -20 °C to +40 °C
