Product Description:
Upgrade your CNC, 3D printer, or automation project with the OpenBuilds NEMA 23 Bipolar High Torque Stepper Motor 345 oz-in. Designed for precision and power, this stepper motor delivers exceptional holding torque and smooth motion for demanding applications. Ideal for large-format builds, CNC routers, and heavy-duty automation systems, it ensures reliable performance and accurate positioning.
Key Features:
-
High Torque Performance: Delivers 345 oz-in holding torque to drive heavier loads with ease.
-
Bipolar 4-Wire Design: Ensures efficient current flow and enhanced motor performance.
-
Plug-and-Play Xtension Connectors: Includes male and female 4-pin connectors for fast and hassle-free wiring.
-
Flat Shaft Section: Provides better coupling torque and more secure connections.
-
Recommended Voltage: 24–48 VDC for optimal operation.
-
RoHS Compliant: Environmentally safe and meets modern electronics standards.

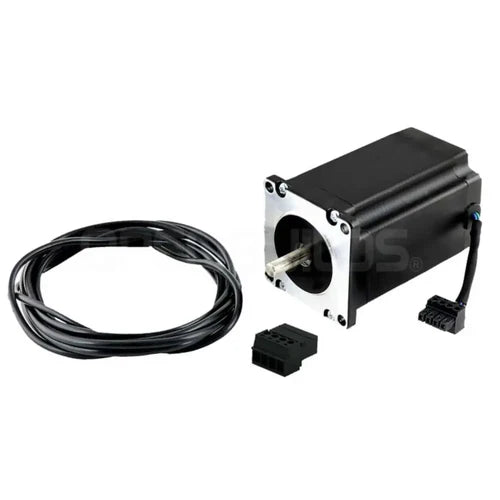

What’s Included:
-
1 × NEMA 23 High Torque Stepper Motor
-
1 × 7 ft (2.13 m) 4-conductor lead wire
-
1 × Xtension connector (4-pin male)
-
1 × Xtension connector (4-pin female)

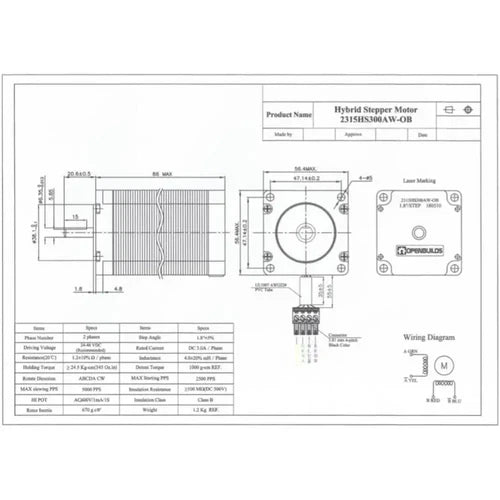

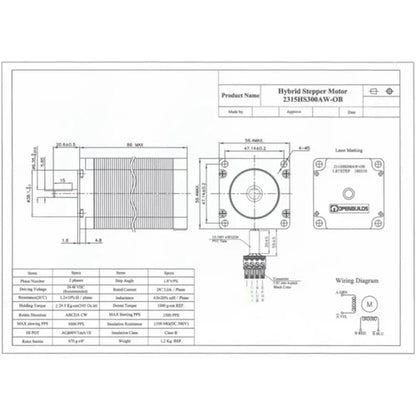

Specifications:
-
Phase: 2
-

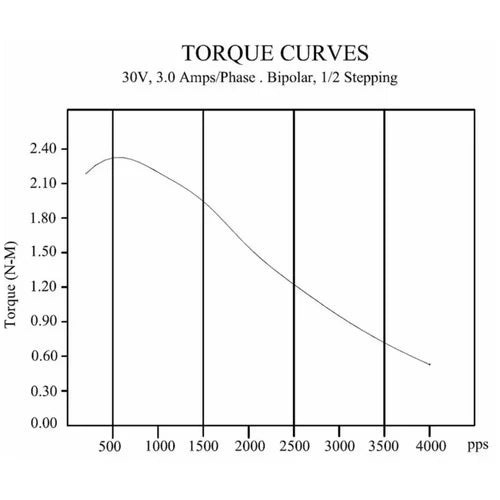

Torque: 345 oz-in
-
Step Angle: 1.8°
-
Wiring: 4-wire Bipolar
-
Shaft Size: 1/4 inch
-
Lead Wire Length: 7 ft (2.13 m)
-
Voltage: 24–48 VDC (Recommended)
-
RoHS Compliant
Take your builds to the next level with the OpenBuilds NEMA 23 High Torque Stepper Motor, engineered for precision, strength, and seamless integration.
