Description:

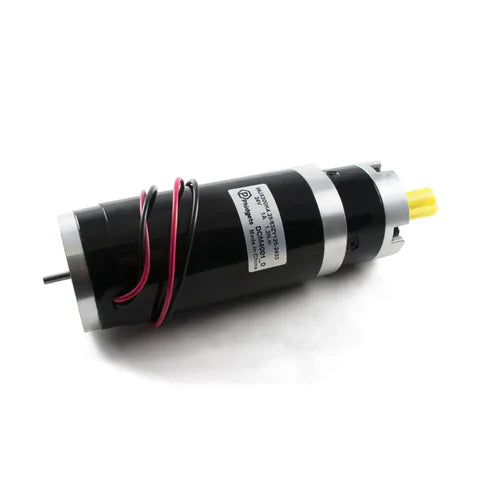

The Phidgets 24V DC Gear Motor DCM4001 is a high-performance motor engineered for precision, power, and versatility in a wide range of applications. Featuring a planetary gearbox with a 4.25:1 ratio, this motor delivers a substantial torque of 10.6 kg-cm and achieves a maximum speed of 772 RPM, making it ideal for robotics, automation, and industrial projects.
Designed for seamless integration with Phidgets DC Motor Controllers, the DCM4001 ensures optimized performance when paired with controllers capable of supplying 6.5 A or more. Its 4mm rear shaft allows for optional encoder mounting, enabling enhanced precision and accurate positional control for demanding tasks.
Constructed for durability and reliability, this motor incorporates a 12 mm shaft with a 4 mm keyway, a robust planetary gear train, and a low 3° backlash error to maintain consistent performance under load. With a mechanical output power of 100 W, stall torque of 63.3 kg·cm, and rated torque of 12.2 kg·cm, the DCM4001 is engineered to handle high-load operations efficiently.
Key Features:
-
Motor Type: DC
-
Rated Voltage: 24 V DC
-
Rated Current: 6.5 A, Stall Current: 22 A
-
Rated Speed: 772 RPM
-
Rated Torque: 12.2 kg·cm, Stall Torque: 63.3 kg·cm
-
Planetary Gearbox with 4.25:1 Ratio
-
Gear Strength: 6 N·m, Backlash: 3°
-
4 mm rear shaft for optional encoder mounting
-
High efficiency and reliable long-term performance
-
Weight: 1.9 kg
Included in Package:
-
1x Phidgets 24V DC Gear Motor DCM4001 (10.6 kg-cm Torque, 772 RPM, 4.25:1 Ratio)
Whether used for robotics, automation, or other precision machinery, the Phidgets DCM4001 24V DC Gear Motor combines high torque, speed, and reliability for consistent and controllable motion.
PDF File
phidgets-dcm4001-24v-dc-g…ratio-mechanical-drawing
