Pololu 100:1 Metal Gearmotor 37Dx57L mm 12V (Helical Pinion) – High Torque Brushed DC Gearmotor

Product Description

The Pololu 100:1 Metal Gearmotor 37Dx57L mm 12V (Helical Pinion) is a high-performance brushed DC motor designed for demanding robotics and automation applications. Equipped with a 102.08:1 all-metal gearbox, it delivers outstanding torque output while maintaining smooth and efficient operation.

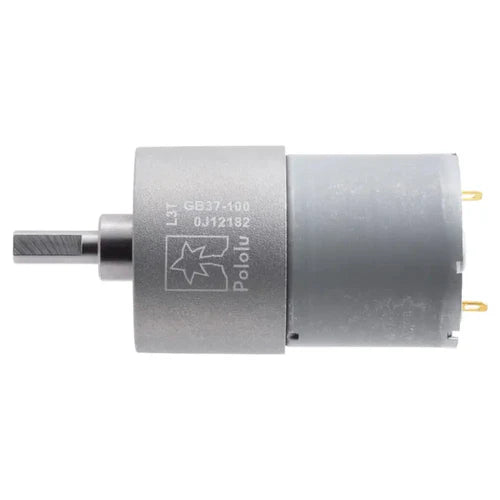

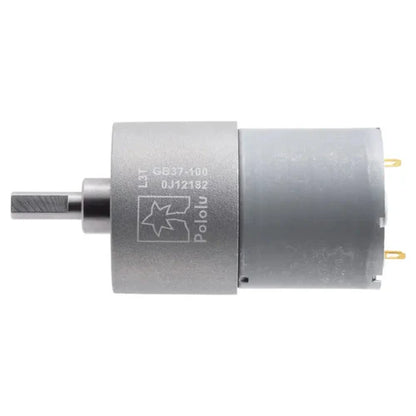

Unlike standard gearmotors, this model integrates helical gears on the first stage, reducing noise and improving efficiency. The gearbox features a 16 mm-long, 6 mm-diameter D-shaped steel output shaft, ensuring compatibility with a wide range of couplings, wheels, and adapters.

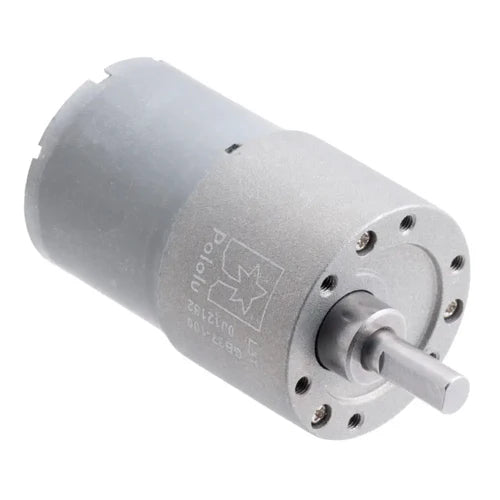

The gearmotor has a 37 mm diameter and a 57 mm length, making it Pololu’s largest and most powerful gearmotor series. It comes with a front faceplate featuring six M3 mounting holes arranged in a hexagonal pattern, with 15.5 mm spacing between adjacent holes, providing secure and versatile mounting options.

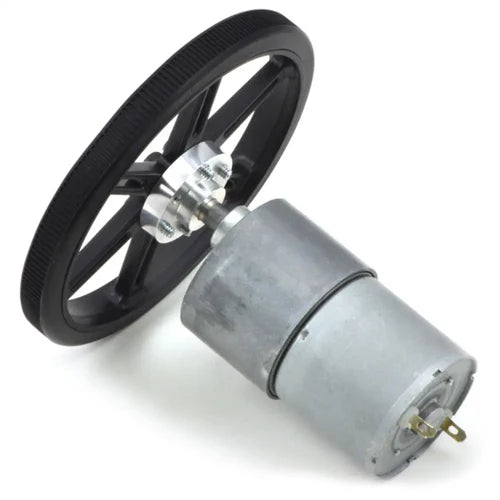

This unit is intended for 12 V operation, providing high torque with reliable performance. A 12 mm hex wheel adapter for the 6 mm shaft is included for easy integration into mechanical systems.

Key Features

• Powerful 12 V brushed DC motor with metal gearbox

• Gear ratio: 102.08:1 for high torque applications

• Helical gears on first stage reduce noise and improve efficiency

• 6 mm D-shaped output shaft (16 mm length) for secure coupling

• Six mounting holes on faceplate for stable installation

• 12 mm Hex wheel adapter included for easy wheel mounting

• Largest Pololu DC gearmotor series (37 mm diameter)

• Designed for reliable use in robotics, automation, and motion control

Specifications

• Motor Type: Brushed DC (12 V)

• Gear Ratio: 102.08:1

• No-load Speed @ 12 V: 100 rpm

• No-load Current @ 12 V: 0.2 A

• Stall Current @ 12 V: 5.5 A

• Stall Torque @ 12 V: 34 kg·cm (470 oz·in)

• Max Output Power @ 12 V: 8 W

• Performance at Maximum Efficiency (12 V):

  • Max Efficiency: 44%

  • Speed: 87 rpm

  • Torque: 4.2 kg·cm

  • Current: 0.72 A

  • Output Power: 3.8 W

• Performance at 6 V:

  • No-load Speed: 49 rpm

  • No-load Current: 0.15 A

  • Stall Current: 3.0 A

  • Stall Torque: 21 kg·cm

• Dimensions: 37 mm (D) × 57 mm (L)

• Shaft Diameter: 6 mm (D-shaped), 16 mm length

• Weight: 195 g

• Encoders: Not included

What’s Included

• 1 × Pololu 100:1 Metal Gearmotor 37Dx57L mm 12V (Helical Pinion)

• 1 × 12 mm Hex wheel adapter for 6 mm shaft

Applications

• Robotics drive systems

• Precision automation equipment

• Motion control projects

• High-torque wheeled robots

• DIY engineering and prototyping
