Description:

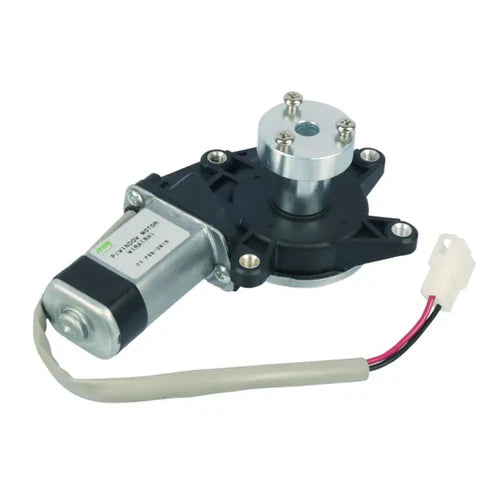

Upgrade your robotics project with the Power Window Motor with Coupling (Right), specially designed for ease of use and high performance. Originally compatible with the Proton Wira power window system, this right-side motor operates on a 12V DC power supply and delivers a no-load speed of 85 ± 15 RPM.

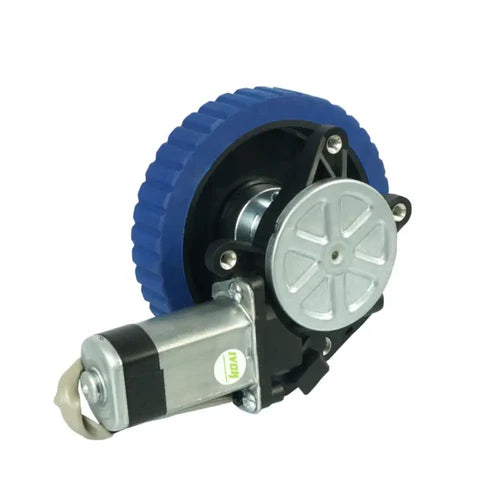

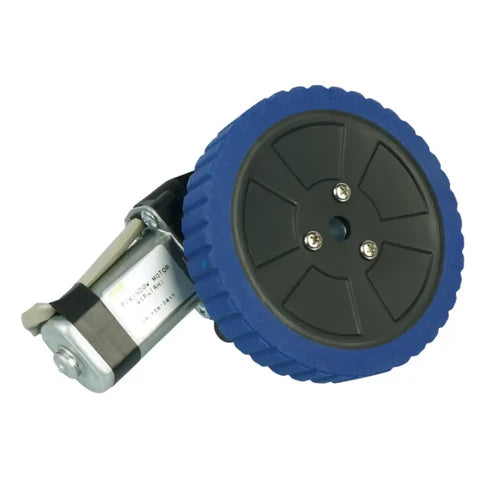

Unlike standard power window motors, the integrated custom coupling/hub allows for easy attachment to 5-inch robot wheels with just 3 screws, simplifying the construction of combat robots, mobile platforms, or other mechanical projects. The coupling can also accommodate additional mechanisms, thanks to the provided mechanical and dimension drawings.
Specifications:
-
Rated Speed: 60 ± 15 RPM
-
No-Load Current: <5A
-
Rated Load Current: <15A
-
Stall Current (Locked): <28A at 12V
-
Rated Torque: 30 Kg·cm (2.9 N·m)
-
Stall Torque (Locked): 100 ± 15 Kg·cm (~10 N·m)
-
Perfectly fits 5-inch robot wheels
-
Weight: 696 g
Package Includes:
-
Power Window Motor with Custom Coupling/Hub
-
3 x Round Head M5 Screws
This high-torque, reliable motor is ideal for robotics enthusiasts, combat robot builders, and anyone needing a robust, easy-to-mount motor solution. Its sturdy design ensures long-lasting performance while making your robot-building process smooth and enjoyable.
