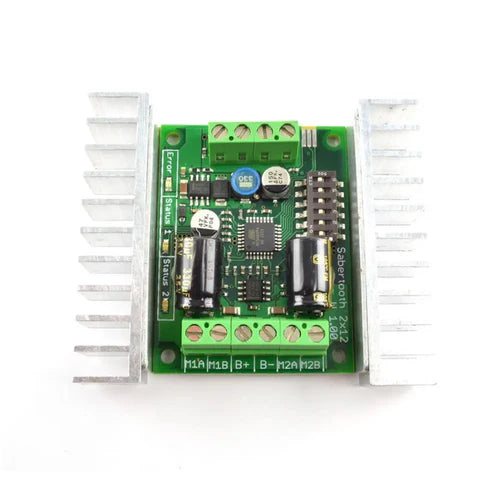

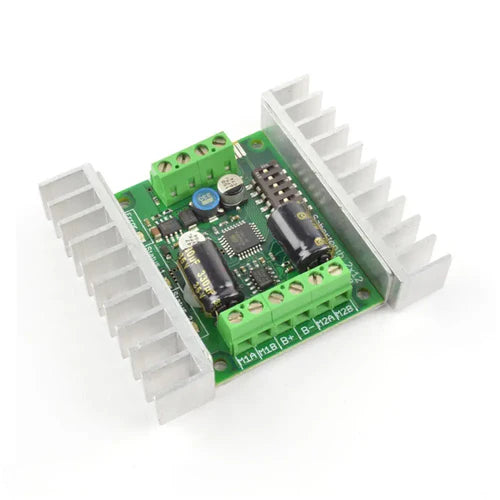

The Sabertooth Dual 12A 6V-24V Regenerative Motor Driver is a high-performance, versatile dual motor controller designed for medium-powered robotic applications. As the upgraded version of the Sabertooth 2x10, it delivers improved efficiency, expanded control options, and enhanced protection features—making it one of the most reliable motor drivers in its class.
Engineered to handle two brushed DC motors simultaneously, Sabertooth can supply 12A continuous per channel and up to 25A peak for a few seconds. This makes it ideal for robots up to 30 lbs in combat use or 100 lbs in general-purpose robotics. Its regenerative capability returns unused power to the battery, improving overall efficiency and runtime.
The driver supports multiple input modes—Analog, R/C, Simplified Serial, and Packetized Serial—allowing seamless integration with a wide range of control systems. Independent or combined speed + direction modes make it perfect for differential drive (tank-style) robots, remote-controlled platforms, and experimental robotics.
With its ultra-sonic switching frequency, the Sabertooth ensures quiet motor operation, while thermal and overcurrent protection safeguards against damage from stalls or oversized motors. A dedicated Lithium protection mode prevents over-discharging of Li-based batteries, extending their lifespan.
Setup is straightforward thanks to onboard DIP switches for mode selection (no jumpers required) and screw terminal connectors for solder-free wiring.
Key Features
-
Dual regenerative motor driver, 12A continuous per channel (25A peak)
-
Input voltage range: 6V to 24V
-
Supports Analog, R/C, Simplified Serial, and Packetized Serial control modes
-
Independent and speed + direction operating modes for flexible control
-
Regenerative braking for efficient energy use
-
Ultra-sonic switching frequency for quiet operation
-
Built-in thermal and overcurrent protection
-
Lithium protection mode for battery safety
-
DIP switch mode selection – no jumpers needed
-
Screw terminal connectors for easy, solder-free wiring
Specifications
-
Continuous Current: 12A per channel
-
Peak Current: 25A (short duration)
-
Input Voltage: 6V – 24V DC
-
Control Modes: Analog, R/C, Simplified Serial, Packetized Serial
-
Mounting Hole Configuration: 1.5 x 2 in
-
Dimensions: 64 x 75 x 16 mm
Applications
-
Medium-powered combat robots (up to 30 lbs)
-
General-purpose robots (up to 100 lbs)
-
Differential drive (tank-style) robots
-
Remote-controlled platforms
-
Experimental and educational robotics projects
What’s Included
-
1x Sabertooth Dual 12A 6V-24V Regenerative Motor Driver
