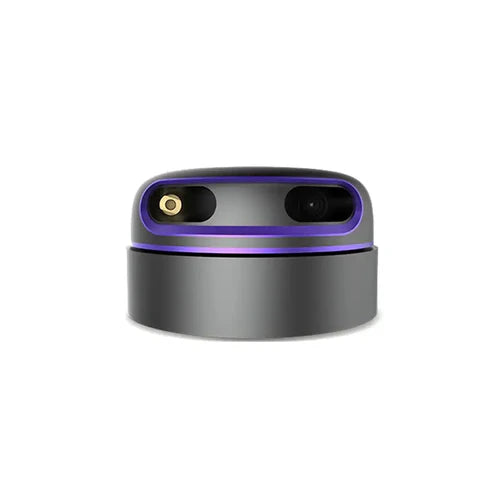

Slamtec RPLIDAR A3 360° Laser Scanner – 25 m High-Performance LiDAR for Robotics and Mapping

Slamtec RPLIDAR A3 360° Laser Scanner – 25 m High-Performance LiDAR for Robotics and Mapping

$738.45 USD
$738.45 USD
Sale Sold out

The Slamtec RPLIDAR A3 is a high-performance 360° laser scanner designed for precise indoor and outdoor mapping, navigation, and obstacle detection. Featuring a maximum ranging distance of 25 meters (white objects, enhanced mode) and a sampling rate of up to 16,000 times per second, it delivers exceptional accuracy and reliability for robotics, automation, and research applications.

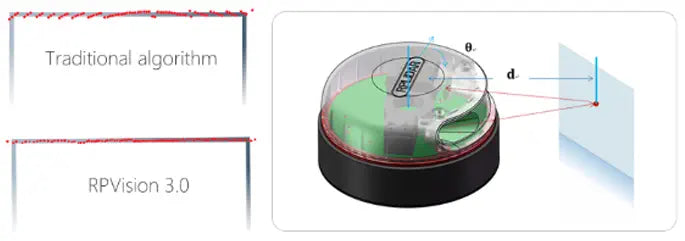

Equipped with Slamtec’s optimized optical design and RPVision high-speed ranging engine, the RPLIDAR A3 captures more environmental data, enabling faster and more accurate map building than most competing LiDAR sensors. It operates in two selectable modes:

  • Enhanced Mode – Maximum range and sampling rate for optimal indoor performance.

  • Outdoor Mode – Improved daylight resistance for stable detection in both indoor and outdoor environments.

With 0.225° angular resolution, full 360° omnidirectional scanning, and compact 41 × 76 mm dimensions, the RPLIDAR A3 is ideal for service robots, autonomous vehicles, drones, and intelligent monitoring systems. The durable, precisely engineered internal mechanical system ensures stable operation, while the UART communication interface supports compatibility with former Slamtec SDK protocols.

Key Features

  • 360° omnidirectional scanning with laser triangulation ranging

  • Max range up to 25 m for white objects in enhanced mode

  • High-speed sampling: up to 16,000 times/sec (enhanced mode)

  • Dual operating modes for indoor and outdoor adaptability

  • High angular resolution of 0.225° for detailed environment mapping

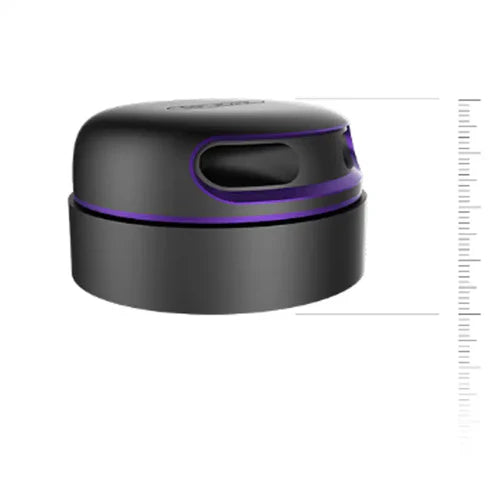

  • Compact design (only 4 cm thick) for easy robot integration

  • SDK compatibility with previous Slamtec LiDAR models

  • Stable daylight interference resistance in outdoor mode

Specifications

Parameter Enhanced Mode Outdoor Mode
Distance Range – White Object 25 m 20 m
Distance Range – Dark Object 10 m TBD
Sample Rate 16,000 times/sec 10,000 times/sec
Scan Rate 10–20 Hz (typical 15 Hz) 10–20 Hz (typical 15 Hz)
Angular Resolution 0.225° 0.225°
Angular Range 360° 360°
Range Resolution ≤1% (≤12 m), ≤2% (12–25 m) Same as enhanced mode
Accuracy 1% (≤3 m), 2% (3–5 m), 2.5% (5–25 m) Same as enhanced mode

General Specifications

  • Communication Interface: TTL UART (3.3V)

  • Communication Speed: 256,000 bps

  • System Voltage: 5 V

  • System Current: 450 – 600 mA

  • Power Consumption: 2.25 – 3 W

  • Operating Temperature: 0 – 40 ℃

  • Dimensions (H × D): 41 × 76 mm

Package Includes

  • 1 × RPLIDAR A3M1 Unit

  • 1 × USB Adapter

  • 1 × Micro-USB Cable

  • 1 × Power Adapter

View full details
