Description

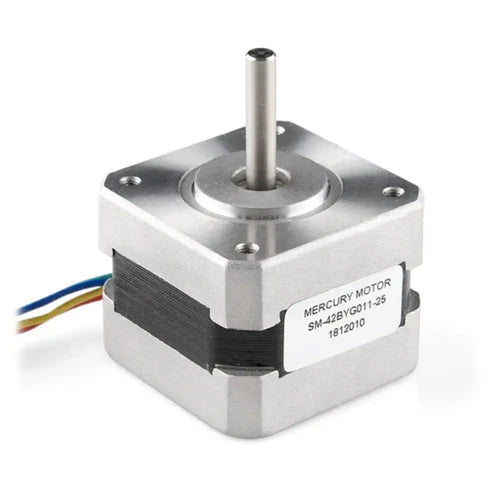

The SparkFun Stepper Motor with Cable is a reliable and efficient NEMA 17 stepper motor designed for precision motion control projects. This bipolar stepper motor comes with an attached 4-wire cable, making it easy to integrate into your electronics and robotics applications without additional wiring hassle.
With a 1.8° step angle (2 phase), it delivers smooth and accurate positioning, while the 2.3kg*cm holding torque ensures strong performance even under demanding conditions. Its 5mm diameter drive shaft is compatible with a wide range of couplers and gears, making it versatile for CNC machines, 3D printers, robotics, and other motion control systems.
Built with high-quality materials, this motor provides long-lasting durability, stable torque output, and excellent responsiveness for both hobbyists and professionals.
What’s Included
-
1 × SparkFun Stepper Motor with Cable
Specifications
-
Step Angle: 1.8° / 2 Phase
-
Holding Torque: 2.3kg*cm
-
Drive Shaft Diameter: 5mm
-
Rated Voltage: 12V
-
Rated Current: 0.33A
-
Winding Resistance: 32.6 Ω
-
Winding Inductance: 48 mH
-
Max Flux Linkage: 1.8 Vs
-
Maximum Detent Torque: 0.016 N·m
-
Total Inertia: 3.5 kg·m·m
-
Total Friction: 4 kg·m/s
-

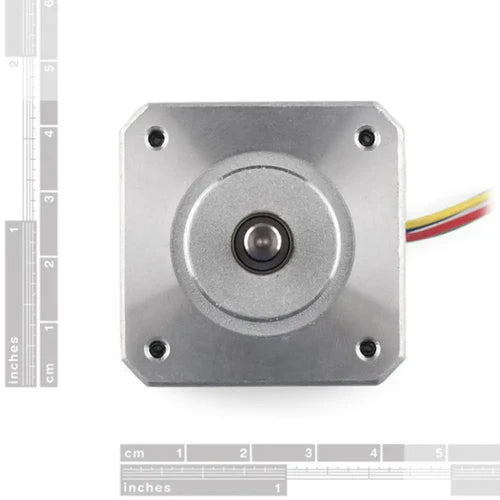

Mounting Standard: NEMA 17 hole pattern (31mm)
-
Motor Width: 42mm (1.67”)
Key Features
-
Pre-attached 4-wire cable for quick setup
-
Bipolar NEMA 17 stepper motor with strong holding torque
-
High precision with 1.8° step angle
-
Ideal for 3D printers, CNC machines, and robotics projects
-
Compact and durable design for long-term use
