Description

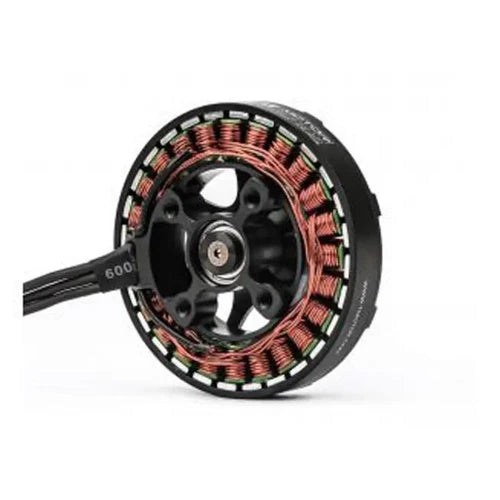

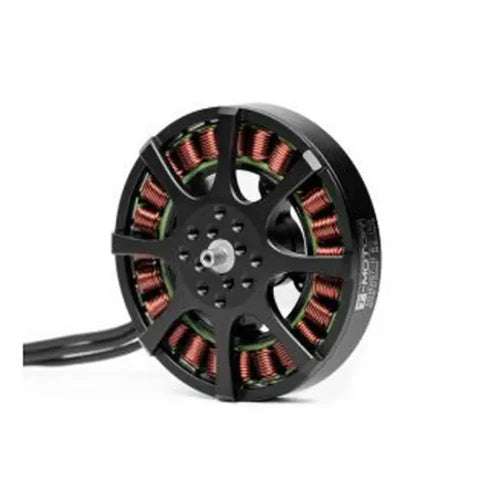

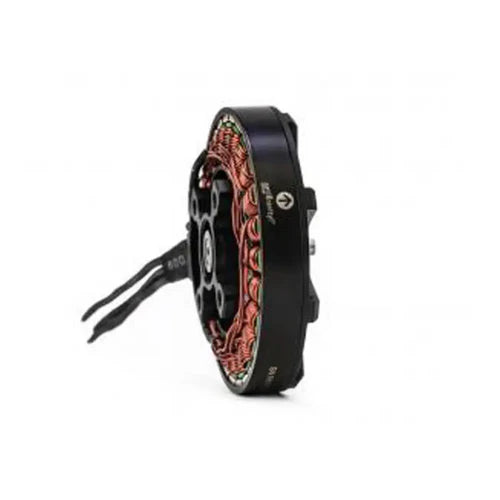

The T-Motor Antigravity MN6007II KV320 Brushless Motor is designed for professional UAVs, aerial photography drones, and mapping platforms requiring high efficiency, stability, and long flight endurance. With an ultra-lightweight construction and precision-balanced design, this motor delivers exceptional thrust-to-weight performance and smooth operation, ideal for high-end drone applications.
It provides a recommended single-axis take-off thrust of 2 kg and can achieve up to 6.5 kg of full-throttle thrust, making it suitable for medium and heavy-lift drones. The MN6007II is compatible with various propeller sizes and features a robust structure that supports payloads such as cameras, LiDAR units, or rescue equipment.
This motor is built with anti-rust stator coating, high-temperature-resistant magnets, and reinforced insulation, ensuring reliable performance under demanding environmental conditions. Rated at IP25, it resists dust and moisture, providing long service life and stability during extended missions.
Key Features
• Ultra-lightweight, efficient, and reliable design for UAVs
• 2 kg recommended take-off thrust per axis
• Maximum full-throttle thrust of 6.5 kg
• Suitable for aerial photography, mapping, and industrial drones
• IP25-rated protection against dust and moisture
• High-temperature-resistant materials for stable performance
• Precision-balanced rotor for smooth operation
• Easy installation with standard mounting holes
Specifications
| Parameter | Value |
|---|---|
| Model | T-Motor Antigravity MN6007II KV320 |
| KV Rating | 320 KV |
| Idle Current (18V) | 1.0 A |
| Peak Current (180s) | 44.2 A |
| Max Power (180s) | 1040 W |
| Rated Voltage (Lipo) | 6S |
| Internal Resistance | 47.5 mΩ |
| Recommended Take-Off Thrust (per axis) | 2 kg |
| Maximum Thrust (per axis) | 6.5 kg |
| IP Rating | IP25 |
| Motor Dimensions | Φ 67.2 x 26.1 mm |
| Shaft Inner Diameter | 6 mm |
| Shaft Outer Diameter | 4 mm |
| Enameled Wire Length | 70 mm |
| Weight (incl. cable) | 161 g |
| Stator Treatment | Anti-rust coating, 180°C insulation |
| Magnet Temperature Resistance | 150°C (Level E) |
| Copper Wire Temperature Resistance | 220°C (Level C) |
| Coil Insulation Test | 500 V |
| Rotor Balance Tolerance | ≤ 5 mg |
What’s Included
• 1 × T-Motor Antigravity MN6007II KV320 Brushless Motor
Recommended Applications
• Professional aerial photography drones
• Mapping and surveying UAVs
• Agricultural and industrial UAVs
• Search & rescue drones
• Heavy-lift multicopters
