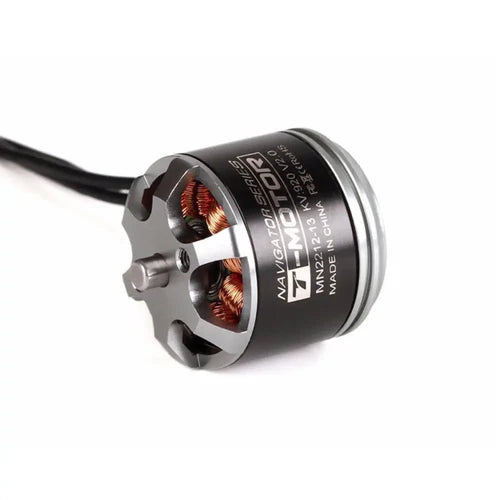

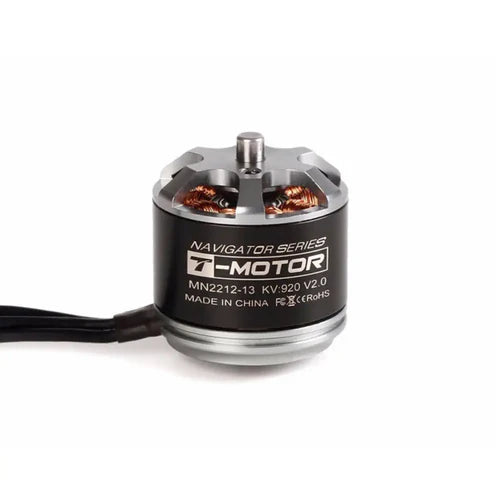

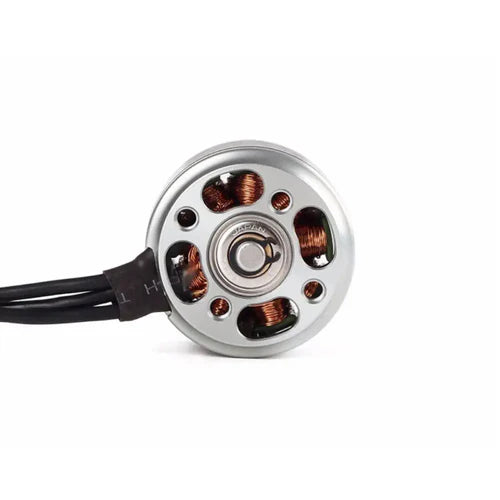

The T-Motor Navigator MN2212 V2 920KV Brushless Motor is a high-quality, durable, and smooth-running motor designed for aerial photography and multirotor UAV applications. Built with precision and reliability in mind, this motor features custom assembly methods and components unique to the Navigator series, ensuring a dependable performance for your drone platform. Equipped with high-quality EZO bearings, the MN2212 V2 provides smooth operation at low speeds, stable frame support under load, and extended motor life.
Key Features:
• Max Continuous Current 180S: 15A
• Shaft Diameter: 4mm
• Stator Diameter: 22mm
• Stator Height: 13mm
• Idle Current@10V: 0.5A
• Internal Resistance: 142mΩ
• Configuration: 9N12P
• No. of Cells (LiPo): 2-4S
• Max Continuous Power 180S: 220W
• Cable Length: 400mm
• Weight Including Cables: 65g
• Weight Excluding Cables: 54g
Why Choose T-Motor Navigator MN2212 V2:
• Reliable high-quality brushless motor for aerial photography and UAVs
• Large, precision EZO bearings for smooth running and long life
• Stable performance under low-speed operations and load
• Lightweight and compact design for easy integration into multirotor platforms

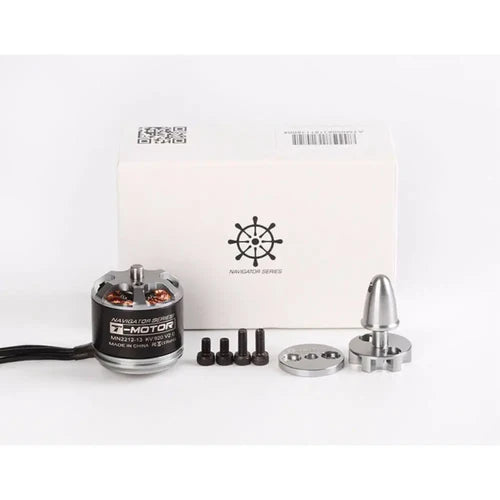

Package Includes:
• 1 x T-Motor Navigator MN2212 V2 920KV Brushless Motor

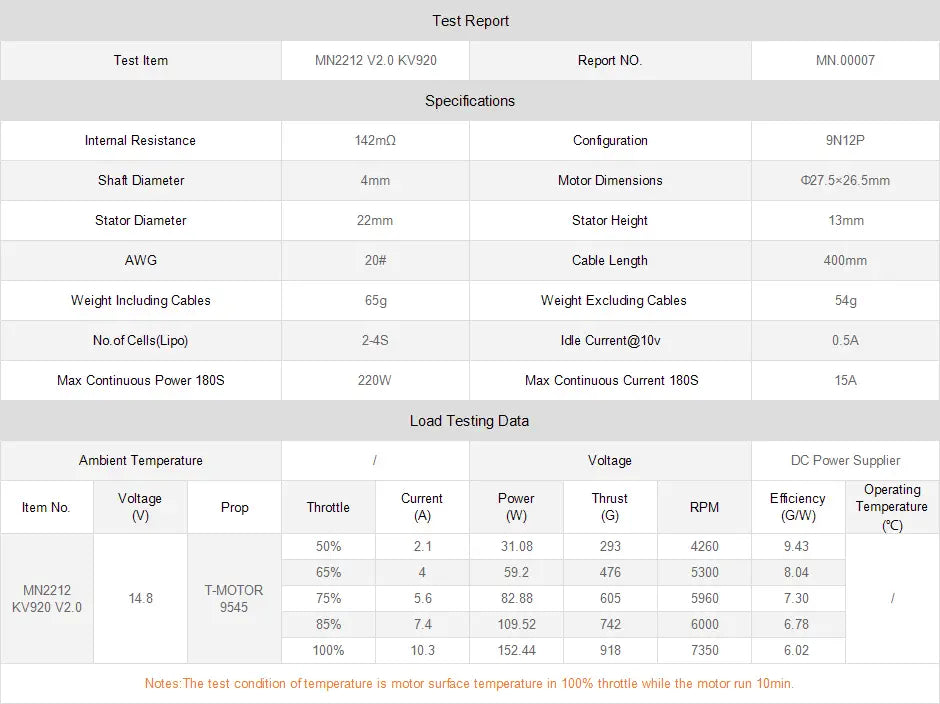

Specifications:
• Internal Resistance: 142mΩ
• Idle Current@10V: 0.5A
• Shaft Diameter: 4mm
• Stator Diameter: 22mm
• Stator Height: 13mm
• Cable Length: 400mm

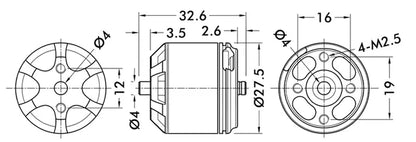

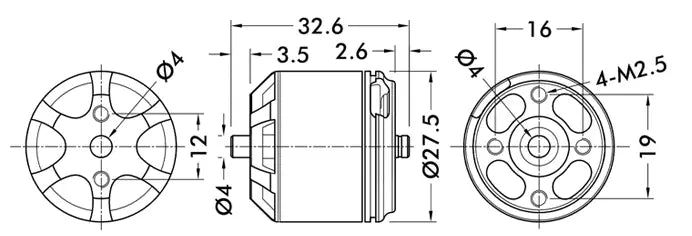

• Motor Dimensions: 27.5 x 26.5mm
• Weight Including Cables: 65g
• Weight Excluding Cables: 54g
• Max Continuous Current 180S: 15A
• Max Continuous Power 180S: 220W
• Configuration: 9N12P
• AWG: 20#
• Recommended LiPo: 2-4S
