Description
The T-Motor Navigator MN3510 360KV Brushless Motor is engineered for professional aerial photography and multirotor applications. Designed with high-strength construction and precision CNC manufacturing, this motor ensures excellent durability, stability, and performance. Its ultra-smooth bearing system, featuring large ball bearings for low-speed operations, delivers extended service life and reduced vibration—ideal for drone frames requiring consistent balance and thrust stability.
Built to provide powerful yet efficient performance, the MN3510-13 offers up to 330W of continuous power with excellent efficiency above 85%. It’s compatible with 3–6S LiPo batteries, making it a flexible choice for medium-sized UAVs, mapping drones, and FPV aerial systems.
Key Features
• 360KV rating – ideal for 3–6S LiPo UAV builds
• Precision CNC aluminum design for superior strength-to-weight ratio
• Dual large bearings for smoother and quieter operation
• High efficiency with minimal internal resistance
• Lightweight 97g construction for optimal flight balance
• Includes prop adapter and mounting hardware for quick setup
Specifications
| Parameter | Value |
|---|---|
| Model | T-Motor Navigator MN3510-13 |
| KV Rating | 360 KV |
| Configuration | 12N14P |
| Stator Diameter | 35 mm |
| Stator Length | 10 mm |
| Shaft Diameter | 4 mm |
| Motor Dimensions (Dia × Len) | Φ41.8 × 28.5 mm |
| Weight | 97 g |
| Idle Current (10V) | 0.4 A |
| Input Voltage (LiPo) | 3–6S |
| Max Continuous Current (180s) | 15 A |
| Max Continuous Power (180s) | 330 W |
| Max Efficiency Current | 2–8 A (>85%) |
| Internal Resistance | 188 mΩ |
| Recommended RPM | 2600 RPM |
| Construction | CNC-Machined Aluminum |
| Country of Origin | Made in China |
What’s Included
• 1 × T-Motor MN3510 360KV Brushless Motor

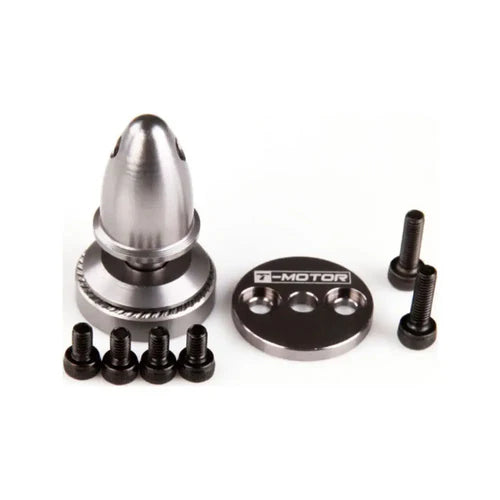

• 1 × Prop Adapter Set (Mounting Plate + Screws + Cap)
• 1 × Hardware Pack
Applications
• Aerial photography drones
• Surveying and mapping UAVs
• FPV racing and freestyle multirotors
• Educational and research drones
