Product Description:
The TMotor UAV Brushless Motor Antigravity MN5008 KV170 delivers exceptional performance for high-demand UAV applications. Featuring high-temperature-resistant wires and premium bearings, this motor ensures smooth operation with low cogging torque, supporting a 4 kg quadcopter with up to 60 minutes of flight time. Engineered for agile maneuverability, it provides a maximum thrust of 4.2 kg, enabling fast acceleration and precise braking for capturing every critical moment. Ideal for emergency rescue missions, the motor maintains a temperature of only 89 °C after 10 minutes under a 754 W load, ensuring reliable operation even in high-temperature conditions. The motor’s superior design incorporates imported 0.2 mm silicone steel sheets with high magneto-conductivity, optimized arc magnets, and a logical multislot structure to maximize efficiency, minimize noise, and reduce cogging torque.
Key Features:
• High-temperature-resistant wire and premium bearings for long-lasting durability
• Supports 4 kg quadcopter with 60-minute flight time
• Smooth operation with low cogging torque for precise control

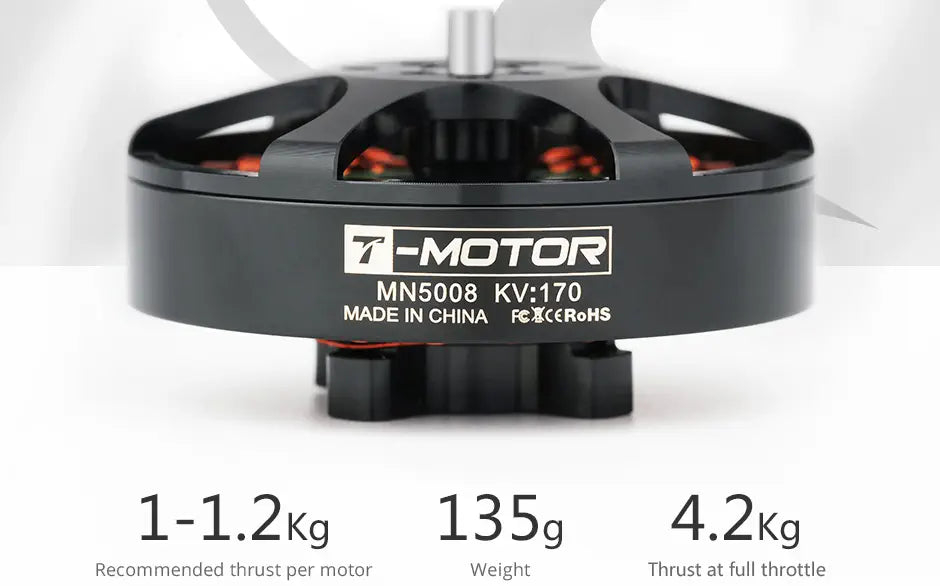

• Maximum thrust up to 4.2 kg for agile maneuvers
• IP35 rated protection for dust and moisture resistance
• Excellent thermal performance: 89 °C after 10 mins under 754 W load
• Imported 0.2 mm silicone steel sheets with high magneto-conductivity
• Optimized arc magnets and multislot structure for efficiency and low noise
• Centrifugal cooling design for stable performance
• Rotor dynamic balance ≤15 mg and motor dynamic balance ≤10 mg
Specifications:

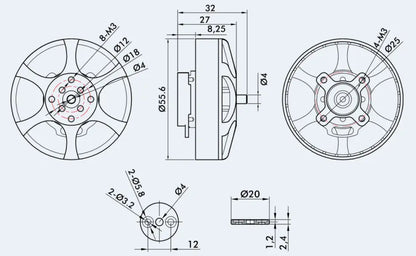

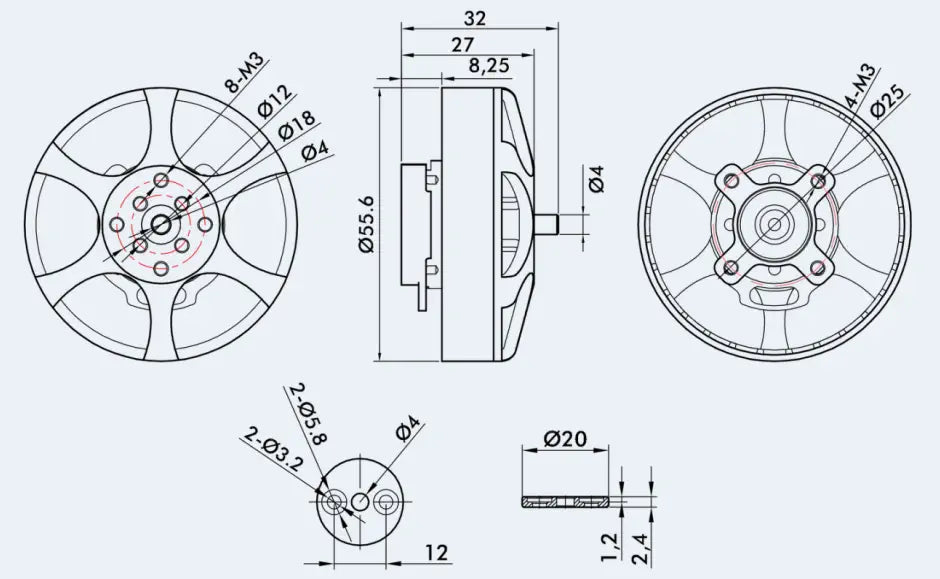

• Motor Size: Φ 55.6 x 32 mm | Shaft Inner Diameter: 6 mm | Lead Cable Length: 80 mm
• Idle Current (22 V): 0.4 A | Peak Current (180s): 15 A | Max Power (180s): 720 W
• Rated Voltage: 6 – 12S Lipo | ESC Recommendation: FLAME 60A 12S
• Stator: Imported silicon steel sheet with anti-rust treatment and 180 °C high-temperature coating
• Magnet Level: 150 °C high-temperature resistance, Level E
• Copper Wire: 180 °C high-temperature resistance, Level H
• Coil Insulation Test: 500 V
What’s Included:
• 1x TMotor UAV Brushless Motor Antigravity MN5008 KV170 (128 g, including cable)
