Product Description
The Unitree Go2 Robot Dog Battery is a high-performance rechargeable lithium battery designed specifically for the Unitree Go2 quadruped robot platform. Featuring advanced battery management technology (BMS), fast charging capability, and long runtime performance, this battery provides stable and reliable power for robotics development, AI research, inspection robots, and autonomous mobile robot applications.

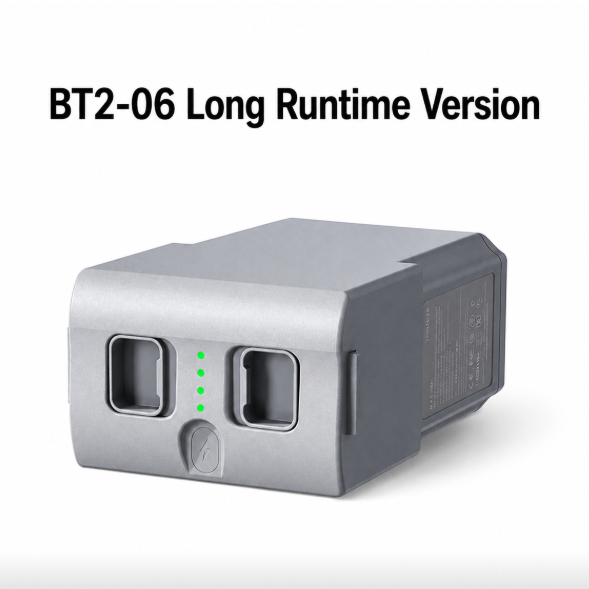

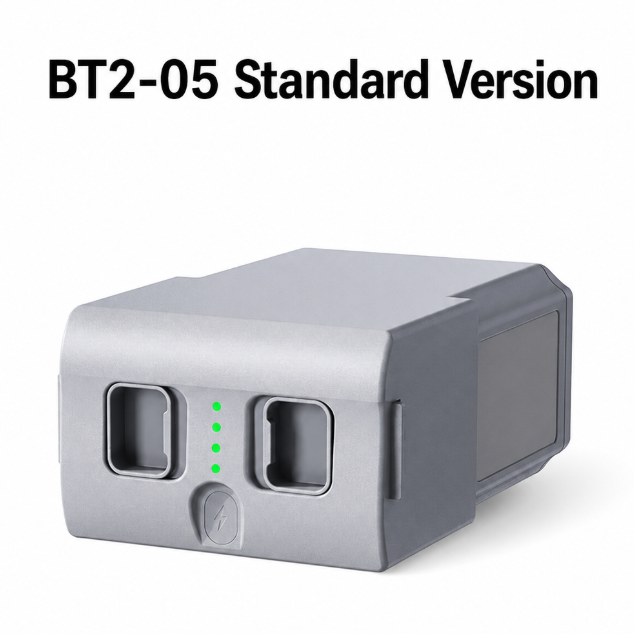

Available in both Standard Version (BT2-05) and Long Runtime Version (BT2-06), the battery uses high-performance lithium cells and supports intelligent protection functions for safe and efficient operation.
The built-in smart BMS system includes eight layers of protection, including overcharge, over-discharge, overcurrent, temperature, short-circuit, and load detection protection to improve operational safety and battery lifespan.
Designed for fast charging and extended endurance, this battery is ideal for robotics developers, researchers, automation engineers, and advanced robotic dog applications.
Key Features
- Designed specifically for Unitree Go2 robot dogs
- Available in BT2-05 Standard and BT2-06 Long Runtime versions
- Fast charging and extended runtime performance
- Advanced intelligent BMS battery management system
- Stable high-power output for robotic applications
- Eight-layer battery protection system
- High-performance lithium battery cells
- Reliable power supply for quadruped robots
- Compact and durable battery design
- Suitable for robotics research and AI development

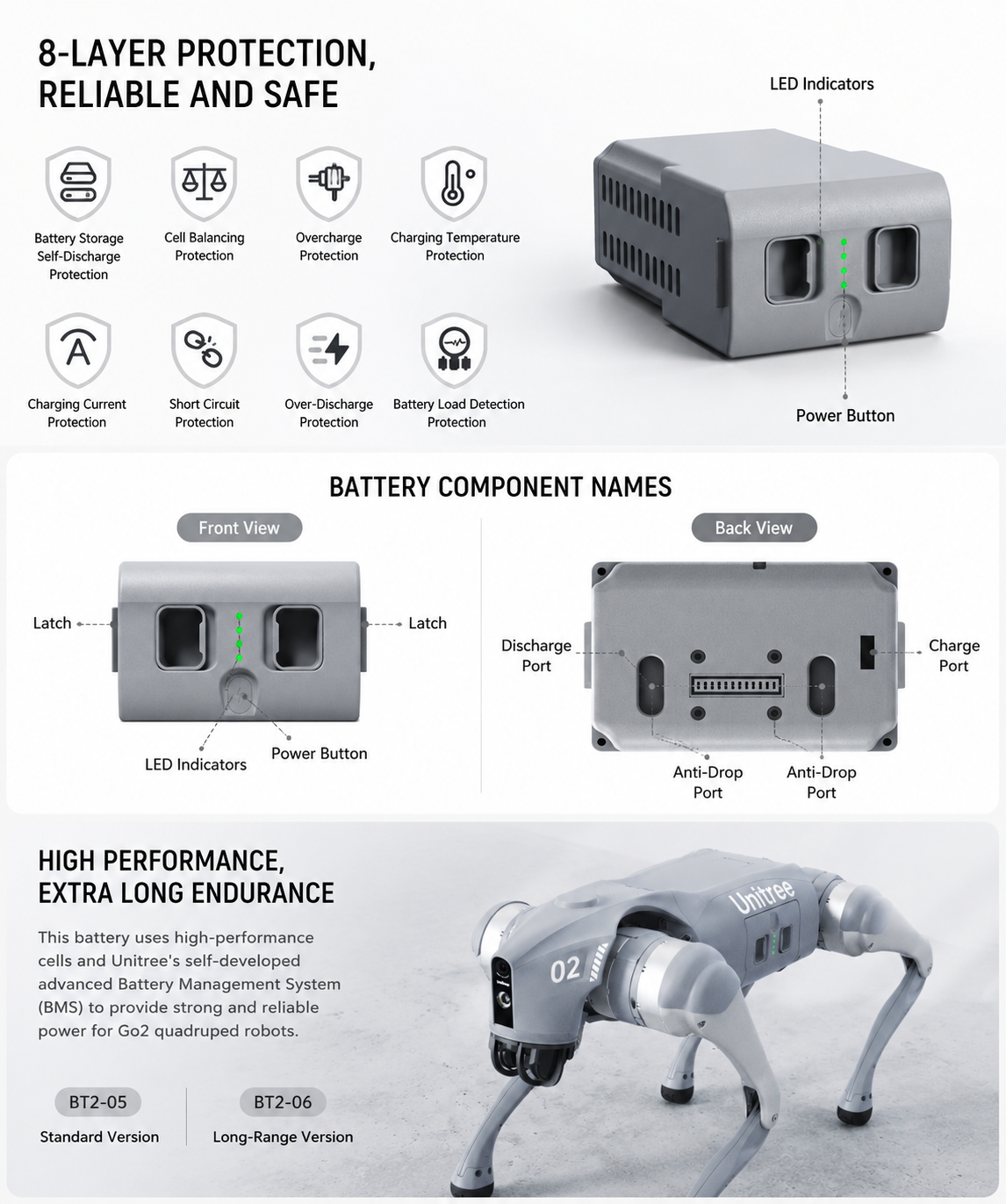

Battery Protection Functions
- Storage discharge protection
- Balanced charging protection
- Overcharge protection
- Charging temperature protection
- Charging current protection
- Short-circuit protection
- Over-discharge protection
- Battery load detection protection
Specifications
| Item | BT2-05 Standard Version | BT2-06 Long Runtime Version |
|---|---|---|
| Rated Voltage | DC 29.6V | DC 28.8V |
| Charging Limit Voltage | DC 33.6V | DC 33.6V |
| Charging Current | 3.5A–9A | 3.5A–9A |
| Rated Capacity | 8000mAh / 236.8Wh | 15000mAh / 432Wh |
| Battery Size | 120 × 80 × 182 mm | 120 × 80 × 182 mm |
| Battery Management | Intelligent BMS | Intelligent BMS |
| Protection Functions | 8 Protection Functions | 8 Protection Functions |
| Application | Unitree Go2 Robot Dog | Unitree Go2 Robot Dog |
Applications
- Unitree Go2 Robot Dog
- AI Robotics Research
- Autonomous Robotics
- Robotics Education
- Mobile Robot Platforms
- Intelligent Inspection Robots
- Research Laboratories
- Robotics Development Projects
Advantages
Fast Charging
Supports efficient charging for reduced downtime and faster deployment.
Long Runtime
Provides stable long-duration power output for extended robotic operation.
Intelligent BMS Protection
Advanced battery management improves safety, reliability, and lifespan.
Designed for Go2 Robots
Optimized specifically for Unitree Go2 quadruped robot platforms.
Package Includes
BT2-05 Standard Version
- 1 × Unitree Go2 BT2-05 Battery
BT2-06 Long Runtime Version
- 1 × Unitree Go2 BT2-06 Battery
