Description

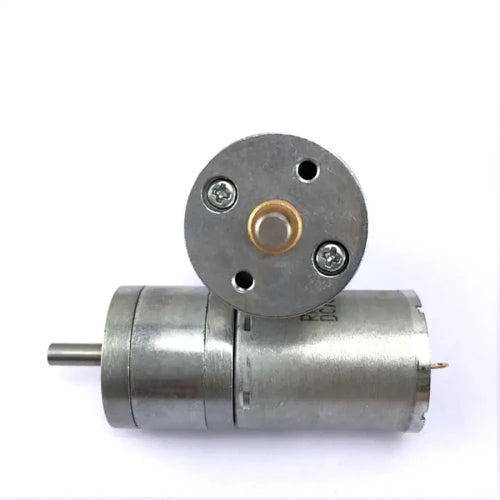

The Wild Thumper 6V DC Motor 75:1 is a high-performance steel gear motor designed for robotics and mobile platforms. Equipped with a 75:1 gearbox and a 4mm output shaft, it delivers exceptional torque and reliable operation. With a motor speed of 10,000 RPM and a geared output of 133 RPM, this motor provides both power and precision. Compact in size yet durable in construction, it is ideal for applications that demand high stall torque and efficient performance in challenging environments.
Dimensions
• Length (with shaft): 68mm
• Diameter: 25mm
• Shaft Diameter: 4mm
• Shaft Length: 10mm
Specifications
• Voltage: 6V Nominal (7.5V max)
• Motor RPM: 10,000 ± 5%
• Gear Ratio: 75:1
• Output RPM: 133
• Current (no load): 350mA
• Stall Torque: 8.8Kg/cm
• Stall Current: 5.5A
• Weight: 92g
