Description
The Yahboom 35KG Serial Bus Smart Servo is a high-performance servo motor designed for robotic arms, bionic robots, RC cars, and automation projects requiring precision and strength. With intelligent serial bus communication, this servo allows multiple units to be connected on the same bus, simplifying wiring while enabling synchronized motion control.

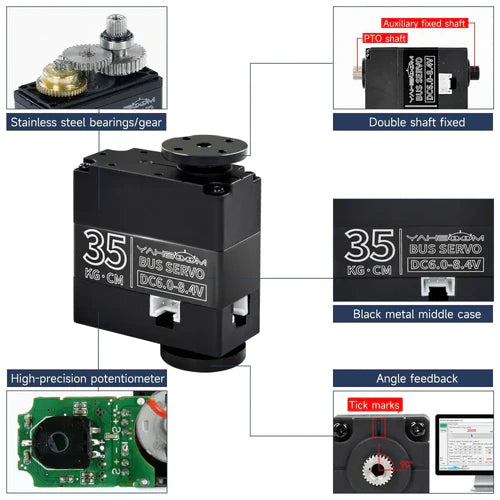

Engineered with stainless steel gears and bearings, an oxidized metal case, and a high-precision potentiometer, it ensures long-term durability, smooth rotation, and accurate position feedback. The servo delivers an impressive 35kg·cm torque and supports a wide 0–270° rotation angle, making it ideal for complex mechanical movements.

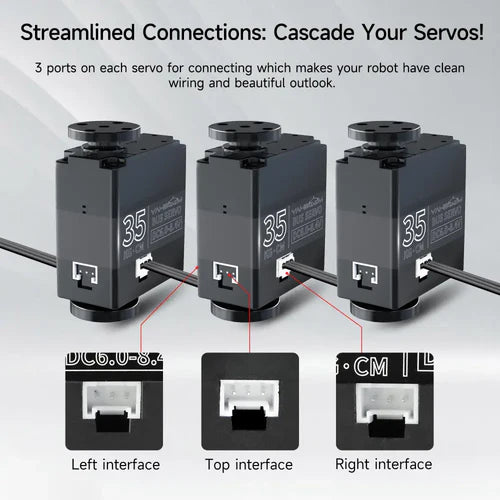

With three HY2.0-3Pin interfaces (left, right, and top), cascading multiple servos is convenient, offering cleaner wiring and flexibility in system integration. When connected to a Yahboom driver board and PC software, users can fine-tune servo angles in real time for precise control in robotics applications.
Key Features
• Intelligent serial bus communication for simplified wiring and multi-servo control
• Powerful 35kg·cm torque output for handling complex tasks
• 270° wide rotation angle with auxiliary fixed shaft and PTO shaft support
• High-precision potentiometer ensures accurate position control

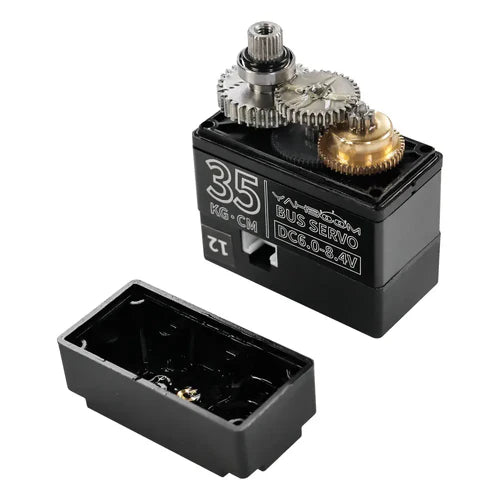

• Stainless steel gears and bearings for enhanced durability
• Oxidized metal case for heat dissipation and long service life
• Convenient cascading with 3 connection interfaces (top, left, right)
• Supports angle, position, and status feedback in real time

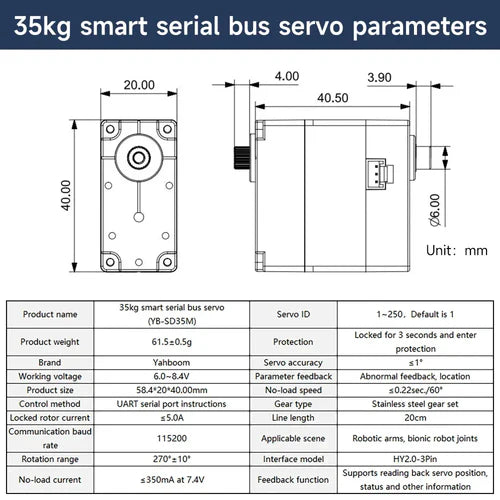

Specifications
• Model: YB-SD35M (35kg smart serial bus servo)
• Brand: Yahboom
• Working Voltage: DC 6.0–8.4V
• Product Size: 58.4 × 20.4 × 40 mm
• Product Weight: 61.5–50.5 g
• Torque: 35 kg·cm
• No-load Current: ≤350 mA @ 7.4V
• No-load Speed: 0.22 sec/60°
• Rotation Range: 0–270° ± 10°
• Stall Current: ≤5.0 A
• Gear Material: Stainless steel
• Feedback Function: Abnormal position, status feedback
• Interface: HY2.0-3Pin (signal, V+, GND)
• Communication Baud Rate: 115200 bps
• Applications: Robotic arms, bionic robots, automation projects, RC robotics

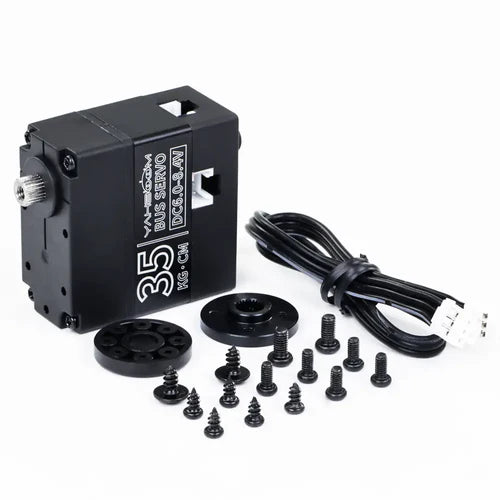

What’s Included
• 1x 35KG Smart Serial Bus Servo
• 1x Metal steering wheel + screws
• 1x Plastic steering wheel + screws
• 1x Connecting line
