Description
The 11.1V High-Rate Li-ion Battery Pack is a rechargeable power solution designed for ROS robots, smart robot cars, robotic arms, robotic hands, and mobile robotics platforms. Available in 2600mAh and 5000mAh capacities, the battery pack delivers stable voltage output and high-current performance for robotics and automation applications.
Built with 18650 or 21700 battery cells depending on the capacity version, the battery features integrated protection functions including overcharge, over-discharge, overcurrent, low-voltage, overvoltage, and short-circuit protection for safer operation and longer service life.
Suitable for ROS development platforms, AI robot cars, tracked robots, robotic manipulators, quadruped robots, and humanoid robots.
Key Features

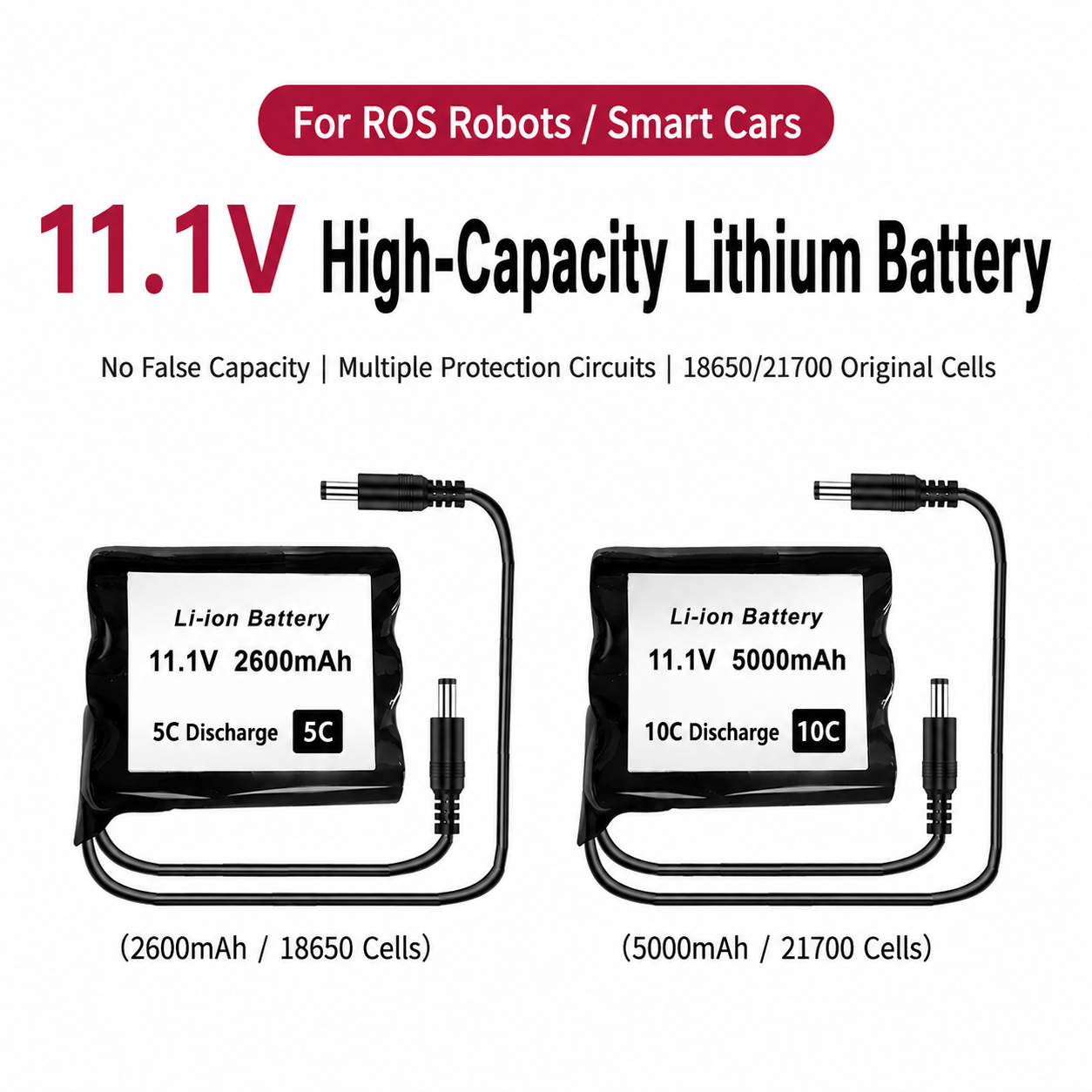

- 11.1V rechargeable Li-ion battery pack
- Available in 2600mAh and 5000mAh versions
- High-rate discharge output for robotics applications
- Built-in battery protection board
- Supports ROS robots and smart robot platforms
- Compact and lightweight design
- Stable voltage output for mobile robots
- Multiple safety protection functions
- Suitable for robotic arms and tracked robots

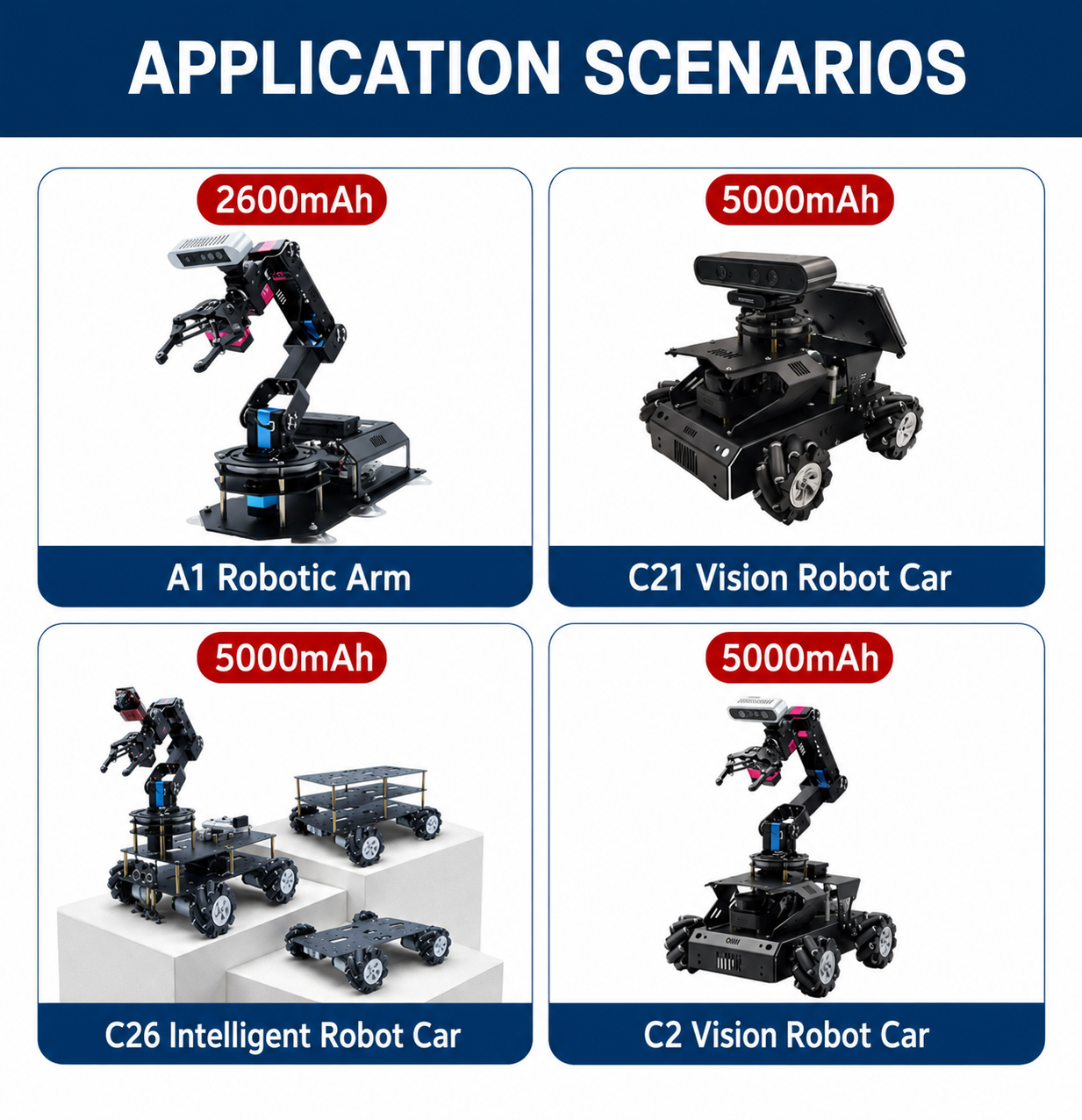

Applications
- ROS Robots
- Smart Robot Cars
- Robotic Arms
- Robotic Hands
- Tracked Robots
- Quadruped Robots
- Humanoid Robots
- AI Robotics Platforms
- Mobile Robot Systems
Specifications
| Item | 2600mAh Version | 5000mAh Version |
|---|---|---|
| Battery Type | Li-ion Battery | Li-ion Battery |
| Rated Voltage | 11.1V | 11.1V |
| Maximum Voltage | 12.6V | 12.6V |
| Rated Capacity | 2600mAh | 5000mAh |
| Discharge Rate | 5C | 10C |
| Battery Cell Type | 18650 Cells | 21700 Cells |

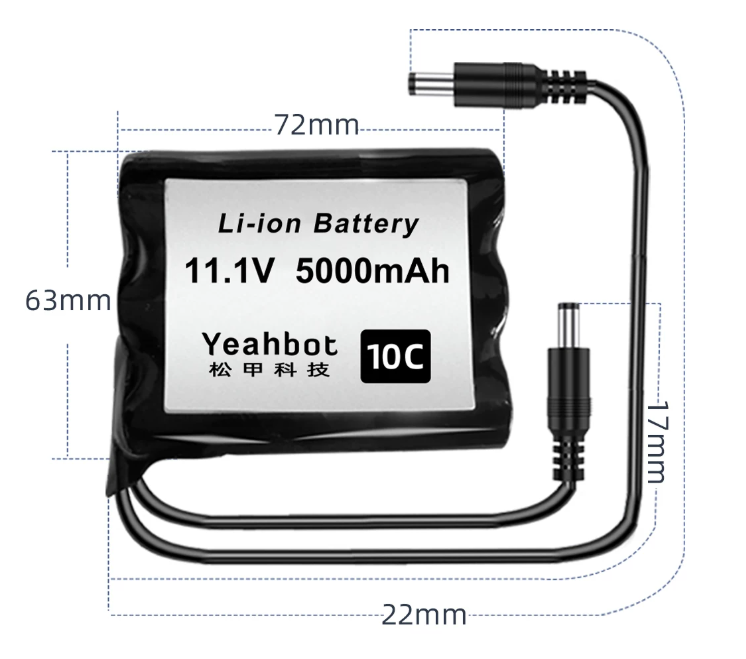

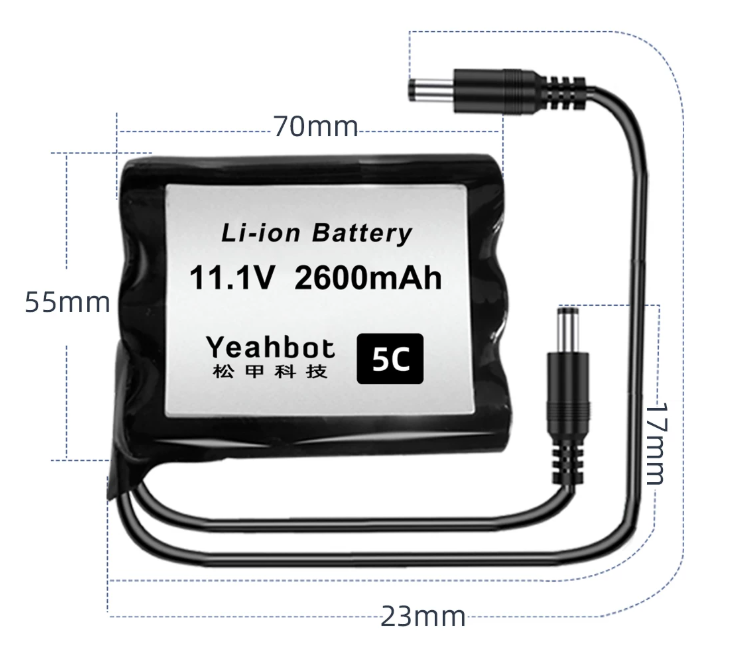

| Battery Dimensions | Approx. 70 × 55 × 23 mm | Approx. 72 × 63 × 22 mm |
| Battery Weight | Approx. 153.8g | Approx. 230.8g |
| Discharge Cable Length | Approx. 24cm | Approx. 24cm |
| Charging Cable Length | Approx. 24cm | Approx. 24cm |
| Battery Configuration | 3S1P | 3S1P |
| Protection Functions | Overcharge, Over-discharge, Overcurrent, Short Circuit Protection | Overcharge, Over-discharge, Overcurrent, Short Circuit Protection |
Battery Protection Features
- Overcharge Protection
- Over-discharge Protection
- Overcurrent Protection
- Overvoltage Protection
- Low Voltage Protection
- Short Circuit Protection

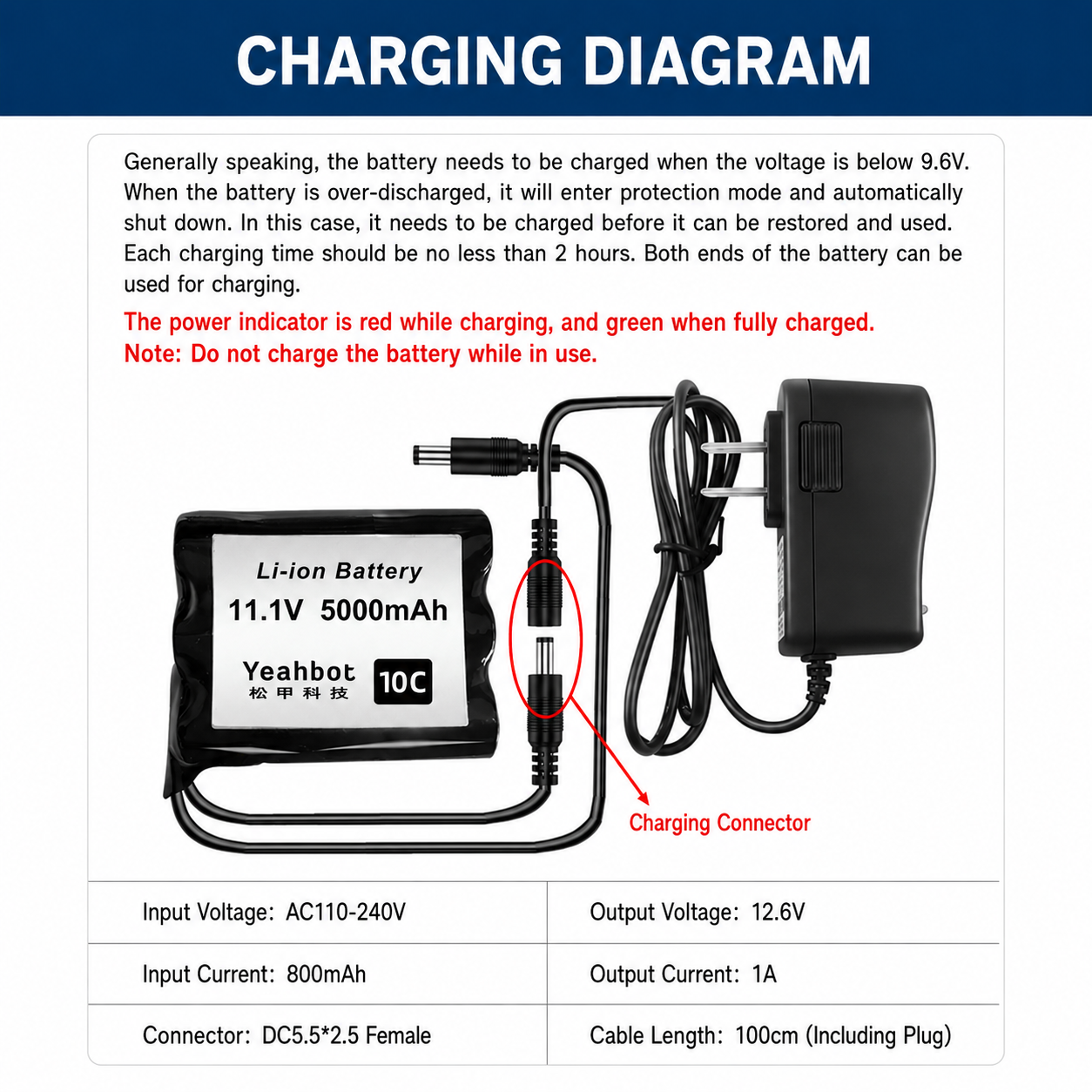

Charging Instructions
- Recharge the battery before voltage drops below 9.6V.
- Charging time is generally more than 2 hours.
- Charger indicator:
- Red Light: Charging
- Green Light: Fully Charged
- Do not use the battery while charging.
Storage & Safety Notes
- Store the battery in a cool, dry, and ventilated environment.
- Recommended storage temperature: 0°C to 25°C.
- Avoid exposure to heat sources or temperatures above 60°C.
- Do not disassemble, crush, puncture, drop, or short-circuit the battery.
- If not used for a long period, maintain battery charge between 40% and 60%.
- It is recommended to recharge the battery every 3 months during storage.
Package Includes
2600mAh Version
- 1 × 11.1V 2600mAh Li-ion Battery Pack
- 1 × Matching Battery Charger
5000mAh Version
- 1 × 11.1V 5000mAh Li-ion Battery Pack
- 1 × Matching Battery Charger
Product Advantages
High-Rate Power Output
Designed for ROS robots and mobile robotic platforms requiring stable current output.
Integrated Protection System
Built-in battery management protection improves operational safety and battery lifespan.
Compact Robot Power Solution
Lightweight structure suitable for smart robot cars and embedded robotics systems.
Wide Robotics Compatibility
Suitable for robotic arms, tracked robots, quadruped robots, and humanoid robots.
