DESCRIPTION

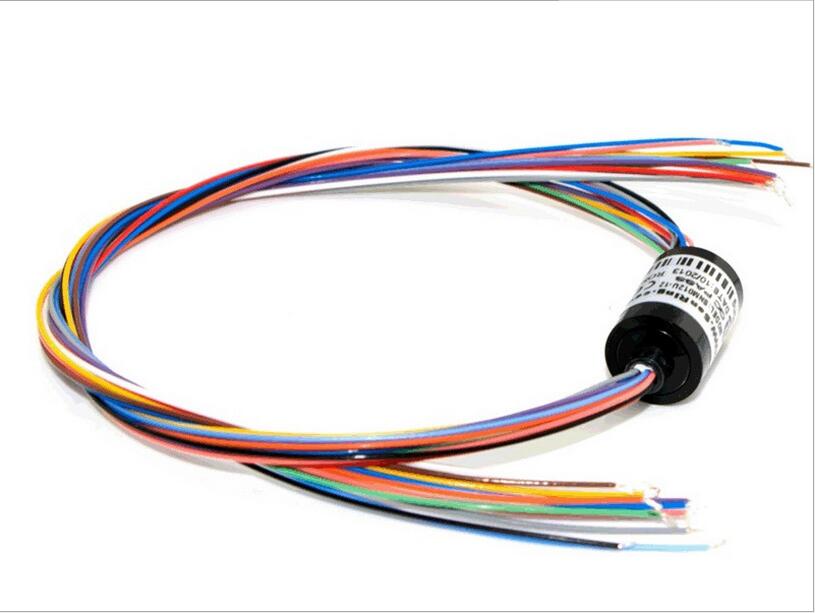

The 12 Channel 2A Capsule Slip Ring is designed for reliable 360° continuous electrical transmission between stationary and rotating structures. Featuring a compact 12.5 mm outer diameter and 12 independent circuits rated at 2A each, it provides stable power and signal transfer with low electrical noise and long service life.
Its lightweight capsule design makes it ideal for brushless gimbal motors, robotic joints, pan-tilt mechanisms, rotating platforms, surveillance systems, industrial automation, and precision electromechanical equipment.
FEATURES
- Compact 12.5 mm capsule slip ring
- 12 independent circuits
- 2A current capacity per circuit
- Continuous 360° rotation
- Gold-to-gold contact technology
- Low electrical noise
- Long service life
- Stable signal and power transmission
- Lightweight construction
- Maintenance-free operation
- Suitable for power and signal transmission
- Standard 200 mm lead wires

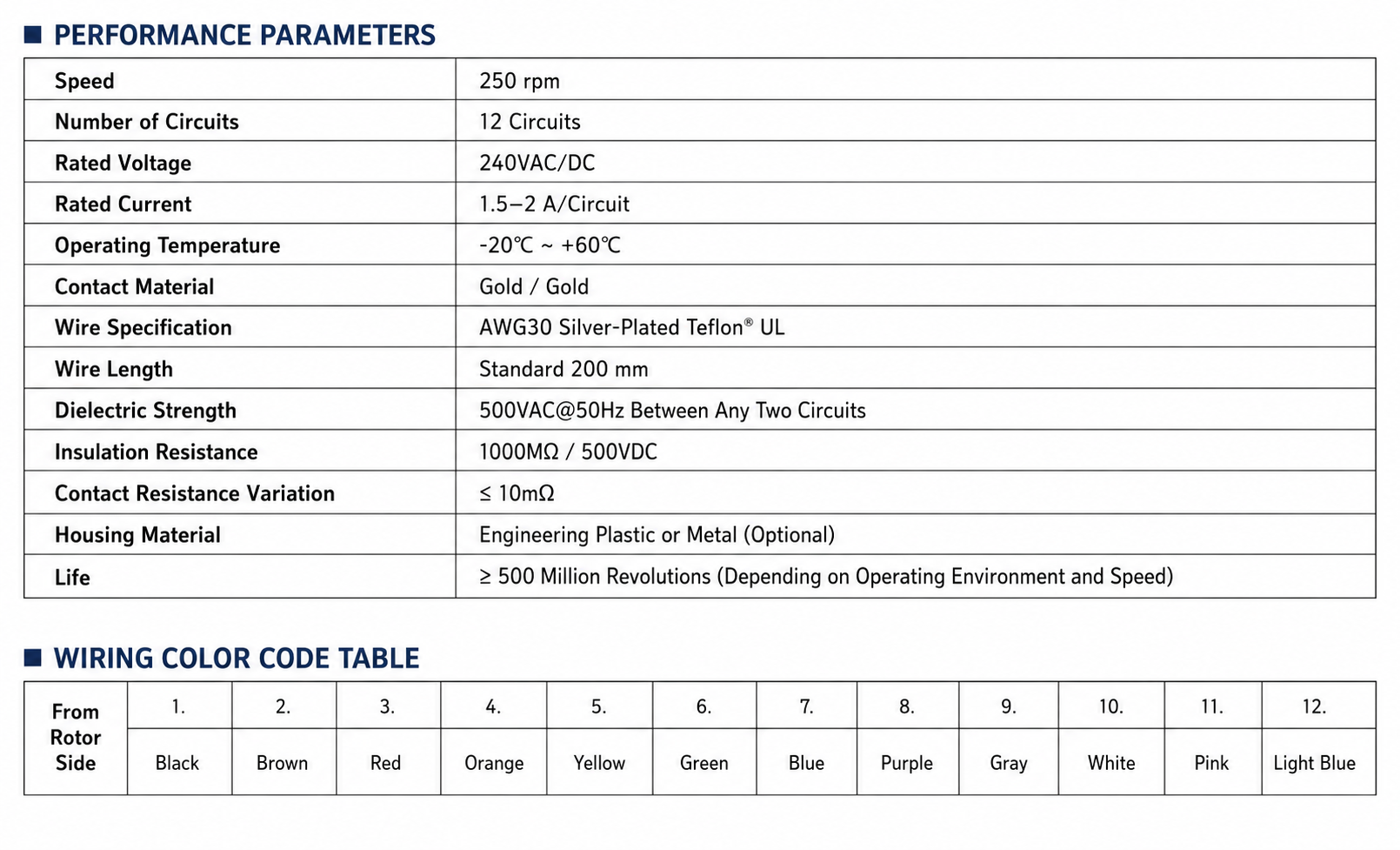

SPECIFICATIONS
| Parameter | Specification |
|---|---|
| Product Type | Capsule Slip Ring |
| Circuits | 12 |
| Rated Current | 2A per Circuit |
| Rated Voltage | 240VAC/DC |
| Rotational Speed | 250 RPM |
| Outer Diameter | 12.5 mm |
| Contact Material | Gold to Gold |
| Lead Wire | AWG30 UL |
| Lead Length | 200 mm |
| Insulation Resistance | 1000MΩ @500VDC |
| Dielectric Strength | ≥500VAC 50Hz |
| Dynamic Resistance Variation | ≤10mΩ |
| Operating Temperature | -20°C to +60°C |
| Housing Material | Engineering Plastic (Metal Optional) |
| Service Life | Over 5 Million Revolutions (Depending on Speed & Environment) |
APPLICATIONS
- Brushless Gimbal Motors
- Robot Joints
- Humanoid Robots
- Quadruped Robots
- Pan-Tilt Systems
- Rotary Tables
- CCTV Systems
- Medical Equipment
- Industrial Automation
- AGV & AMR Robots
- Inspection Robots
- Rotary Sensors
PACKAGE INCLUDES
- 1 × 12 Channel Capsule Slip Ring
Product Specifications
| Specification | Value |
|---|---|
| Product Type | Capsule Slip Ring |
| Model | 12 Channel Capsule Slip Ring |
| Circuits | 12 |
| Rated Current | 2A per Circuit |
| Rated Voltage | 240VAC/DC |
| Maximum Speed | 250 RPM |
| Outer Diameter | Ø12.5 mm |
| Contact Material | Gold-to-Gold Contacts |
| Lead Wire | AWG30 UL |
| Lead Length | 200 mm |
| Dynamic Resistance Variation | ≤10 mΩ |
| Insulation Resistance | 1000 MΩ @ 500VDC |
| Dielectric Strength | ≥500VAC, 50Hz |
| Operating Temperature | -20°C to +60°C |
| Housing Material | Engineering Plastic (Metal Housing Optional) |
| Service Life | >5 Million Revolutions (Depending on Speed & Operating Environment) |
