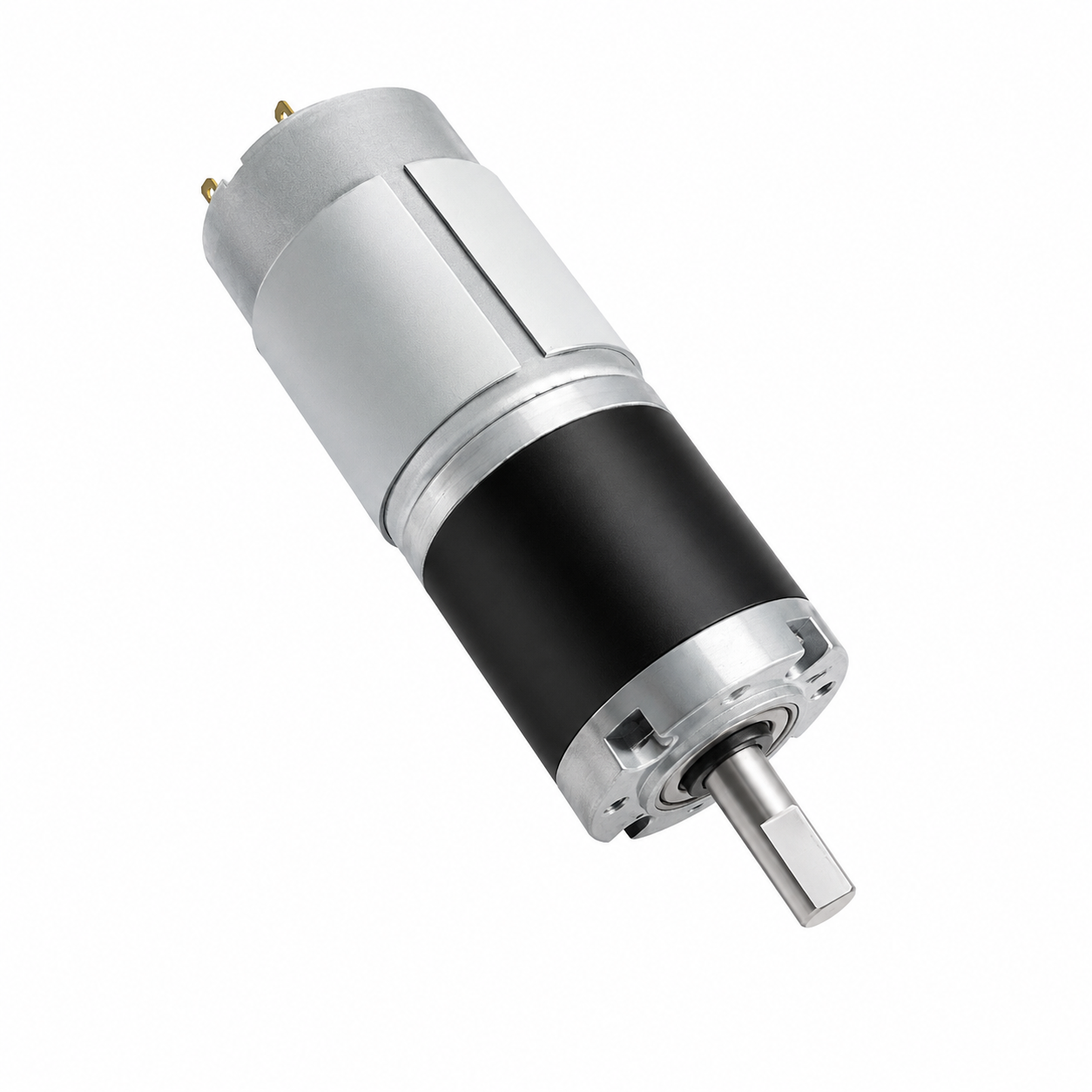

Product Description
This 12V 160RPM DC Planetary Gear Motor is designed for robot drive systems, smart automation equipment, conveyor mechanisms, and industrial electronic applications requiring balanced speed and reliable torque output.
The planetary gearbox structure provides improved transmission efficiency, stable torque delivery, and compact installation dimensions for robotics and automation projects.
Available in both 6mm and 8mm D-shaped output shaft configurations, this motor supports compatibility with various robot wheels, couplers, pulleys, and transmission systems.
The 160RPM speed configuration is suitable for robot wheel drive systems, AGV platforms, mobile robotics, and intelligent automation equipment.
Key Features
- 12V DC planetary gear motor
- 160RPM balanced speed configuration
- Available in 6mm and 8mm shaft versions
- High torque metal gearbox
- Compact 36mm structure
- Reversible rotation support
- PWM adjustable speed compatible
- Durable planetary transmission design
- Suitable for robot wheel systems

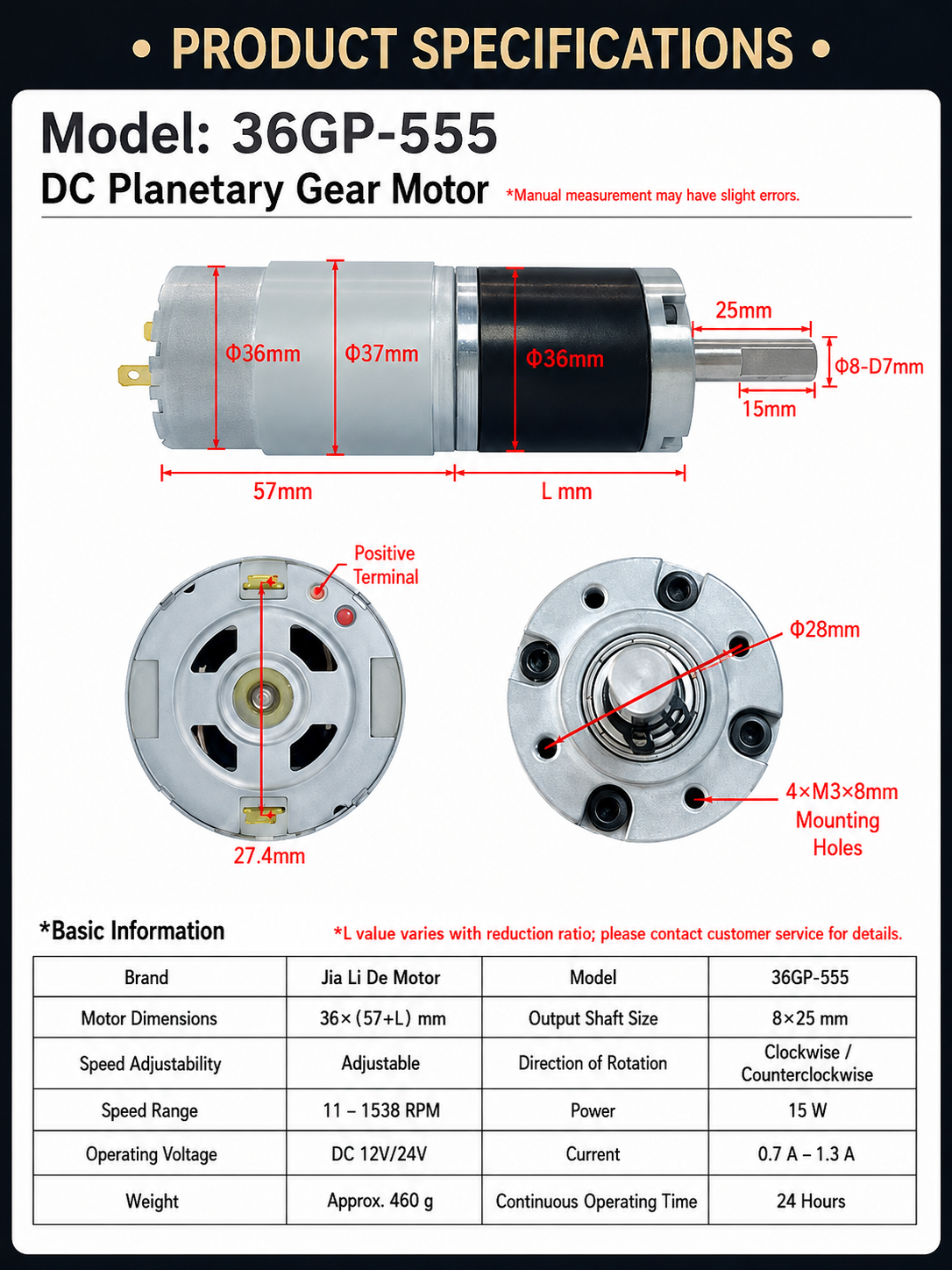

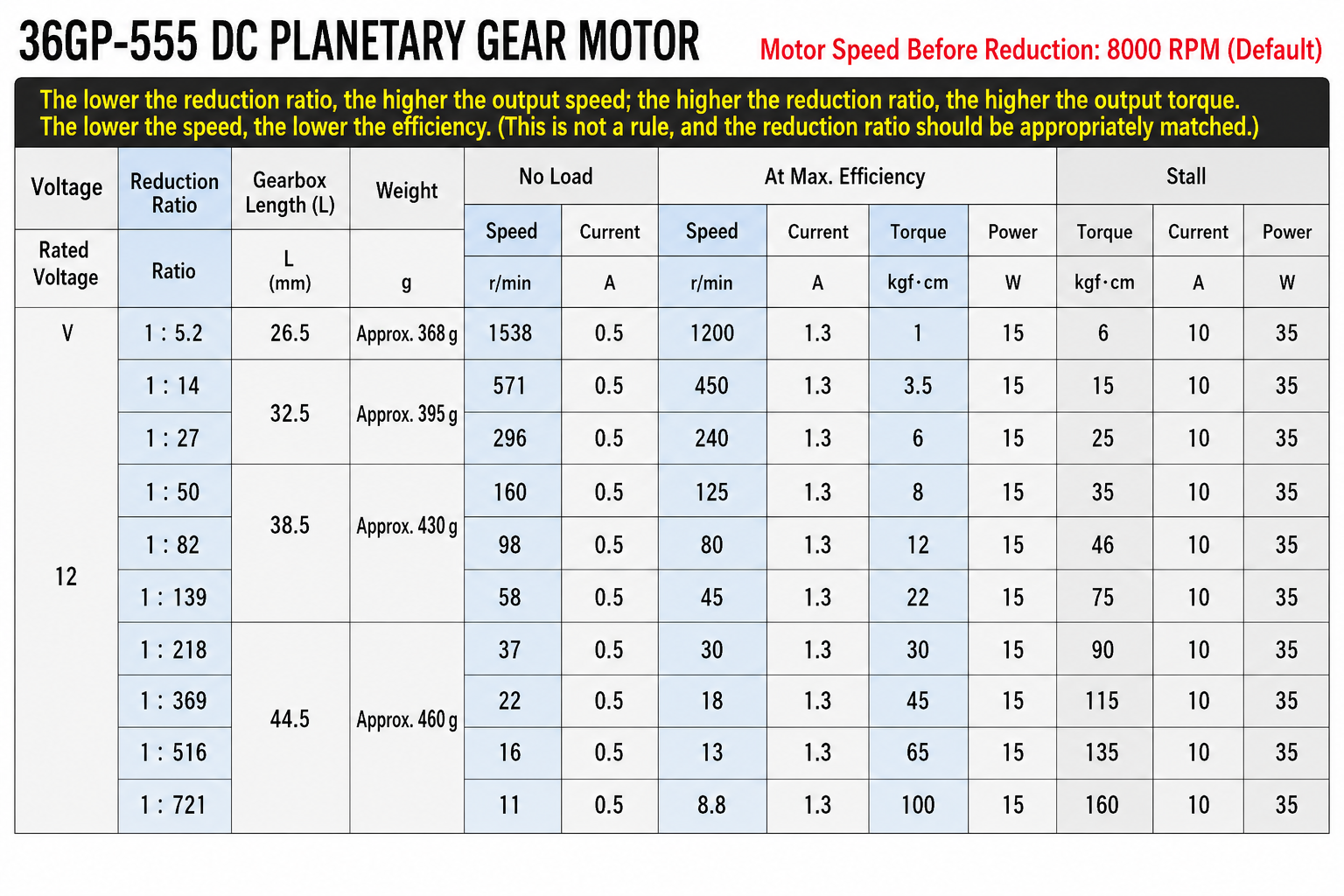

Specifications
| Parameter | Specification |
|---|---|
| Rated Voltage | DC 12V |
| Rated Speed | 160RPM |
| Gear Ratio | 1:50 |
| Rated Torque | 8kgf.cm |
| Stall Torque | 35kgf.cm |
| Power | 15W |

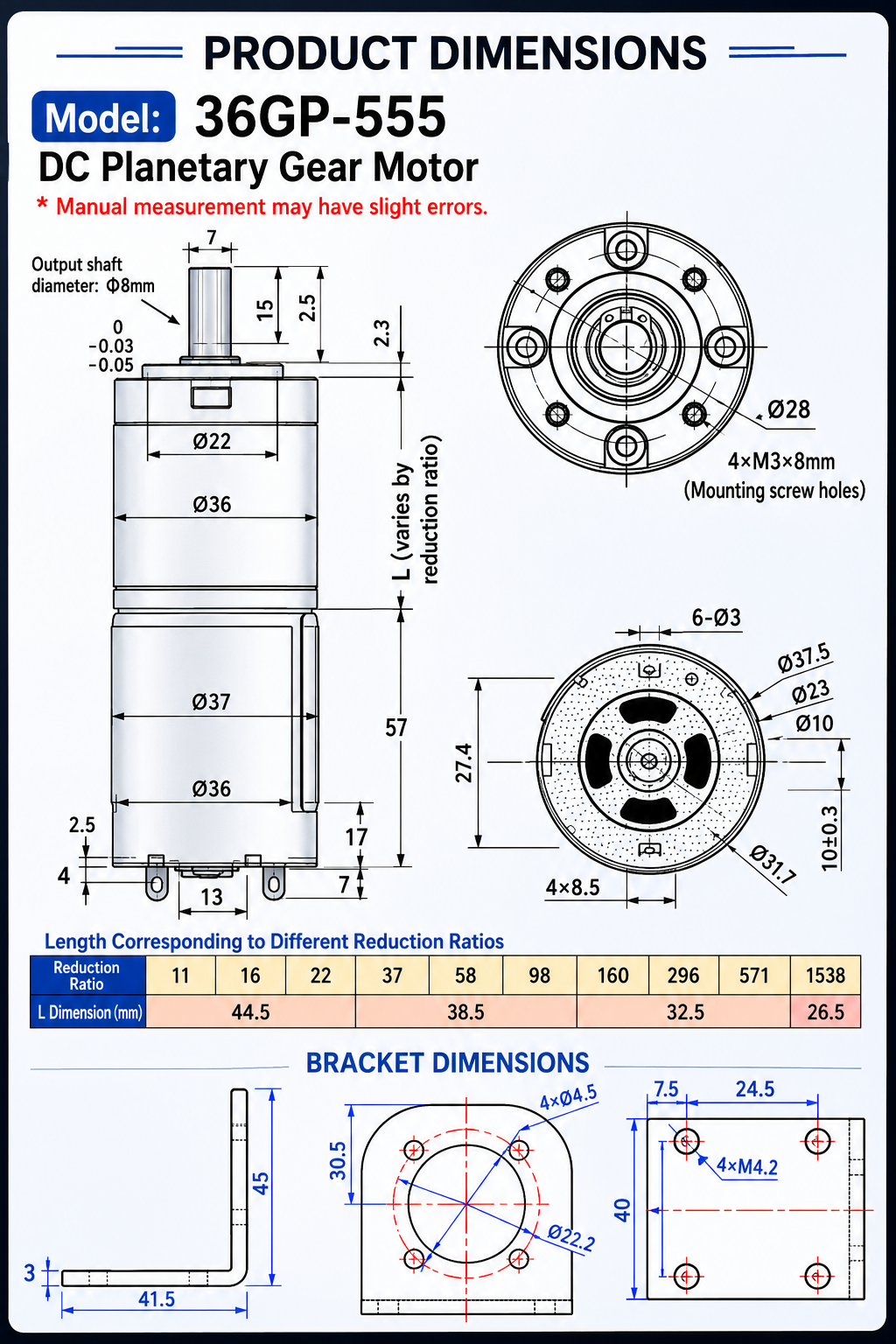

| Gearbox Diameter | 36mm |
| Output Shaft Options | 6mm D Shaft / 8mm D Shaft |
| Rotation Direction | CW / CCW |
Application
- Robot cars
- Mobile robotics
- AGV systems
- Automation equipment
- Smart machinery
- Conveyor systems
