Product Description

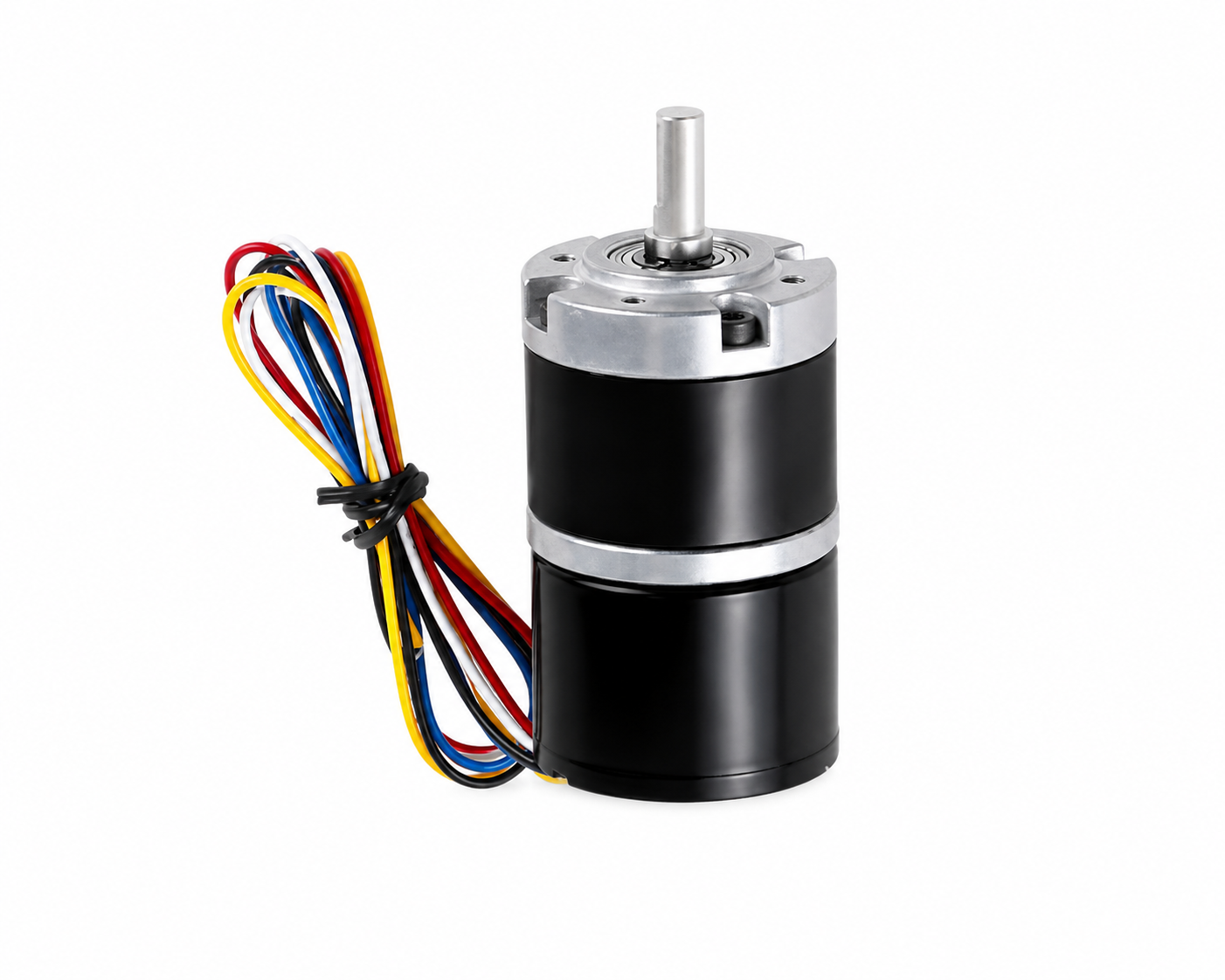

The 36GP-3626 Brushless DC Planetary Gear Motor is a compact high-performance BLDC gearbox motor designed for robot cars, AGV platforms, smart automation systems, conveyor mechanisms, and embedded robotics applications.
Featuring a precision all-metal planetary gearbox combined with a brushless DC motor structure, this motor delivers stable torque output, higher efficiency, lower operating noise, and extended service life compared to brushed DC motors.
The 28RPM–73RPM speed range is optimized for low-speed robotics systems requiring stable torque transmission and reliable motion control.
This motor supports PWM speed control, reversible CW / CCW operation, and is available in both 6mm and 8mm D shaft configurations for compatibility with robot wheels, pulleys, and shaft couplers.
The compact 36mm gearbox structure makes it suitable for mobile robotics, AGV platforms, DIY robot projects, and automation systems.
Key Features
- Brushless DC planetary gear motor
- 12V high-efficiency BLDC motor
- 28RPM–73RPM low-speed torque range
- Available in 6mm and 8mm shaft versions
- Durable all-metal planetary gearbox
- PWM speed control compatible
- CW / CCW reversible operation
- Compact 36mm gearbox structure
- Low noise and long service life
- Suitable for robotics and AGV systems
- Five-wire motor configuration

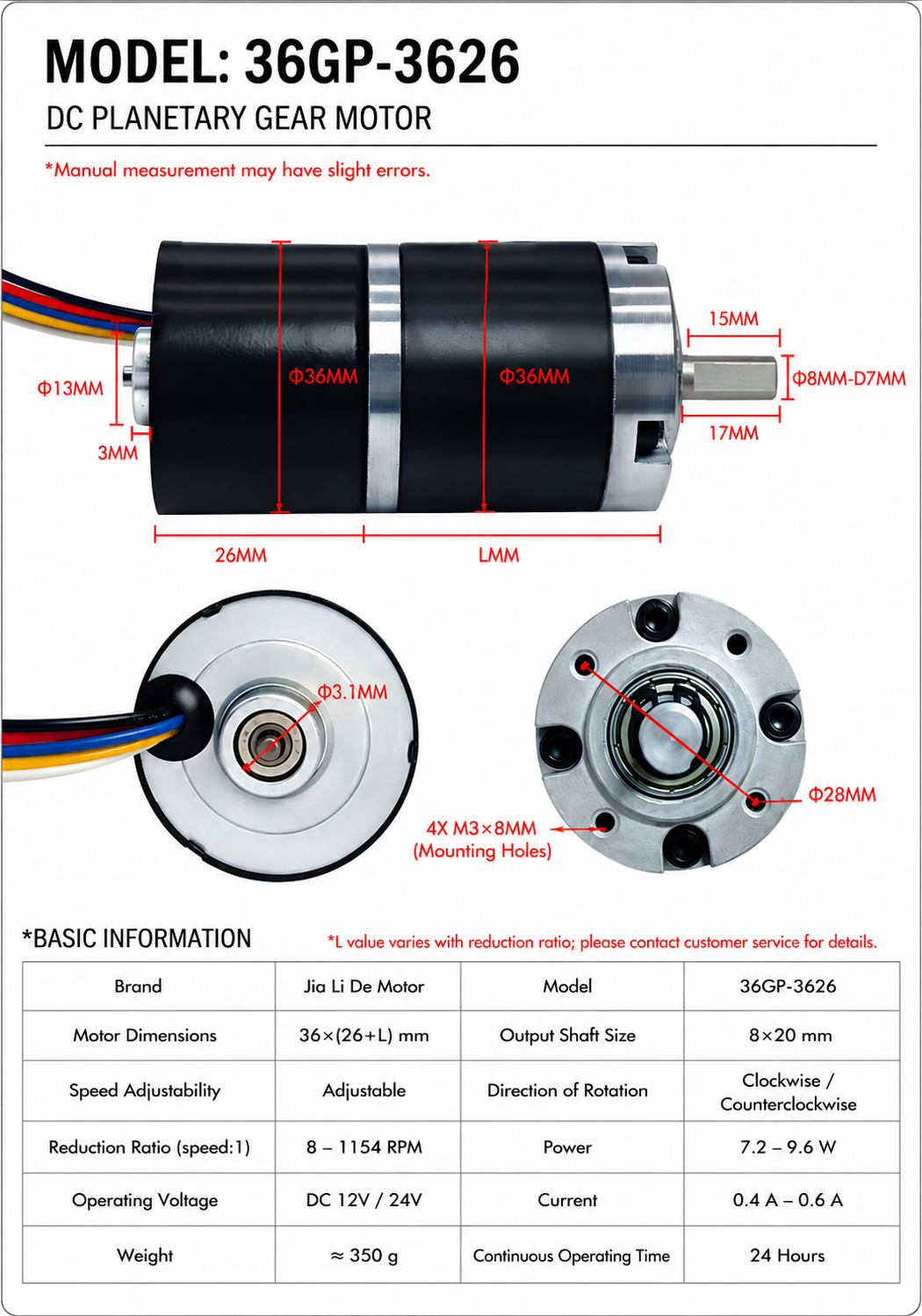

Specifications
| Parameter | Specification |
|---|---|
| Model | 36GP-3626 |
| Motor Type | Brushless DC Planetary Gear Motor |
| Rated Voltage | DC 12V |
| Speed Range | 28RPM–73RPM |
| Gear Ratio Options | 1:84 / 1:139 / 1:216 |
| Rated Power | 7.2W |

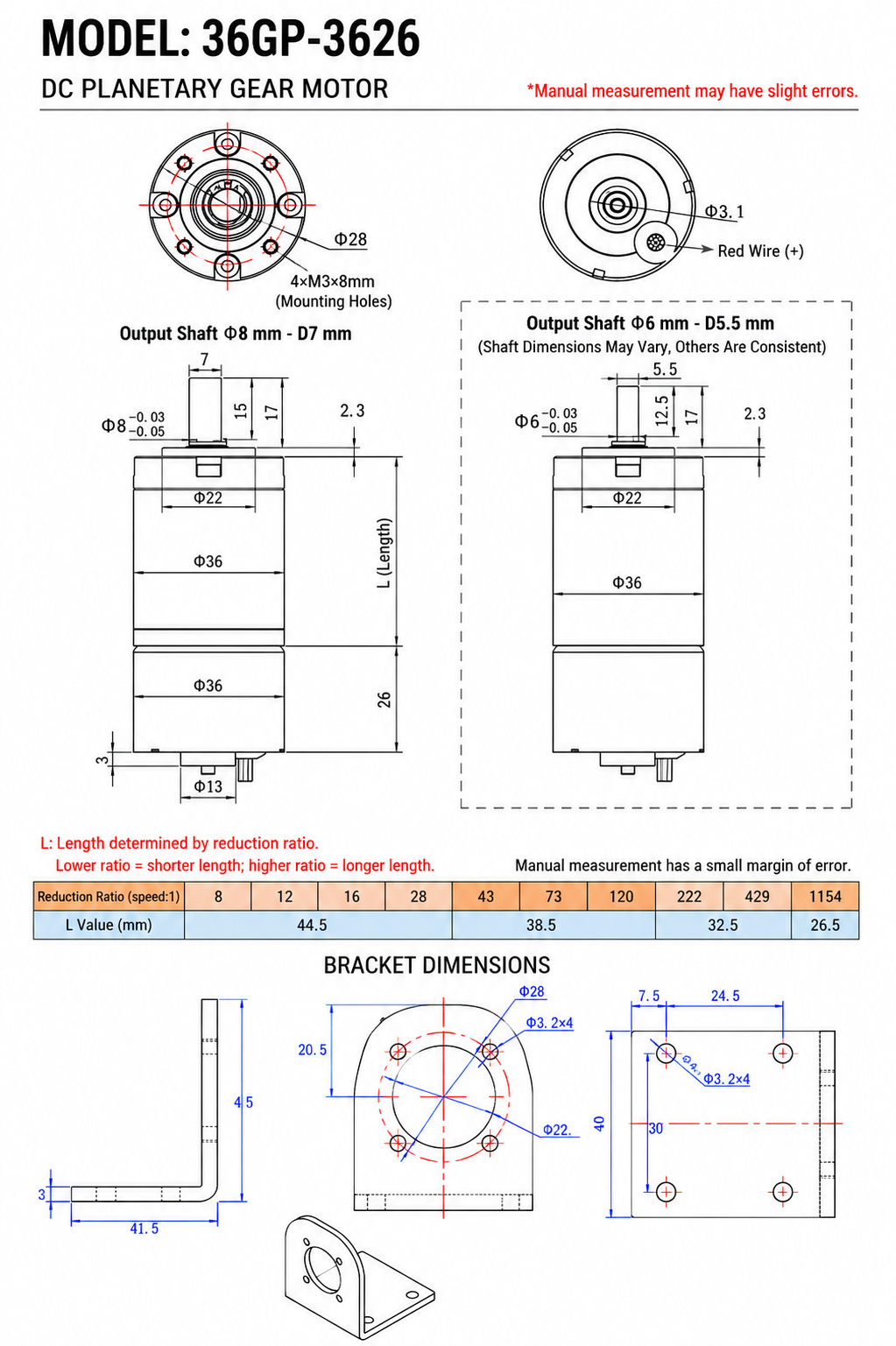

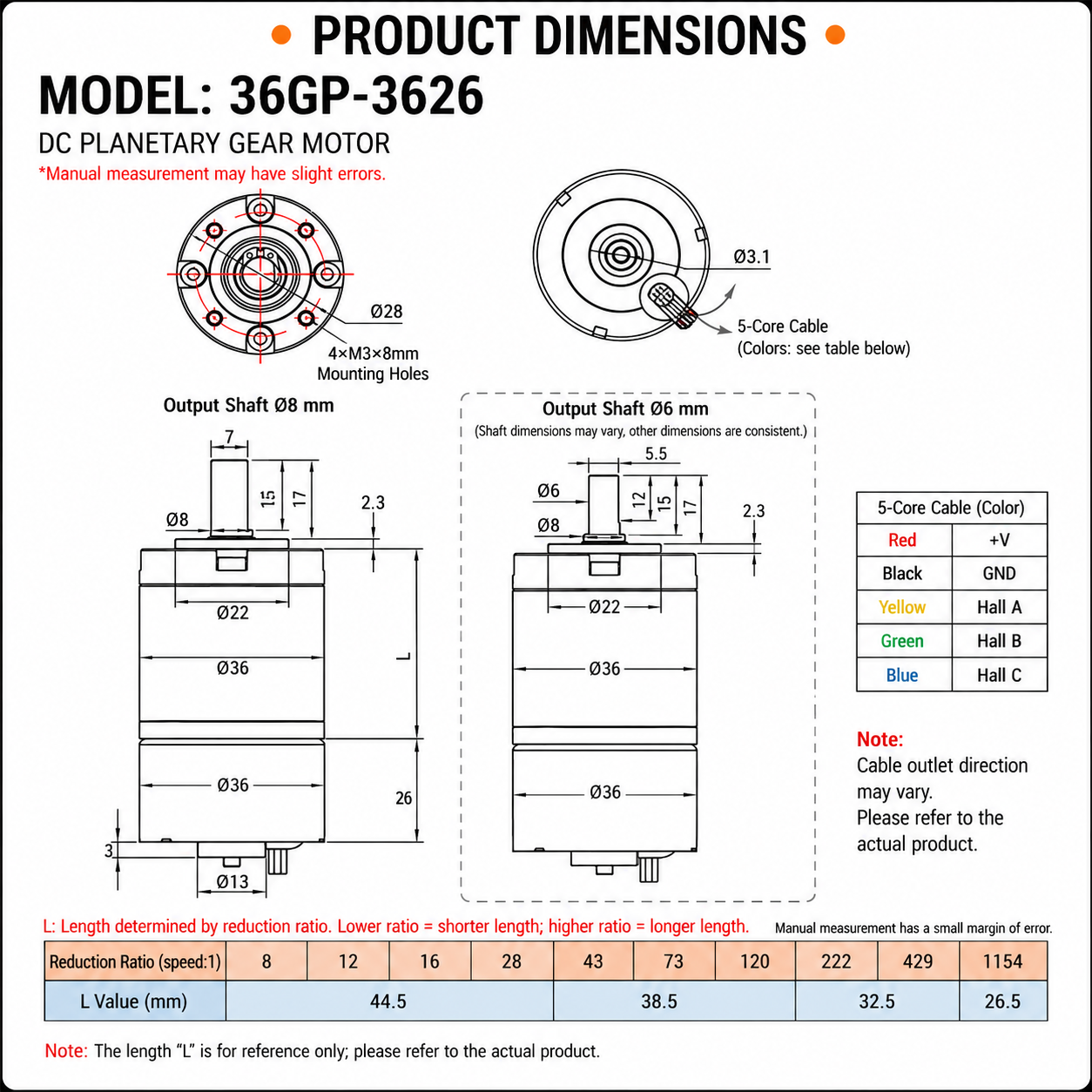

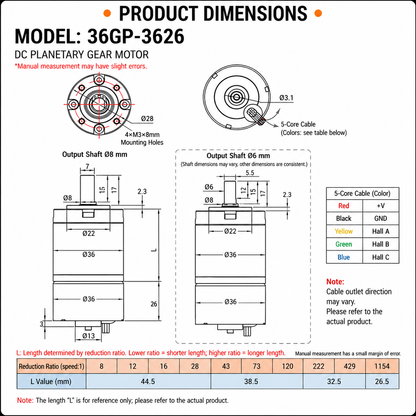

| Gearbox Diameter | 36mm |
| Output Shaft Options | 6mm D Shaft / 8mm D Shaft |
| Shaft Length | 17mm |
| Rotation Direction | CW / CCW Reversible |
| Speed Control | PWM Supported |
| Wiring | Five-Wire Configuration |
Applications
- Robot cars
- Mobile robotics
- AGV systems
- Smart automation equipment
- Conveyor mechanisms
- Embedded robotics
- Motion control systems
- DIY robotics engineering
Package Includes
- 1 × Brushless DC Planetary Gear Motor
Optional accessories sold separately:
- PWM BLDC motor controller
- Motor mounting bracket
- Power supply module
- Shaft coupler
- Robot wheel
FAQ
Why choose a brushless DC gear motor?
Brushless motors provide higher efficiency, lower maintenance, reduced operating noise, and longer service life compared to brushed motors.
Is this motor suitable for robot drive wheels?
Yes. The 28RPM–73RPM range is suitable for robot wheel drive systems and mobile robotics applications.
Does this motor support PWM speed control?
Yes. The motor supports PWM speed regulation using a compatible BLDC motor controller.
What is the difference between the 6mm and 8mm shaft versions?
The shaft diameter affects compatibility with wheels, pulleys, couplers, and transmission systems.
