Product Description

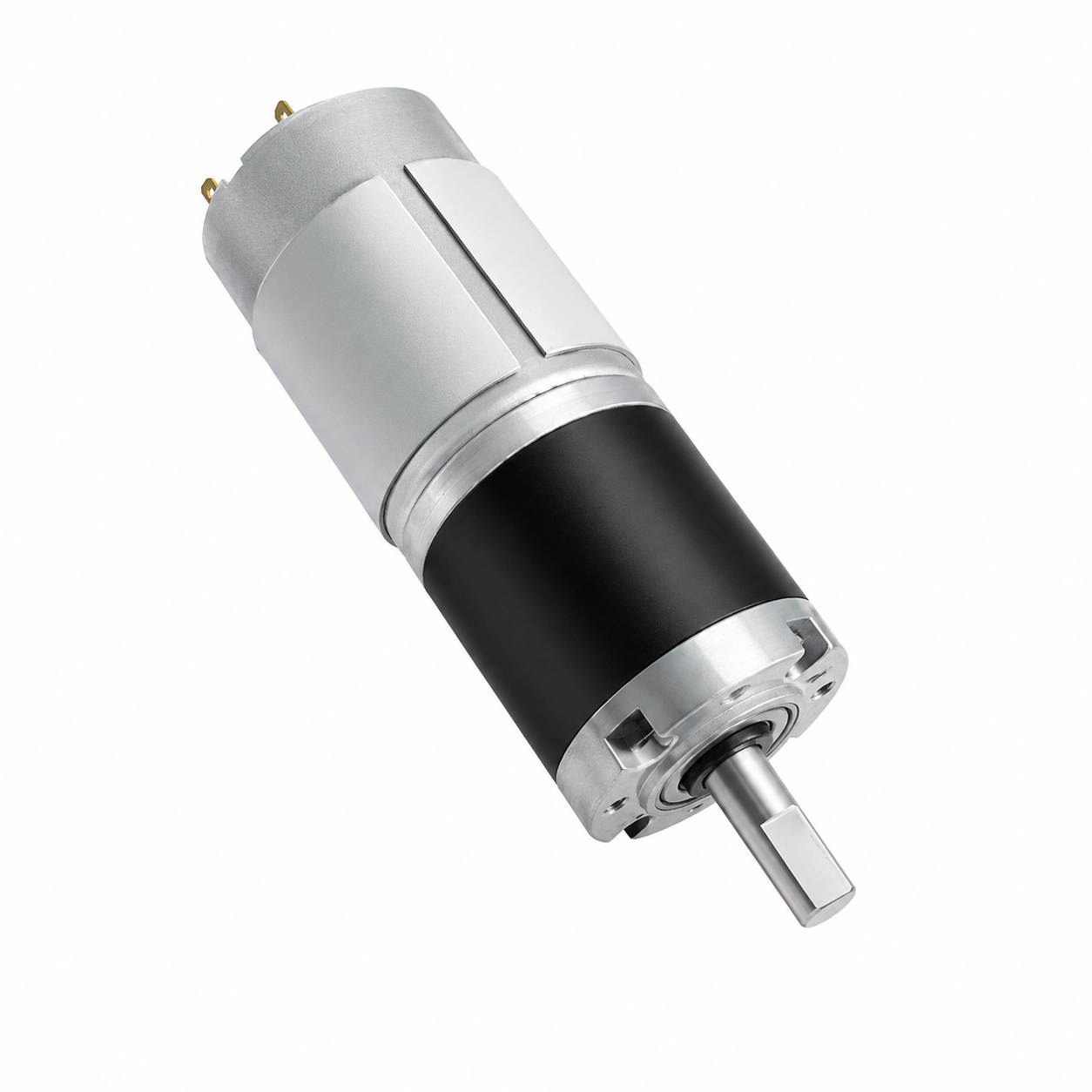

This 12V 58RPM DC Planetary Gear Motor is a compact high torque brushed DC gearbox motor designed for robotics, automation systems, AGV platforms, conveyor equipment, smart machinery, and industrial motion control applications.
Featuring a durable planetary gearbox structure, the motor provides stable low-speed torque output with high transmission efficiency and reliable continuous-duty performance. The 58RPM output configuration offers an excellent balance between torque and controllability, making it suitable for robotic wheel drive systems, automation actuators, and intelligent motion platforms.
This motor is available with both 6mm and 8mm D-shaped output shaft options, allowing compatibility with different couplers, robot wheels, brackets, and mechanical transmission systems.
The motor supports forward and reverse rotation and can be controlled using PWM DC motor speed controllers for adjustable speed applications.
Key Features
- 12V DC planetary gear motor
- 58RPM low speed high torque output
- Available in 6mm and 8mm D shaft versions
- Compact 36mm planetary gearbox structure
- High efficiency metal gearbox transmission
- Forward and reverse rotation support
- PWM speed control compatible
- Continuous-duty operation support
- Stable low-speed drive performance
- Suitable for robotics and industrial automation

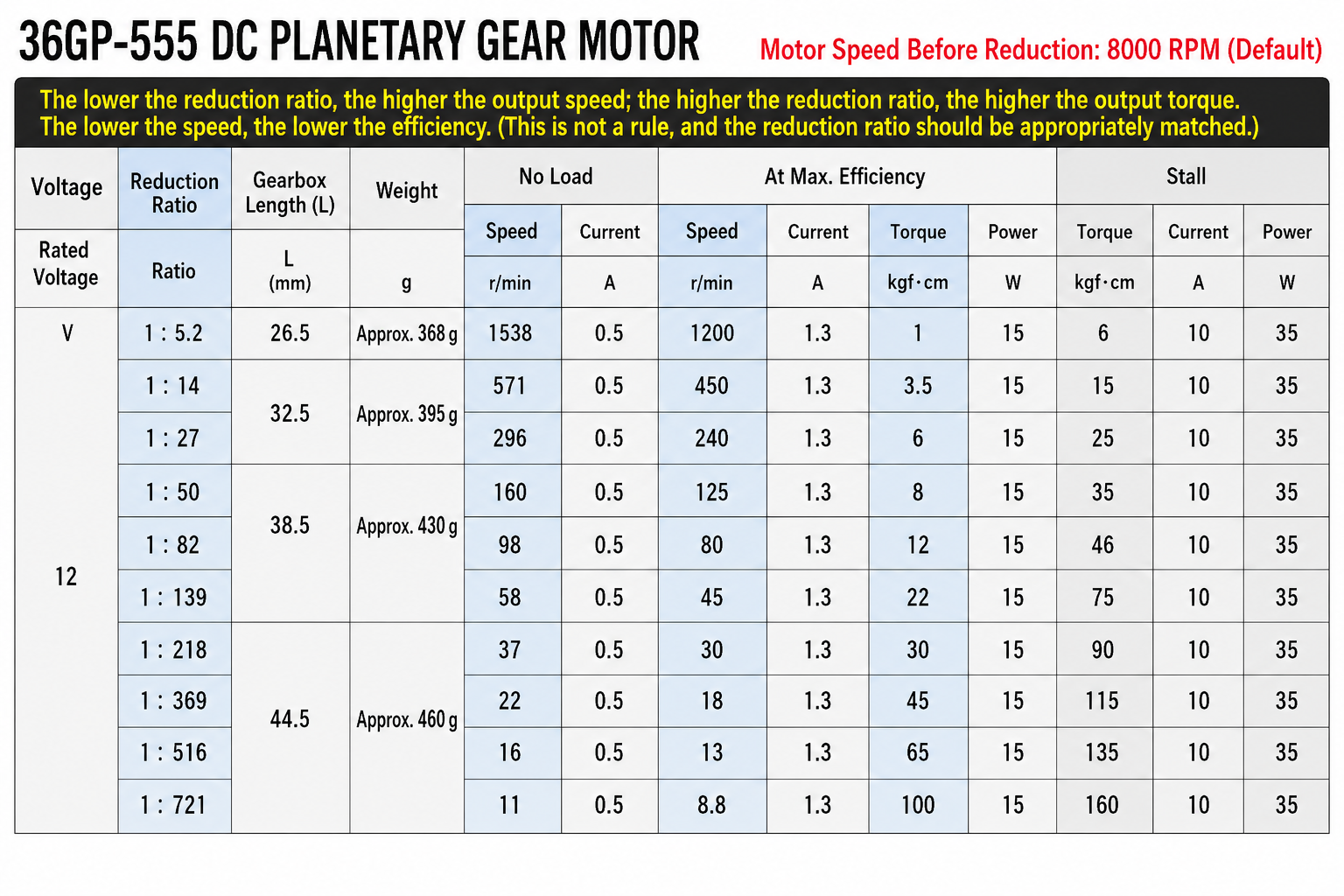

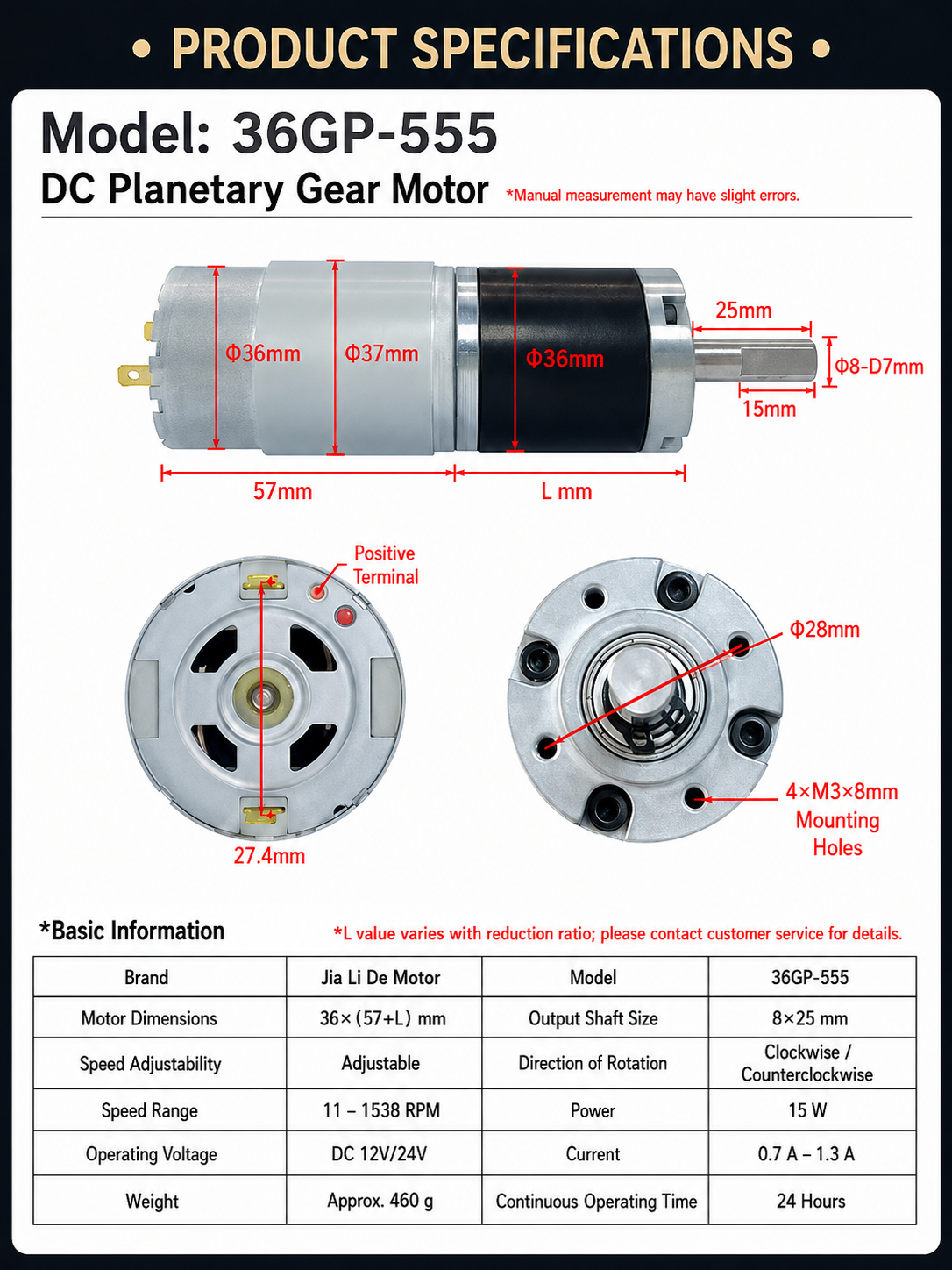

Specifications
| Parameter | Specification |
|---|---|
| Motor Type | DC Planetary Gear Motor |
| Rated Voltage | DC 12V |
| Rated Power | 15W |
| Rated Speed | 58RPM |
| Gear Ratio | 1:139 |
| Rated Torque | 22kgf.cm |
| Stall Torque | 75kgf.cm |

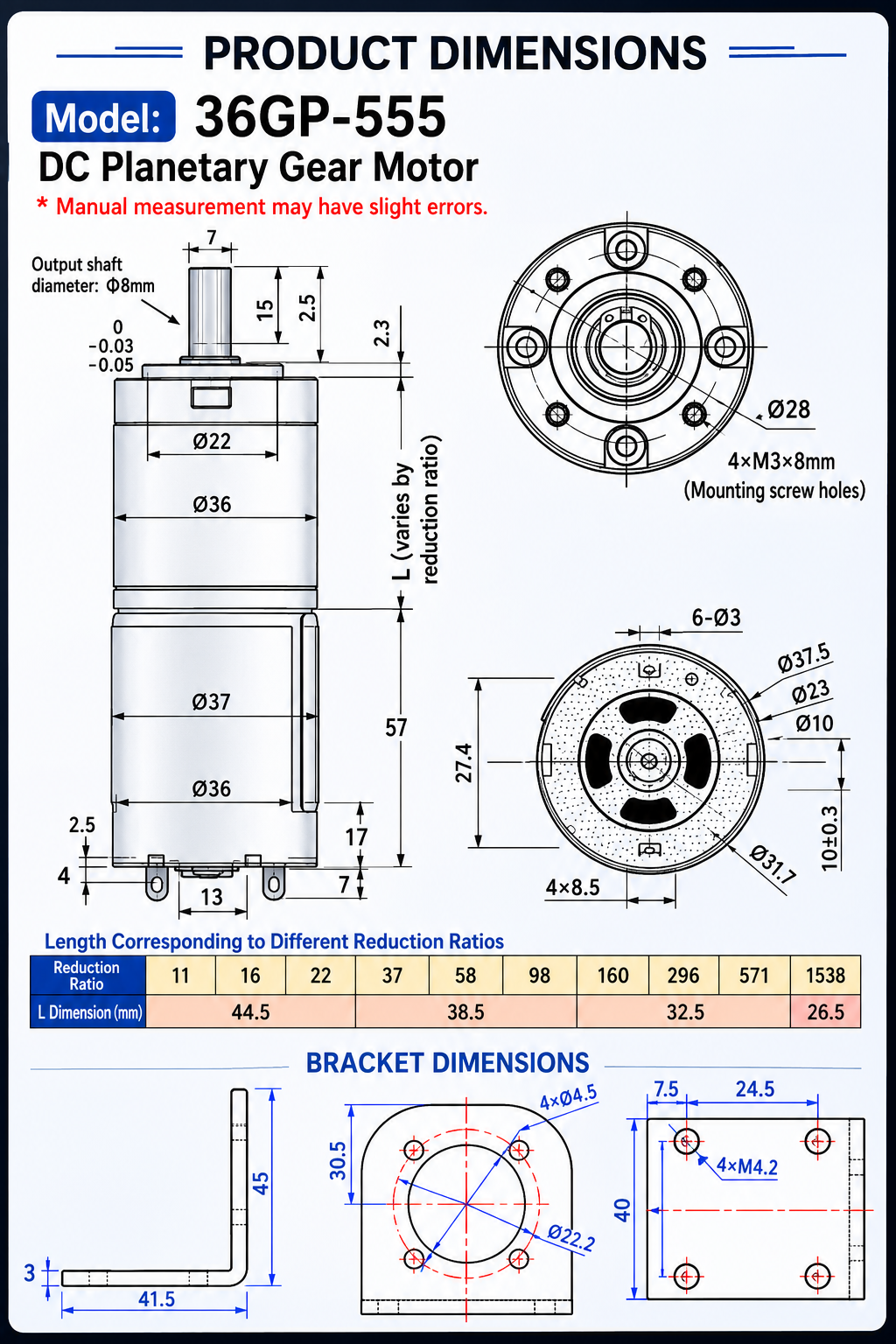

| Gearbox Diameter | 36mm |
| Motor Length | 57mm |
| Output Shaft Options | 6mm D Shaft / 8mm D Shaft |
| Output Shaft Length | 25mm |
| Rotation Direction | CW / CCW Reversible |
| Speed Control | PWM Supported |
| Mounting Hole | M3 |
| Operating Noise | Approx. 55dB |
Applications
- Robot drive systems
- AGV and AMR robots
- Smart automation equipment
- Conveyor mechanisms
- DIY robotics projects
- Industrial motion control
- Robot wheel drive systems
- Intelligent machinery
Package Includes
- 1 × 12V DC Planetary Gear Motor
Optional accessories sold separately:
- PWM speed controller
- Motor mounting bracket
- Power supply
- Shaft coupler
- Robot wheel
FAQ
What is the difference between the 6mm and 8mm shaft versions?
The main difference is output shaft diameter compatibility. Choose the shaft size that matches your coupler, wheel hub, pulley, or mechanical transmission system.
Is this motor suitable for robot wheel drive applications?
Yes. The 58RPM configuration provides balanced speed and torque for robot wheel systems and AGV drive applications.
Can this motor be speed controlled?
Yes. The motor supports PWM DC motor speed control.
Does this motor support forward and reverse rotation?
Yes. The motor is reversible by switching polarity.
